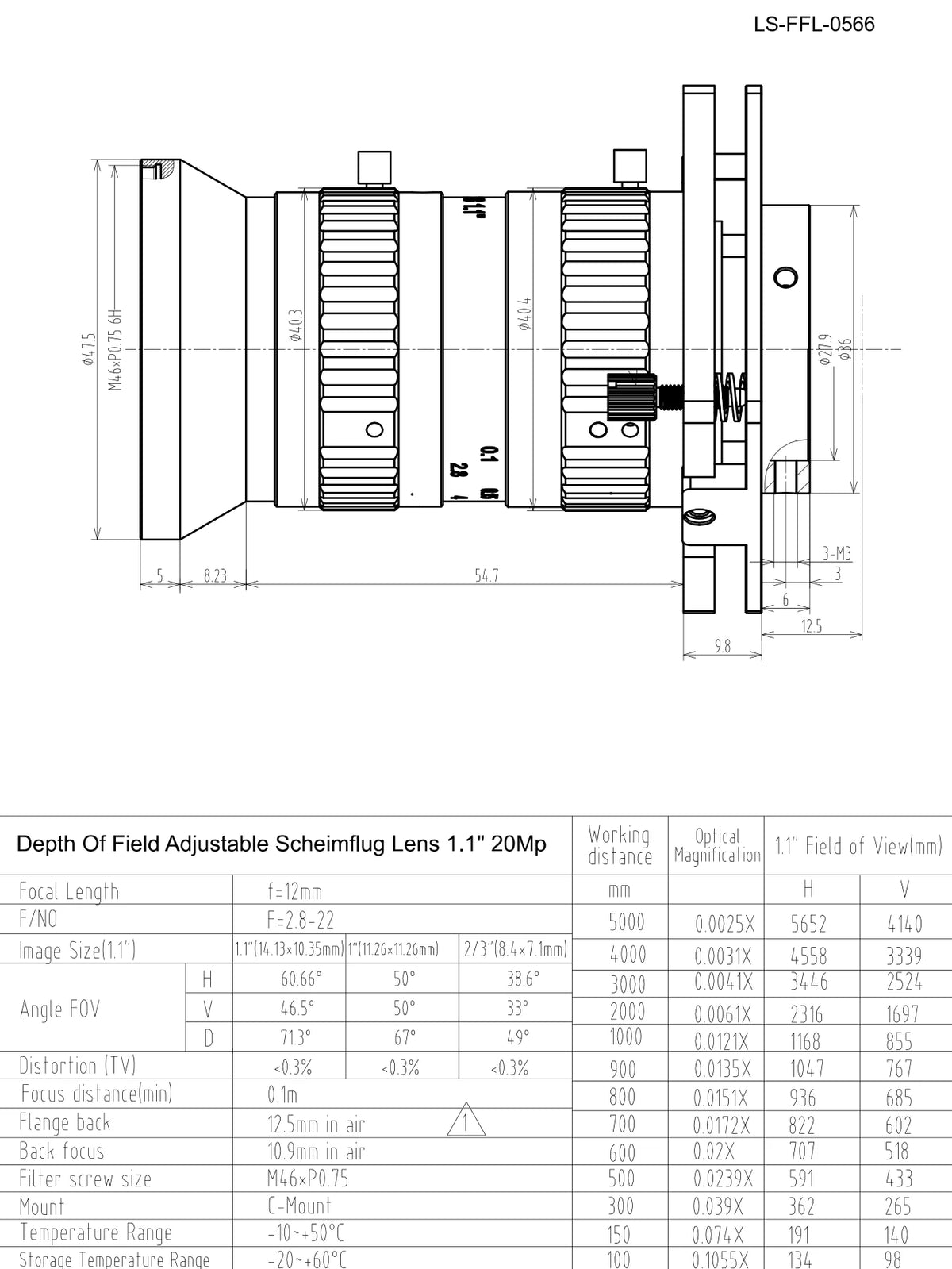

  • LS-FFL-0566 dimensions (mm)

Machine vision lenses

12 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8-22 (LS-FFL-0566)

Model LS-FFL-0566

  • Focal length12 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8-22
  • Resolution20 Megapixel
$669.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8-22 (LS-FFL-0566)LS-FFL-0566

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1.1", 20 MP, C-mount Machine Vision Lens. A 1.1" format, 20 megapixel C-mount lens with an adjustable Scheimpflug (tilt) angle mechanism that overcomes the depth-of-field limitation on inclined objects, for SMT, 3D detection and other Industry 4.0 applications. At a glance: focal length 12 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8-22; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0566
Format1.1"
Angle of view (1.1", HxVxD)60.66 x 46.5 x 71.3 deg
Angle of view (1", HxVxD)50 x 50 x 67 deg
Angle of view (2/3", HxVxD)38.6 x 33 x 49 deg
Flange back12.5 mm in air

Optics

Focal length12 mm
ApertureF2.8-22
TV distortion<0.5%
M.O.D.0.1 m
Back focus10.9 mm in air
Filter threadM46 x P0.75

Sensor and imaging

Resolution20 Megapixel

Environment and compliance

Operating temperature-10~+50 °C
Storage temperature-20~+60 °C

Mechanical

MountC
Shipping weight (estimated)0.52 kg

Photo shows a representative model of this series; see the specifications for this model.
