Machine vision lenses
25 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 25mm, 1.1" (pixel 2.74 µm), 20 Megapixel (LS-FFL-0549)
Model LS-FFL-0549
- Focal length25mm
- MountC-mount
- Sensor1.1"
- ApertureF2.4-16 Manual iris
- Resolution20 Megapixel
$689.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 25 mm F2.4-16 machine vision (FA) lens for 1.1" 20 megapixel sensors (2.74 µm, 17.5 mm image circle), covering 8K and 4K cameras, low distortion (-0.08% TV / -0.33% optical). At a glance: focal length 25mm; format 1.1" (pixel 2.74 µm); resolution 20 Megapixel; aperture F2.4-16 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0549 |
|---|---|
| Format | 1.1" (pixel 2.74 µm) |
| Angle of view (1.1") | 37.3 x 30.1 x 22.5 |
| CRA | 6.2° |
| Notes | AT430~680nm T≥85%; 12G Element |
Optics
| Focal length | 25mm |
|---|---|
| Image circle (max) | dia. 17.5mm |
| Aperture | F2.4-16 Manual iris |
| M.O.D. | 0.15m |
| Relative illumination | 76.5% ( WD=300mm F2.4 ) |
| Distortion | -0.08% ( TV ) ; -0.33% (Optical ) |
| Back focal length (optical) | 19.495mm , WD=800mm |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Mechanical

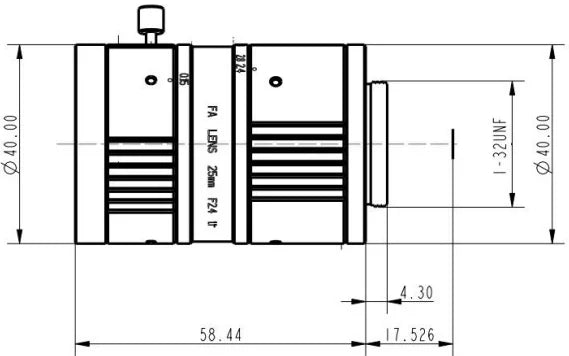

| Size | dia. 40 x 58.44mm |
|---|---|
| Filter size | M37 x P0.5-7H |
| Mount | C |
| Weight | 300g |
| Shipping weight (estimated) | 0.52 kg |
