1.1" machine vision lenses
  • 1.1" machine vision lenses

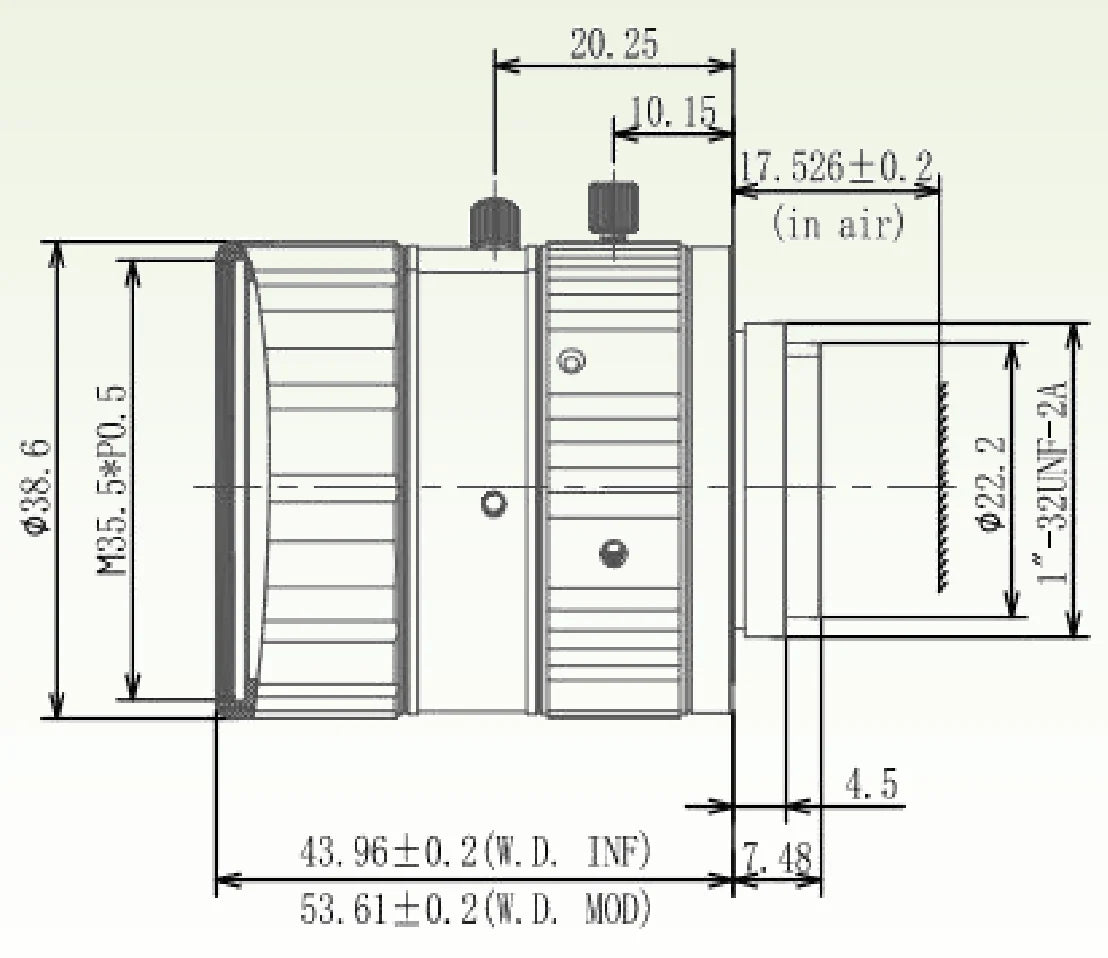

  • LS-FFL-0557 dimensions (mm)

Machine vision lenses

35 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8 Manual iris (LS-FFL-0557)

Model LS-FFL-0557

  • Focal length35 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 Manual iris
  • Resolution20 Megapixel
$709.00

Ships in 2-3 weeks

0.34 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8 Manual iris (LS-FFL-0557)LS-FFL-0557

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 35 mm F2.8 manual-iris machine vision (FA) lens for 1.1" sensors, rated 20 megapixel (8K and 4K), with <0.05% distortion. Covers 1.1", 3/4", 2/3", 1/1.8" and 1/2" cameras for automation, 3D and AOI. At a glance: focal length 35 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0557
Format1.1"
Angle of view (1.1")26.7 x 21.4 x 15.9 deg
Angle of view (1")24.1 x 19 x 15.1 deg
Angle of view (2/3")17 x 12 x 11 deg
B.F.L.12.84 mm

Optics

Focal length35 mm
Max image circledia. 17.6 mm
ApertureF2.8 Manual iris
M.O.D.0.2 m
Distortion<0.05%

Sensor and imaging

Resolution20 Megapixel

Mechanical

Sizedia. 38.6 x 43.96 mm
Filter sizeM35.5 x P0.5
MountC
Weight175 g
Shipping weight (estimated)0.34 kg

Other models in the 1.1" machine vision lenses (LS-FFL-S84) series

See all 39 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0566 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0544 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0545 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0546 16 mm, 1.1", 25 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0547 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0567 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0570 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0549 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0550 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0551 25 mm, 1.1", 25 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0552 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0568 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0571 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0554 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0555 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0556 35 mm, 1.1", 25 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0565 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0569 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0572 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0560 50 mm, 1.1", 20 MP, C-mount $739.00 Ships in 2-3 weeks View
LS-FFL-0561 50 mm, 1.1", 20 MP, C-mount $739.00 Ships in 2-3 weeks View
LS-FFL-0562 50 mm, 1.1", 25 MP, C-mount $739.00 Ships in 2-3 weeks View
LS-FFL-0563 50 mm, 1.1", 20 MP, C-mount $739.00 Ships in 2-3 weeks View
LS-FFL-0564 75 mm, 1.1", 20 MP, C-mount $779.00 Ships in 2-3 weeks View
