Machine vision lenses

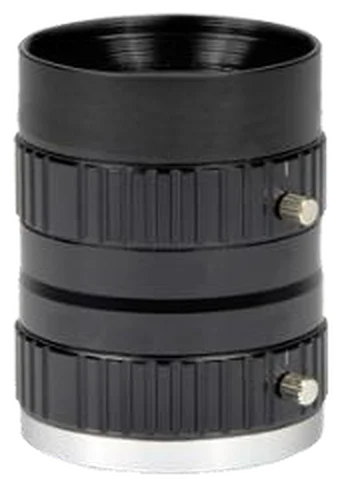

50 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0562)

Model LS-FFL-0562

Focal length50 mm
Magnification-0.0516X~-0.185X
MountC-mount
Sensor1.1"
ApertureF2.8
Resolution25 Megapixel

$739.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 50 mm F2.8 machine vision (FA) lens for 1.1" sensors, rated 25 megapixel (8K and 4K), with <0.1% distortion. The 1.1" format also covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification -0.0516X~-0.185X; focal length 50 mm; format 1.1"(14.1x10.35 mm); resolution 25 Megapixel; aperture F2.8.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0562
Format	1.1"(14.1x10.35 mm)
Angle of view (1.1")	19.8 x 16.2 x 13 ( 89x71x57 mm @0.3 m )
Angle of view (1")	18 x 14.7 x 12 ( 81x65x52 mm @0.3 m )
Angle of view (2/3")	12 x 11.6 x 9 ( 55.4x44.3x33.2 mm @0.3 m )
B.F.L.	11.85 mm (in air)

Optics

Focal length	50 mm
Aperture	F2.8
M.O.D.	0.3 m
Distortion (TV)	<0.1%
Magnification	-0.0516X~-0.185X
W.D. : magnification (FOV)	500 mm:0.106x (103x91 mm); 1000 mm:0.0516x (248x187 mm)
Working distance: magnification (FOV)	500 mm: 0.106x (103 x 91 mm); 1000 mm: 0.0516x (248 x 187 mm)

Sensor and imaging

Resolution	25 Megapixel

Mechanical

Filter size	M40.5 x P0.5

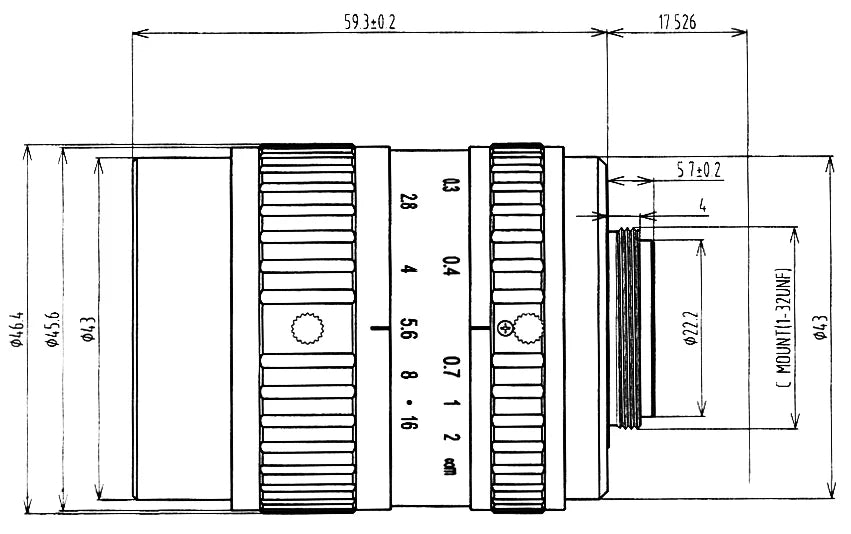

Size	dia. 46.4 x 59.3 mm
Mount	C
Weight	200 g
Shipping weight (estimated)	0.38 kg
