35 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0556)
  • 35 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0556)

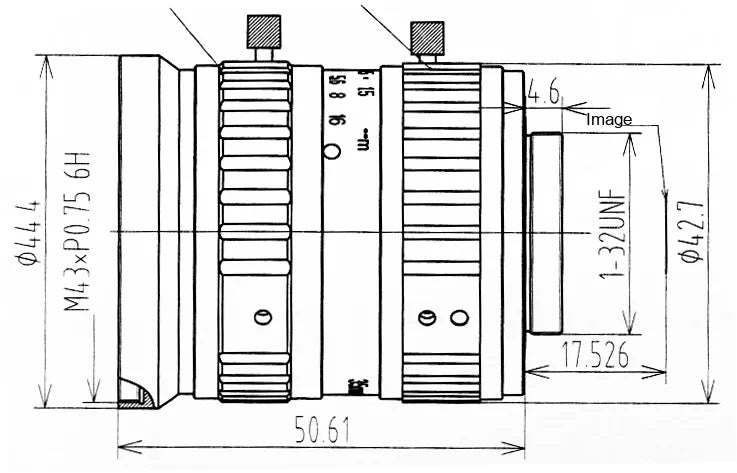

  • LS-FFL-0556 dimensions (mm)

Machine vision lenses

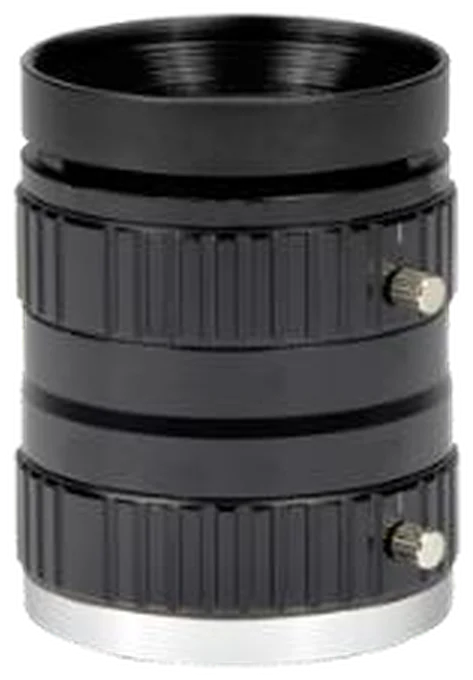

35 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0556)

Model LS-FFL-0556

  • Focal length35 mm
  • Magnification0.0069X~0.2313X
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8
  • Resolution25 Megapixel
$709.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0556)LS-FFL-0556

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 35 mm F2.8 machine vision (FA) lens for 1.1" sensors, rated 25 megapixel (8K and 4K), with <0.15% distortion. The 1.1" format also covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification 0.0069X~0.2313X; focal length 35 mm; format 1.1"(14.1x10.35 mm); resolution 25 Megapixel; aperture F2.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0556
Format1.1"(14.1x10.35 mm)
Angle of view (1.1")26.6 x 21.6 x 16 ( <0.15% distortion )
Angle of view (1")24.3 x 20 x 15 ( <0.1% distortion )
Angle of view (2/3")17 x 13.5 x 10.2 ( <0.05% distortion )
B.F.L.10.9 mm (in air)

Optics

Focal length35 mm
ApertureF2.8
M.O.D.0.15 m
Distortion (TV)<0.15%
Magnification0.0069X~0.2313X
W.D. : magnification (FOV)150 mm:0.2313x (60.9x45.6 mm); 1000 mm:0.0347x (406x304 mm)
Working distance: magnification (FOV)150 mm: 0.2313x (60.9 x 45.6 mm); 1000 mm: 0.0347x (406 x 304 mm)

Sensor and imaging

Resolution25 Megapixel

Mechanical

Filter sizeM43 x P0.75
Sizedia. 44.4 x 50.61 mm
MountC
Weight200 g
Shipping weight (estimated)0.38 kg
