75 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0564)
Model LS-FFL-0564
- Focal length75 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.4-F16
$779.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 75 mm 20 MP machine vision lens for 1.1" sensors (covers 1.1", 3/4", 2/3", 1/1.8", 1/2") with <0.03% TV / 0.05% optical distortion. At a glance: focal length 75 mm; format 1.1" (dia. 17.6 mm); aperture F2.4-F16; mount C; tv distortion 0.0316% / 0.0358% / 0.0525%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0564 |
|---|---|
| Format | 1.1" (dia. 17.6 mm) |
| Angle of view (1.1", DxHxV) | 11.04 x 8.86 x 6.41 deg @500 mm; 12.15 x 9.75 x 7.20 deg @1000 mm; 13.37 x 10.72 x 8.05 deg @inf. |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F2.4-F16 |
| Focus range | 500 mm - inf. |
| Optical distortion | 0.1040% / 0.1187% / 0.1774% (500 / 1000 mm / inf.) |
| TV distortion | 0.0316% / 0.0358% / 0.0525% |
| Relative illumination | 90.28% / 86.67% / 79.35% |
| Back focal length | 12.84 mm |
| Flange focal distance | 17.526 mm in air |
| Filter thread | M46 x 0.75 |
| Magnification | 0.1708x at 500 mm to 0.0601x at 1300 mm WD |
Environment and compliance
| Operating temperature | -20 to +60 C |
|---|---|
| Storage temperature | -20 to +60 C |
Mechanical
| Object dimension (DxHxV) | 103.04 x 82.44 x 61.83 mm @500 mm; 222.22 x 177.78 x 133.33 mm @1000 mm |
|---|---|
| Mount | C |

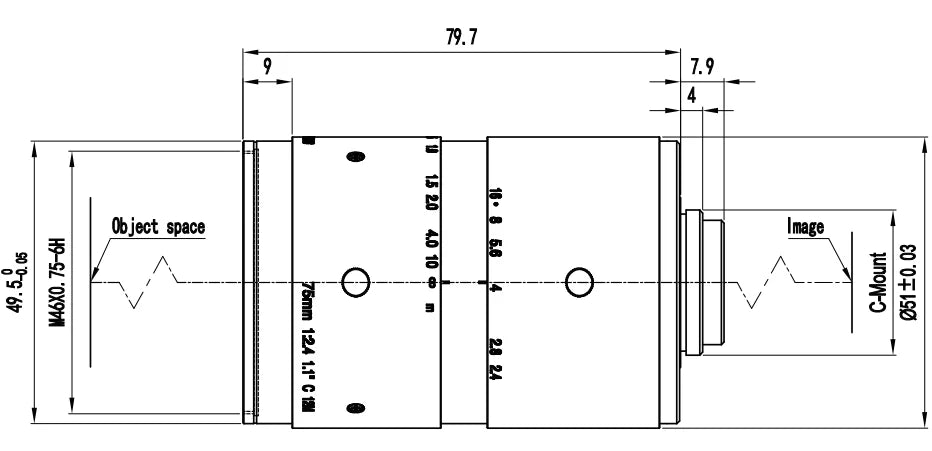

| Size | dia. 51 x 79.7 mm |
| Shipping weight (estimated) | 0.52 kg |
