Machine vision lenses

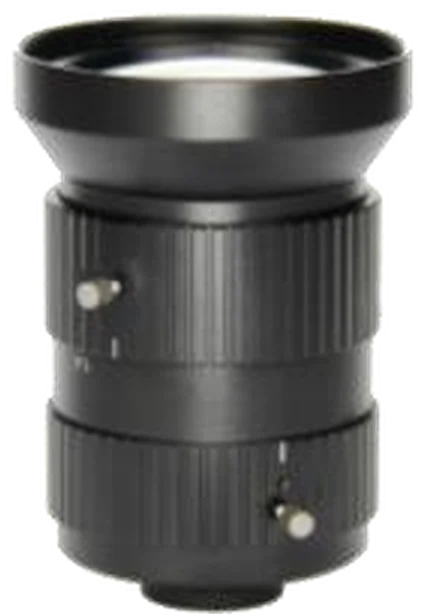

16 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0546)

Model LS-FFL-0546

Focal length16 mm
Magnification0.003X~0.132X
MountC-mount
Sensor1.1"
ApertureF2.8
Resolution25 Megapixel

$679.00

Ships in 2-3 weeks

0.46 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

16 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 16 mm F2.8 machine vision (FA) lens for 1.1" sensors, rated 25 megapixel (8K and 4K), with <0.15% distortion. The 1.1" format also covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification 0.003X~0.132X; focal length 16 mm; format 1.1"(14.1x10.35 mm); resolution 25 Megapixel; aperture F2.8.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0546
Format	1.1"(14.1x10.35 mm)
Angle of view (1.2")	55.6 x 45.8 x 35.3 (192.4x144.3 mm @0.2 m)
Angle of view (1")	51.2 x 42.1 x 32.2 (<0.1%)
Angle of view (2/3")	36.6 x 29.7 x 22.5 ( <0.05%)
B.F.L.	13.2 mm (in air)
Angle of view (1.1")	55.6 x 45.8 x 35.3 deg (192.4 x 144.3 mm @0.2 m)

Optics

Focal length	16 mm
Aperture	F2.8
M.O.D.	0.1 m
Distortion (TV)	<0.15%
Magnification	0.003X~0.132X
W.D. : magnification (FOV)	500 mm:0.032x (444.7 x 333.5); 5000 mm:0.003x (4221x3166)
Working distance: magnification (FOV)	500 mm: 0.032x (444.7 x 333.5); 5000 mm: 0.003x (4221 x 3166)

Sensor and imaging

Resolution	25 Megapixel

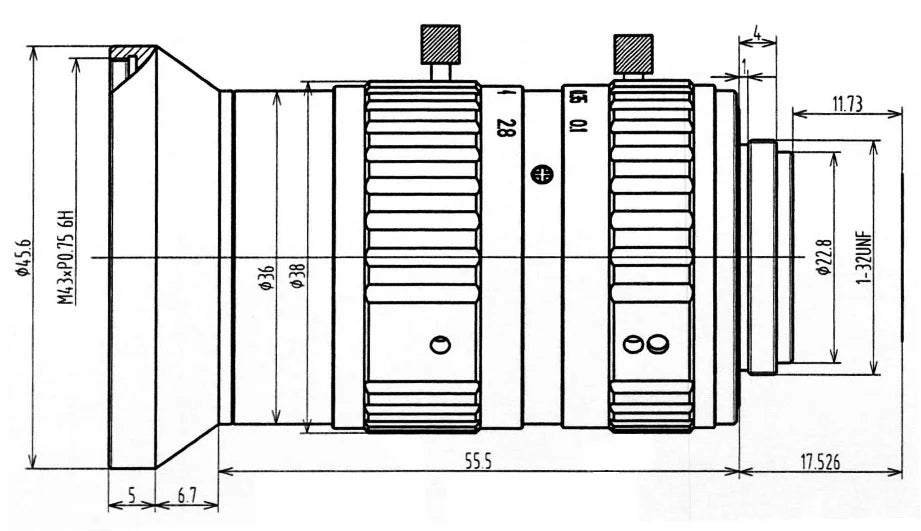

Mechanical

Filter size	M43 x P0.75
Size	dia. 45.6 x 69.2 mm
Mount	C
Weight	255 g
Shipping weight (estimated)	0.46 kg
