8 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0536)
  • 8 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0536)

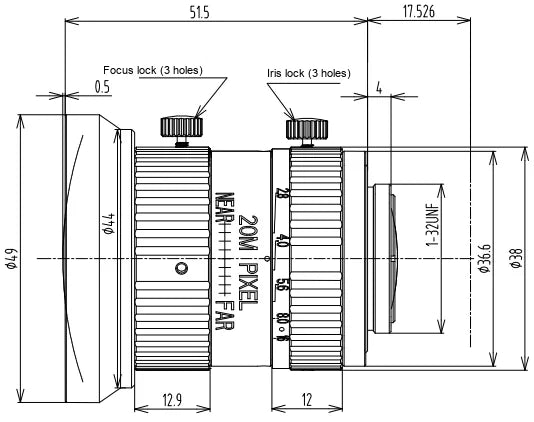

  • LS-FFL-0536 dimensions (mm)

Machine vision lenses

8 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0536)

Model LS-FFL-0536

  • Focal length8 mm
  • Magnification0.0017x-0.066x (5000-100 mm WD)
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8-16
  • Resolution20 MP
$669.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0536)LS-FFL-0536

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 8 mm wide-angle 20 MP machine vision lens for 1.1" sensors (covers 1", 3/4", 2/3", 1/1.8", 1/2") with <1.5% TV distortion and magnification 0.0017x-0.066x. At a glance: magnification 0.0017x-0.066x (5000-100 mm WD); focal length 8 mm; format 1.1" (14.1 x 10.6 mm); resolution 20 MP; aperture F2.8-16.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0536
Format1.1" (14.1 x 10.6 mm)
Angle of view (1.1", HxVxD)82 x 65.7 x 94 deg
Angle of view (1", HxVxD)76.3 x 60.3 x 89 deg
Angle of view (2/3", HxVxD)55.9 x 43 x 67.7 deg
Flange back17.526 mm in air
Coating range420-1150 nm
Front / rear effective dia.39.8 / 15.6 mm

Optics

Focal length8 mm
ApertureF2.8-16
TV distortion<1.5% (1.1"), <1% (1"), <0.8% (2/3")
M.O.D.0.1 m
Back focus12.4 mm (min)
Magnification0.0017x-0.066x (5000-100 mm WD)

Sensor and imaging

Resolution20 MP

Environment and compliance

Operating temperature-10 to +70 C
Storage temperature-20 to +80 C

Mechanical

Object dimension at 100 mm (1.1", HxVxD)213.3 x 156.4 x 268.6 mm
MountC
Sizedia. 49 x 51.5 mm
Shipping weight (estimated)0.52 kg
