Machine vision lenses

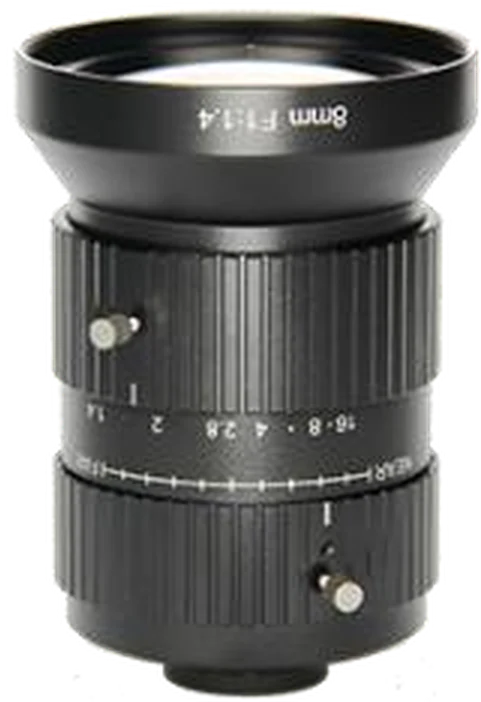

8 mm, 1.1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0535)
Model LS-FFL-0535
- Focal length8 mm
- Magnification-0.01x ~ 0.064x
- MountC-mount
- Sensor1.1"
- ApertureF1.4 Manual Iris
- Resolution12 MP
$429.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 1.1", 12 MP, C-mount Machine Vision Lens. 8 mm, 1.1" 12 MP C-mount machine vision / FA lens with F1.4 manual iris and <5% distortion. Covers 1", 2/3", 1/1.8" and 1/2" cameras for phone size tests, battery tests, cap checks and ITS. At a glance: magnification -0.01x ~ 0.064x; focal length 8 mm; format 1.1"; resolution 12 MP; aperture F1.4 Manual Iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0535 |
|---|---|
| Format | 1.1" |
| Angle of view (1.1", DxHxV) | 98 x 84 x 68 deg |
| Angle of view (1", DxHxV) | 90 x 77 x 62 deg |
| Angle of view (2/3", DxHxV) | 69 x 57.6 x 45 deg |
Optics
| Magnification | -0.01x ~ 0.064x |
|---|---|
| Focal length | 8 mm |
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.1 m |
| Distortion | <5% |
| Back focal length | 10.35 mm |
Sensor and imaging
| Resolution | 12 MP |
|---|

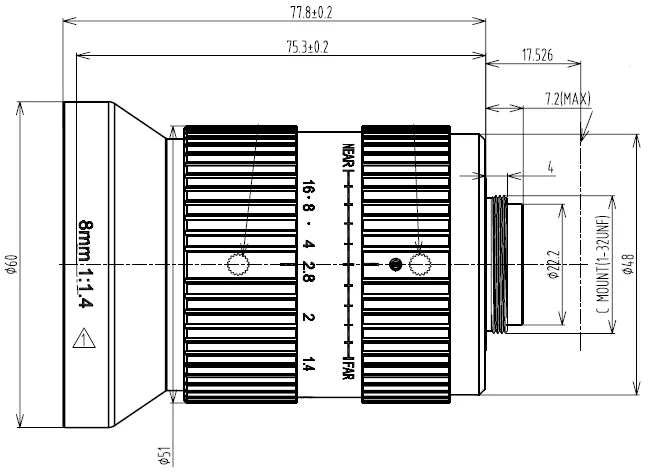

Mechanical
| Size | dia. 60 x 77.8 mm |
|---|---|
| Mount | C |
| Weight | 200 g |
| Optical total length | 95.3 mm |
| Shipping weight (estimated) | 0.38 kg |
Other models in the 1.1" machine vision lenses (LS-FFL-S84) series
See all 39 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0534 | 6 mm, 1.1", 12 MP, C-mount | $419.00 | Ships in 2-3 weeks | View |
| LS-FFL-0538 | 12 mm, 1.1", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0548 | 25 mm, 1.1", 10 MP, C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-0553 | 35 mm, 1.1", 10 MP, C-mount | $479.00 | Ships in 2-3 weeks | View |
| LS-FFL-0558 | 50 mm, 1.1", 10 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0559 | 50 mm, 1.1", 10 MP | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0536 | 8 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0537 | 8 mm, 1.1", 25 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0539 | 12 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0540 | 12 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0541 | 12 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0542 | 12 mm, 1.1", 25 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0543 | 12 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0566 | 12 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0544 | 16 mm, 1.1", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0545 | 16 mm, 1.1", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0546 | 16 mm, 1.1", 25 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0547 | 16 mm, 1.1", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0567 | 16 mm, 1.1", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0570 | 16 mm, 1.1", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0549 | 25 mm, 1.1", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0550 | 25 mm, 1.1", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0551 | 25 mm, 1.1", 25 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0552 | 25 mm, 1.1", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
