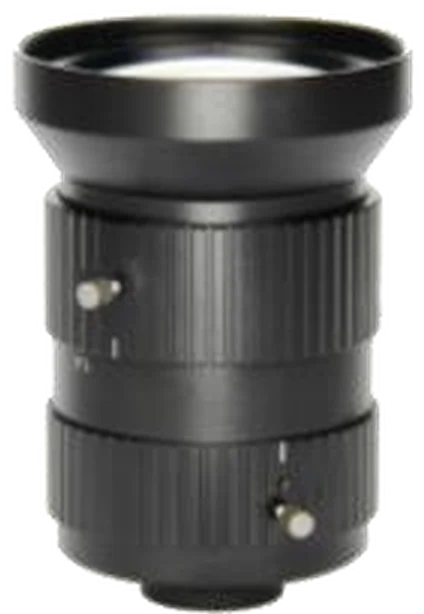

12 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0542)
  • 12 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0542)

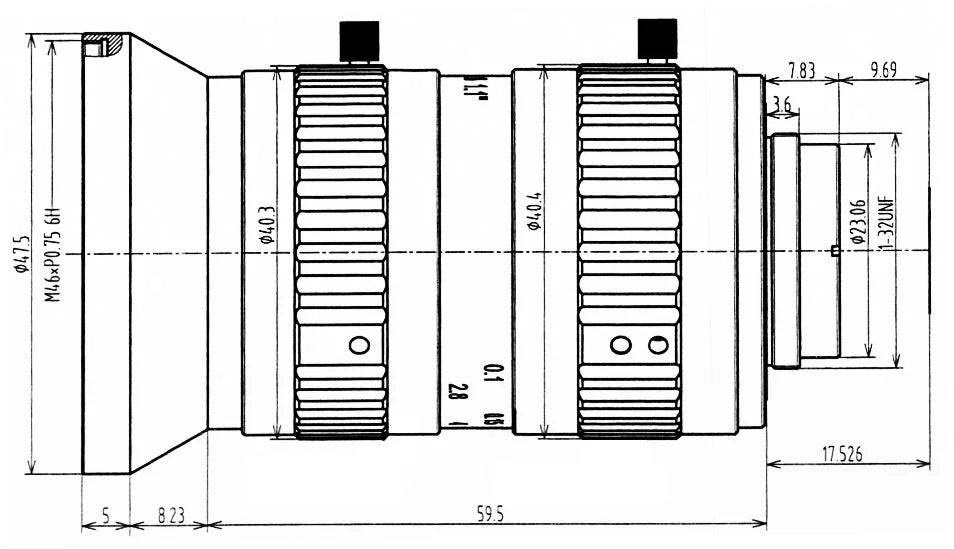

  • LS-FFL-0542 dimensions (mm)

Machine vision lenses

12 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0542)

Model LS-FFL-0542

  • Focal length12 mm
  • Magnification0.0025X~0.1055X
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8
  • Resolution25 Megapixel
$669.00

Ships in 2-3 weeks

0.46 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0542)LS-FFL-0542

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 12 mm F2.8 machine vision (FA) lens for 1.1" sensors, rated 25 megapixel (8K and 4K), with <0.3% distortion. The 1.1" format also covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification 0.0025X~0.1055X; focal length 12 mm; format 1.1"(14.1x10.35 mm); resolution 25 Megapixel; aperture F2.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0542
Format1.1"(14.1x10.35 mm)
Angle of view (1.1")71.3 x 60.7 x 46.5 (134 x 98 mm @0.1 m)
Angle of view (1")67 x 50 x 40 deg
Angle of view (2/3")49 x 39 x 33 deg
B.F.L.10.9 mm (in air)

Optics

Focal length12 mm
ApertureF2.8
M.O.D.0.1 m
Distortion (TV)<0.3%
Magnification0.0025X~0.1055X
W.D. : magnification (FOV)500 mm:0.0239x (591x433); 5000 mm:0.0025x (5652x4120)
Working distance: magnification (FOV)500 mm: 0.0239x (591 x 433); 5000 mm: 0.0025x (5652 x 4120)

Sensor and imaging

Resolution25 Megapixel

Mechanical

Filter sizeM46 x P0.75
Sizedia. 47.3 x 59.5 mm
MountC
Weight255 g
Shipping weight (estimated)0.46 kg

Other models in the 1.1" machine vision lenses (LS-FFL-S84) series

See all 39 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0534 6 mm, 1.1", 12 MP, C-mount $419.00 Ships in 2-3 weeks View
LS-FFL-0535 8 mm, 1.1", 12 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0538 12 mm, 1.1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0548 25 mm, 1.1", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0553 35 mm, 1.1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0558 50 mm, 1.1", 10 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0559 50 mm, 1.1", 10 MP $499.00 Ships in 2-3 weeks View
LS-FFL-0536 8 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0537 8 mm, 1.1", 25 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0539 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0540 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0541 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0543 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0566 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0544 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0545 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0546 16 mm, 1.1", 25 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0547 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0567 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0570 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0549 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0550 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0551 25 mm, 1.1", 25 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0552 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
