Machine vision lenses

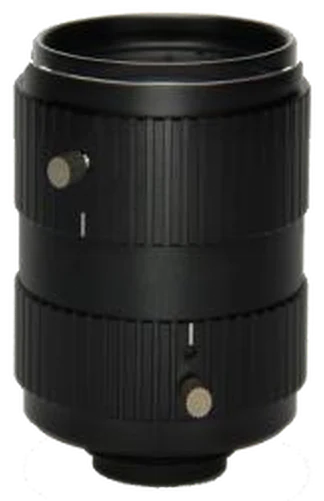

25 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0551)

Model LS-FFL-0551

Focal length25 mm
Magnification0.005X~0.24X
MountC-mount
Sensor1.1"
ApertureF2.8
Resolution25 Megapixel

$689.00

Ships in 2-3 weeks

0.46 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 25 mm F2.8 machine vision (FA) lens for 1.1" sensors, rated 25 megapixel (8K and 4K), with <0.1% distortion. The 1.1" format also covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification 0.005X~0.24X; focal length 25 mm; format 1.1"(14.1x10.35 mm); resolution 25 Megapixel; aperture F2.8.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0551
Format	1.1"(14.1x10.35 mm)
Angle of view (1.1")	39 x 32 x 24.2 (320x256x193 mm @0.45 m)
Angle of view (1")	35.5 x 29 x 22.1 ( 291x233x174 mm @0.45 m)
Angle of view (2/3")	25.1 x 20.4 x 15.6 (200x160x120 mm @0.45 m)
B.F.L.	13.5 mm (in air)

Optics

Focal length	25 mm
Aperture	F2.8
M.O.D.	0.1 m
Distortion (TV)	<0.1%
Magnification	0.005X~0.24X
W.D. : magnification (FOV)	200 mm:0.123x (115x86.5 mm); 1000 mm:0.0249x (566x426 mm)
Working distance: magnification (FOV)	200 mm: 0.123x (115 x 86.5 mm); 1000 mm: 0.0249x (566 x 426 mm)

Sensor and imaging

Resolution	25 Megapixel

Mechanical

Filter size	M30.5 x P0.5

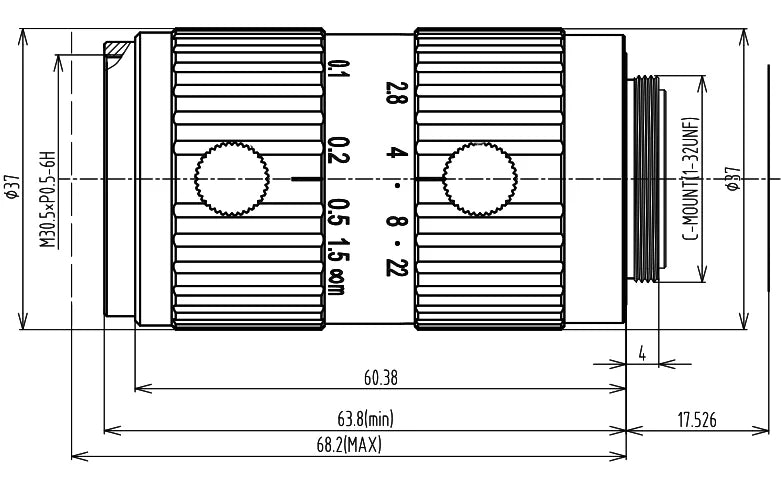

Size	dia. 37 x 63.8 mm
Mount	C
Weight	255 g
Shipping weight (estimated)	0.46 kg
