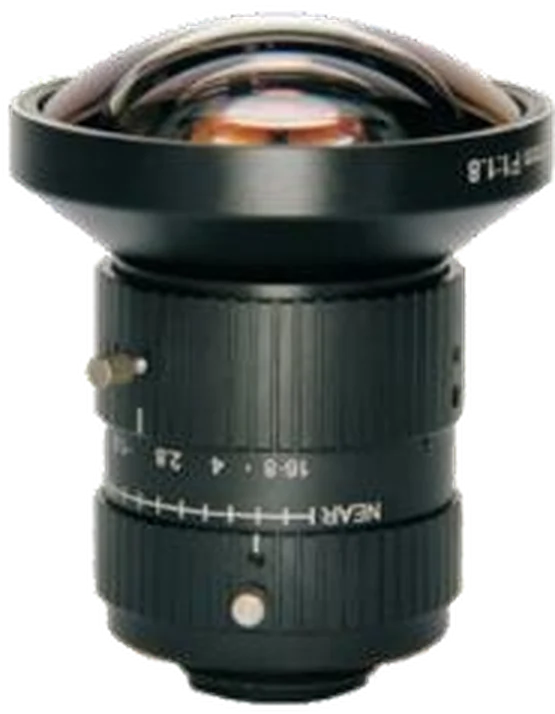

6 mm, 1.1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0534)
  • 6 mm, 1.1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0534)

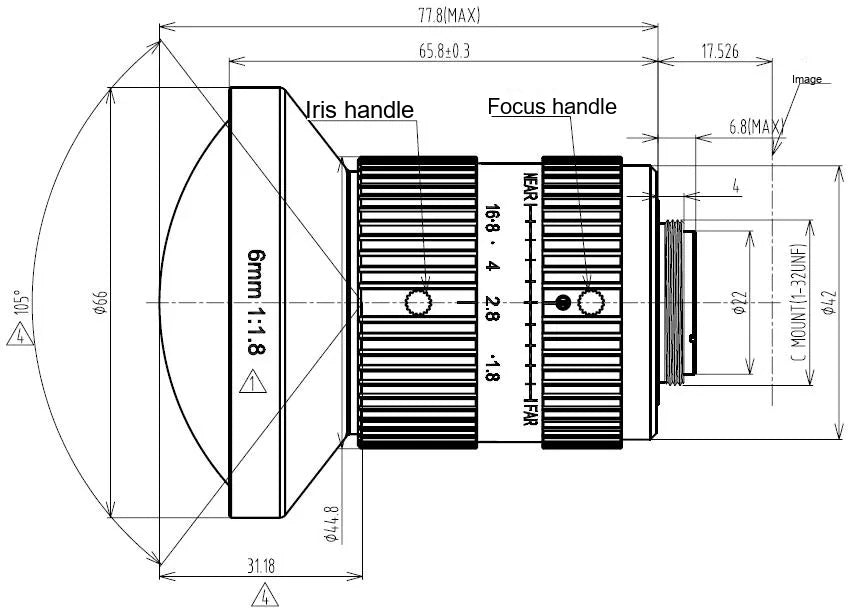

  • LS-FFL-0534 dimensions (mm)

Machine vision lenses

6 mm, 1.1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0534)

Model LS-FFL-0534

  • Focal length6.0 mm
  • Magnification-0.007x ~ 0.049x
  • MountC-mount
  • Sensor1.1"
  • ApertureF1.8 Manual Iris
  • Resolution12 MP
$419.00

Ships in 2-3 weeks

0.39 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6 mm, 1.1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0534)LS-FFL-0534

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6 mm, 1.1", 12 MP, C-mount Machine Vision Lens. 6 mm, 1.1" 12 MP C-mount machine vision / FA lens with F1.8 manual iris and <2.3% distortion. Covers 1", 2/3", 1/1.8" and 1/2" cameras for automation, SMT, AOI, colour sorting and measurement. At a glance: magnification -0.007x ~ 0.049x; focal length 6.0 mm; format 1.1"; resolution 12 MP; aperture F1.8 Manual Iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0534
Format1.1"
Angle of view (1.1", DxHxV)118 x 105 x 86 deg
Angle of view (1", DxHxV)107.5 x 95.4 x 78.4 deg
Angle of view (2/3", DxHxV)86.6 x 73.3 x 57.5 deg

Optics

Magnification-0.007x ~ 0.049x
Focal length6.0 mm
ApertureF1.8 Manual Iris
M.O.D.0.1 m
Distortion<2.3%
Relative illumination45%
Back focal length13.5 mm

Sensor and imaging

Resolution12 MP

Mechanical

Sizedia. 66 x 84.6 mm
MountC
Weight210 g
Optical total length95.3 mm
Shipping weight (estimated)0.39 kg

Photo shows a representative model of this series; see the specifications for this model.
