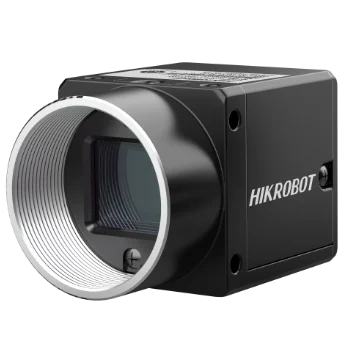

Hikrobot XAS2000-19UM 20 MP 1" CMOS USB3.0 industrial area scan camera
Model XAS2000-19UMHikrobot
- Resolution5472 × 3648
- SensorCMOS, rolling shutter
- InterfaceUSB 3.0, compatible with USB 2.0
- Speed19.2 fps@5472×3648 Mono 8
- Lens mountC-mount
- Mono / colourMono
$1,629.00
Ships in 2-3 weeks
0.21 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot XAS2000-19UM 20 MP 1" CMOS USB3.0 industrial area scan camera. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI with horizontal and vertical mirroring
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | XAS2000-19UM |
|---|---|
| Brand | Hikrobot |
| Compatibility | USB3 Vision, GenlCam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm×2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Max. frame rate | 19.2 fps@5472×3648 Mono 8 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Gain | 0 dB ~24 dB |
| Exposure time | 14 μs ~ 0.86 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-touch exposure, Rolling Shutter supported, Global Reset function |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | USB 3.0, compatible with USB 2.0 |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated IO (Line 2) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Operating temperature: -30 to 60℃, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9~24 VDC, USB power supported |
|---|---|
| Power consumption | 1.6 W @ 5 VDC (USB 3.0 powered) |
Mechanical
| Lens mount | C-Mount |
|---|---|

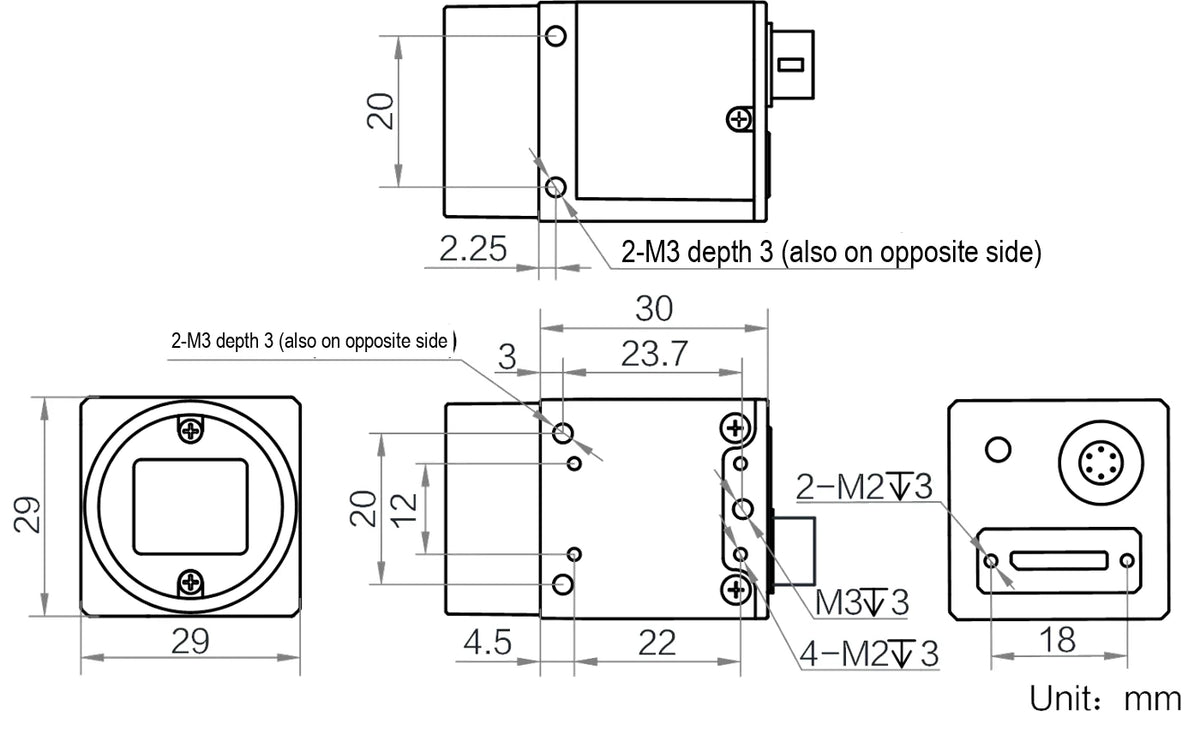

| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 80 g (0.2 lb.) |
| Shipping weight (estimated) | 0.21 kg |
