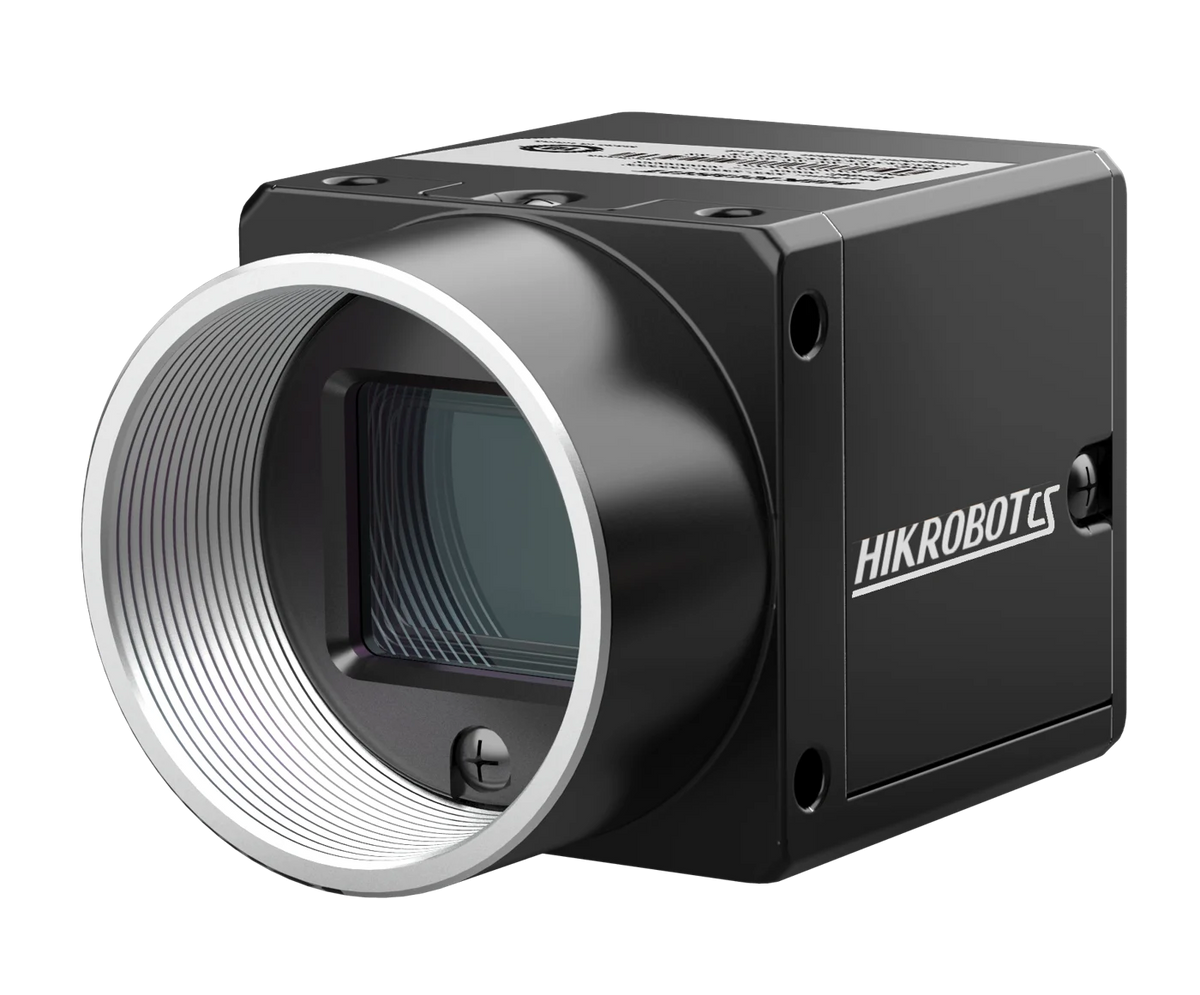

Hikrobot MV-CS240-90UC 24 MP USB3.0 area scan camera, GMAX2424, Gen 2, Color

Model MV-CS240-90UCHikrobot

Resolution6016 × 4096
SensorCMOS, rolling shutter
InterfaceUSB3.0, compatible with USB2.0
Speed15 fps @6016 × 4096 Bayer GB 8
Lens mountC-mount
Mono / colourColor

$1,629.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS240-90UC 24 MP USB3.0 area scan camera, GMAX2424, Gen 2, Color. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI with horizontal and vertical mirroring

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS240-90UC
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Sensor model	GMAX2424
Pixel size	2.4 μm × 2.4 μm
Sensor size	1.1”
Resolution	6016 × 4096
Max. frame rate	15 fps @6016 × 4096 Bayer GB 8
Dynamic range	72 dB
SNR	41 dB
Gain	0 dB ~ 24 dB
Exposure time	32 μs ~ 10 sec
Exposure mode	Auto exposure supported, Manual exposure, One-touch exposure and other modes, Rolling and Global Reset supported
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422_YUYV_Packed, YUV422Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Operating temperature -30°C to 50°C, Storage temperature -30°C to 80°C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64 bits, Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	3.4 W @ 5 VDC (USB 3.0 powered)

Mechanical

Lens mount	C-Mount

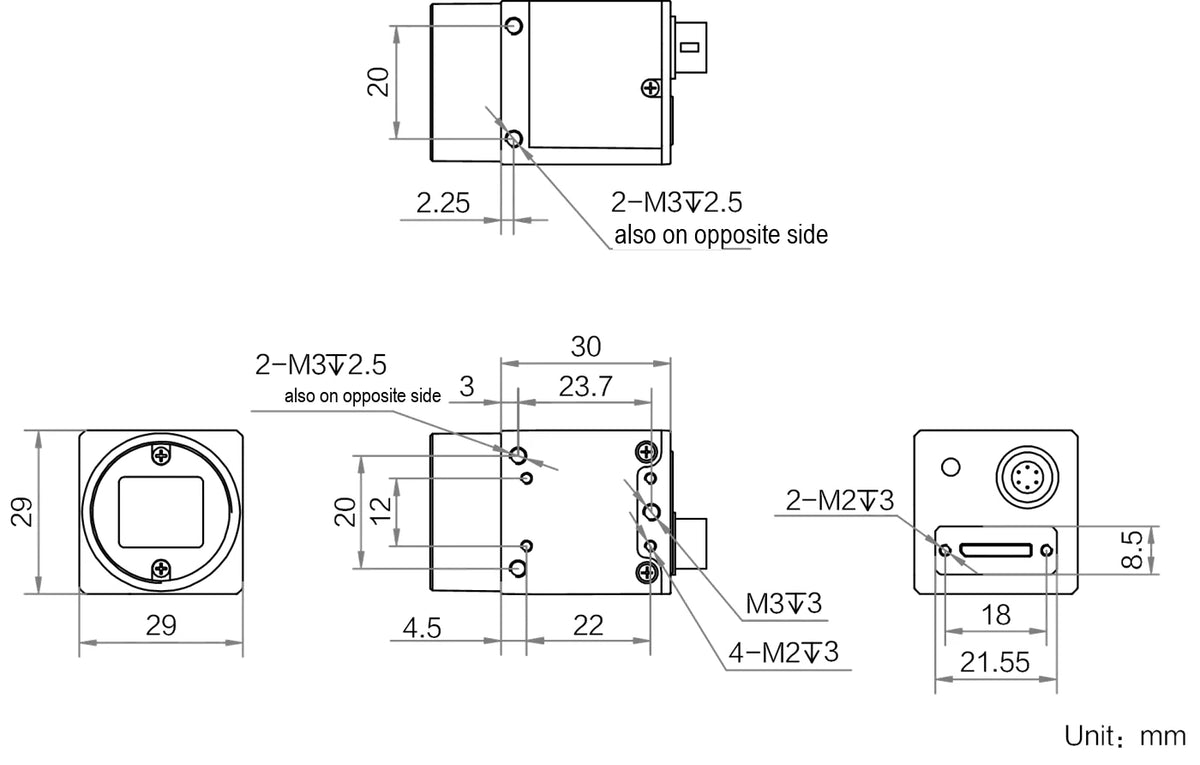

Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more
Custom ROI with horizontal and vertical mirroring
Supports hardware trigger, software trigger and free-run modes
New-generation housing design with four-side mounting
Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms
