Hikrobot XXV-016C-XIU 1.6 MP USB3.0 area scan camera, Color

Model XXV-016C-XIUHikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed249.1 fps @1440 × 1080 Bayer RG 8
Lens mountC-mount
Mono / colourColor

$479.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot XXV-016C-XIU 1.6 MP USB3.0 area scan camera, Color. New hardware platform with optimized logic resources for greatly reduced power consumption Feature-rich: Sequencer, contrast, white balance, Gamma and more

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	XXV-016C-XIU
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9”
Resolution	1440 × 1080
Max. frame rate	249.1 fps @1440 × 1080 Bayer RG 8
Dynamic range	70.8 dB
SNR	39.8 dB
Gain	0 dB ~ 17 dB
Exposure time	Ultra-short exposure mode: 1 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8 Bayer RG 8/10/10Packed/12/12Packed YUV422_YUYV_Packed, YUV422Packed RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 1.7 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	C-Mount

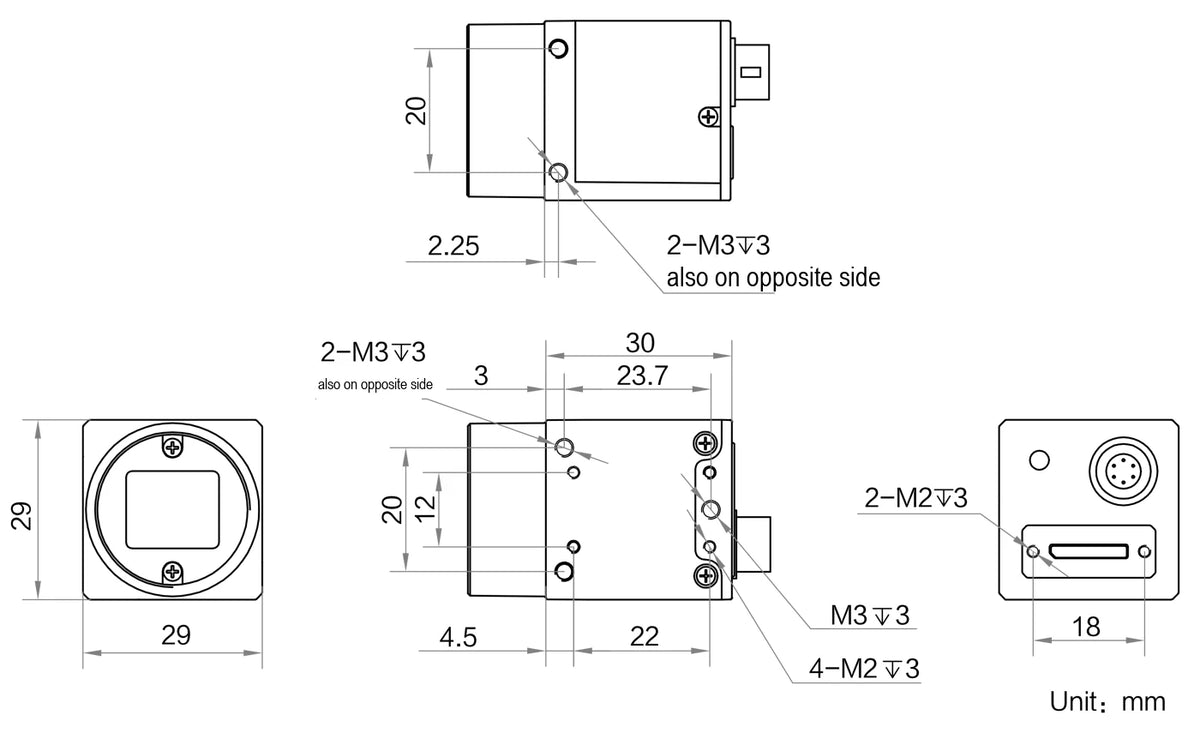

Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Datasheet (PDF, Chinese)XXV-016C-XIU · 613 KB

Features

New hardware platform with optimized logic resources for greatly reduced power consumption
Feature-rich: Sequencer, contrast, white balance, Gamma and more
Supports hardware trigger, software trigger and free-run modes
ROI for higher frame rates; image mirroring
New-generation housing design with four-side mounting
Compliant with the USB3 Vision protocol and GenICam standard for seamless connection to third-party software platforms
