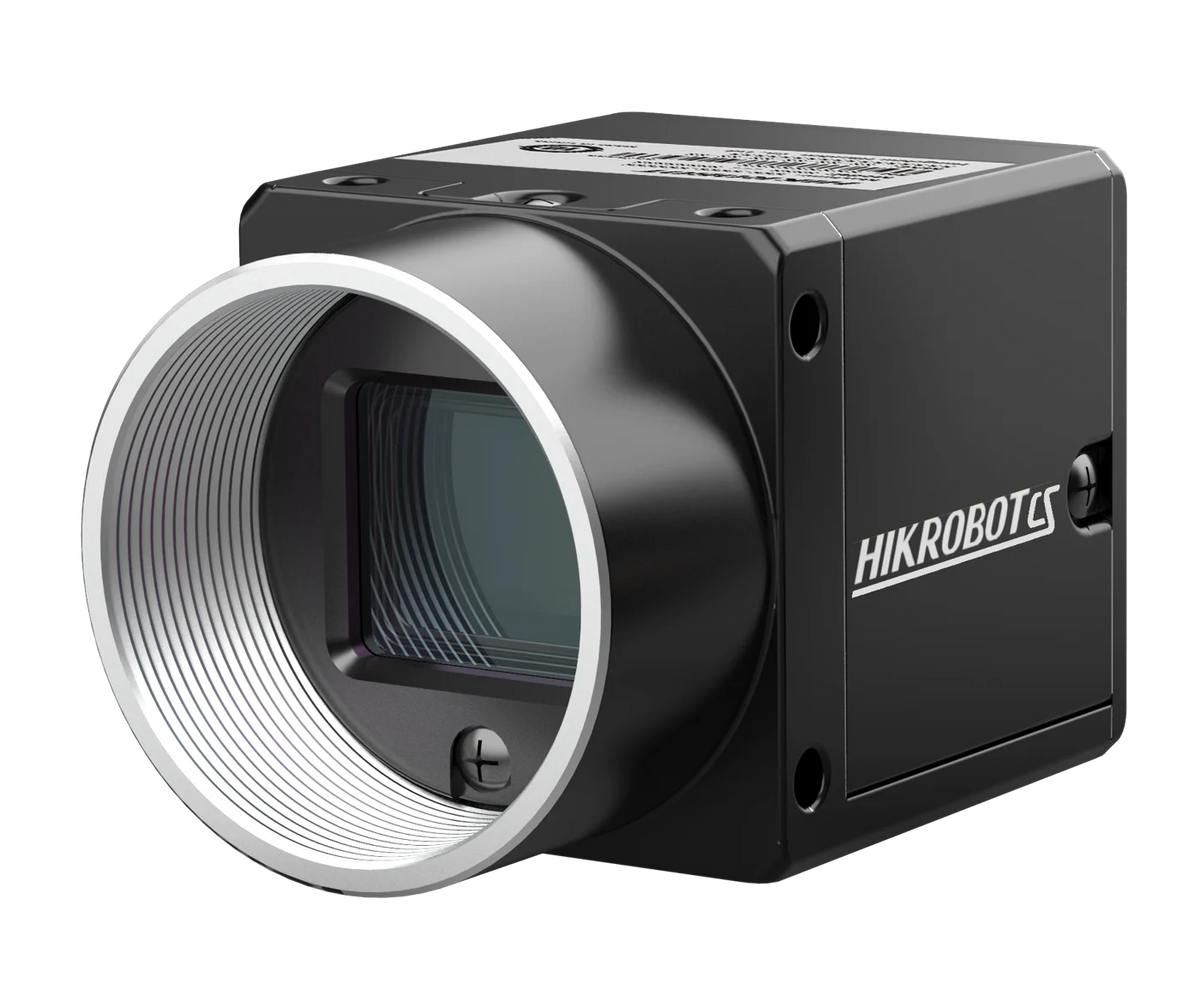

Hikrobot MV-CS020-60UC V5 2MP Area Scan Camera, USB3.0, V5, Color

Area scan cameras

Hikrobot MV-CS013-80UM 1.3MP Area Scan Camera, USB3.0, SS, 2nd Gen., Mono

Model MV-CS013-80UMHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed240.4 fps @ 1280 × 1024 Mono 8
Lens mountC-mount
Mono / colourMono

$439.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS013-80UM 1.3MP Area Scan Camera, USB3.0, SS, 2nd Gen., Mono. Adopts brand new design to reduce power consumption. Supports auto and manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS013-80UM
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	SS
Pixel size	4.0 μm × 4.0 μm
Sensor size	1/2.7"
Resolution	1280 × 1024
Max. frame rate	240.4 fps @ 1280 × 1024 Mono 8
Dynamic range	57 dB
SNR	38 dB
Gain	0 dB to 20 dB
Exposure time	30 μs to 1 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB power supply
Power consumption	Typ. 1.3 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount

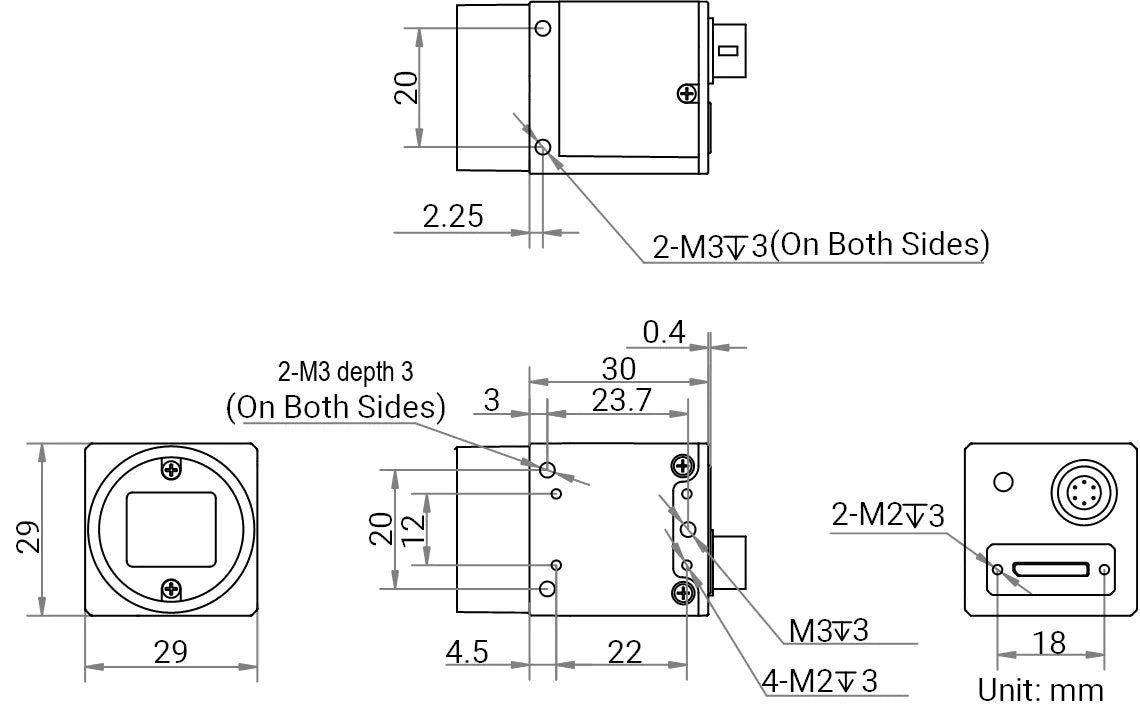

Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto and manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
