Area scan cameras

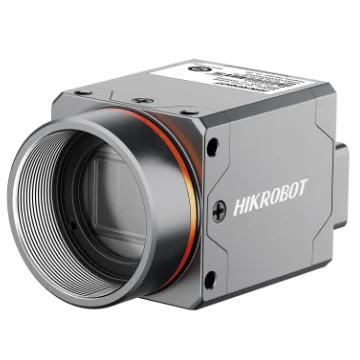

CT Series XoCLink Area Scan Cameras
- 16 models
- from $819.00
- Series HIK-CT-XOC
The CT Series XoCLink Area Scan Cameras is a range of 16 area scan cameras from Hikrobot, from $819.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 5 MP, 2/3", XoCLink, Color, 5 MP, 2/3", XoCLink, Mono, 5 MP, XoCLink, Color, 5 MP, XoCLink, Mono, 12.3 MP, 1.1", XoCLink, Color, 12.3 MP, 1.1", XoCLink, Mono, 12.3 MP, XoCLink, Color, 12.3 MP, XoCLink, Mono, 20 MP, 1", XoCLink, Color, 20 MP, 1", XoCLink, Mono, 20 MP, XoCLink, Color, 20 MP, XoCLink, Mono, 26.2 MP, 1.1", XoCLink, Color, 26.2 MP, 1.1", XoCLink, Mono
- Interface
- XoCLink
- Resolution
- 5 MP, 12 MP, 16-25 MP, 29 MP +
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 2/3", 1", 1.1" - 1.2"
Features
- Adopts compact and lightweight design with flexible mounting options, applicable to high-speed motion scenes.
- Low power consumption design reduces heat flux density, resulting in low temperature drift.
- Single-cable PoC enables power supply, control, and data transmission, with a transmission distance of up to 15 meters.
- Isolated ground design ensures enhanced immunity to interference.
- Smaller, lighter and flexible to install, for high-speed camera motion applications
- Low-power design greatly reduces heat flux density at the camera for lower temperature drift
- PoC: power, control and data over a single cable, up to 15 m
- Fully isolated ground for stronger interference resistance
All 16 models in the CT Series XoCLink Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CT3CA0050/G/C/NN | 5 MP, 2/3", XoCLink, Color | 2448 × 2048 | 80 fps @ 2448 × 2048 Bayer GR 8 | 2/3" | $819.00 | View |
| MV-CT3MA0050/G/C/NN | 5 MP, 2/3", XoCLink, Mono | 2448 × 2048 | 80 fps @ 2448 × 2048 Mono 8 | 2/3" | $819.00 | View |
| MV-CT050G-80AM01-MINI-C | 5 MP, XoCLink, Mono | 2448 × 2048 | 80 fps@2448 × 2048 Mono 8 | 2/3” | $819.00 | View |
| MV-CT050G-80AC01-MINI-C | 5 MP, XoCLink, Color | 2448 × 2048 | 80 fps@2448 × 2048 Bayer GR 8 | 2/3” | $819.00 | View |
| MV-CT3MA0120/G/C/NN | 12.3 MP, 1.1", XoCLink, Mono | 4096 × 3000 | 36.6 fps @ 4096 × 3000 Mono 8 | 1.1" | $1,129.00 | View |
| MV-CT3CA0120/G/C/NN | 12.3 MP, 1.1", XoCLink, Color | 4096 × 3000 | 36.6 fps @ 4096 × 3000 Bayer GB 8 | 1.1" | $1,129.00 | View |
| MV-CT120G-36AC01-MINI-C | 12.3 MP, XoCLink, Color | 4096 × 3000 | 36.6 fps@4096 × 3000 Bayer GB 8 | 1.1” | $1,129.00 | View |
| MV-CT120G-36AM01-MINI-C | 12.3 MP, XoCLink, Mono | 4096 × 3000 | 36.6 fps@4096 × 3000 Mono 8 | 1.1” | $1,129.00 | View |
| MV-CT3MA0200/R/C/NN | 20 MP, 1", XoCLink, Mono | 5472 × 3648 | 22 fps @ 5472 × 3648 Mono 8 | 1" | $1,379.00 | View |
| MV-CT3CA0200/R/C/NN | 20 MP, 1", XoCLink, Color | 5472 × 3648 | 22 fps @ 5472 × 3648 Bayer GB 8 | 1" | $1,379.00 | View |
| MV-CT200R-22AC01-MINI-C | 20 MP, XoCLink, Color | 5472 × 3648 | 22 fps@5472 × 3648 Bayer GB 8 | 1” | $1,379.00 | View |
| MV-CT200R-22AM01-MINI-C | 20 MP, XoCLink, Mono | 5472 × 3648 | 22 fps@5472 × 3648 Mono 8 | 1” | $1,379.00 | View |
| MV-CT3MA0250/G/C/NN | 26.2 MP, 1.1", XoCLink, Mono | 5120 × 5120 | 20 fps @ 5120 × 5120 Mono 8 | 1.1" | $1,489.00 | View |
| MV-CT3CA0250/G/C/NN | 26.2 MP, 1.1", XoCLink, Color | 5120 × 5120 | 20 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $1,489.00 | View |
| MV-CT250G-20AM01-MINI-C | 26.2 MP, 1.1", XoCLink, Mono | 5120 × 5120 | 20 fps@5120 × 5120 Mono 8 | 1.1" | $1,489.00 | View |
| MV-CT250G-20AC01-MINI-C | 26.2 MP, 1.1", XoCLink, Color | 5120 × 5120 | 20 fps@5120 × 5120 Bayer BG 8 | 1.1" | $1,489.00 | View |
