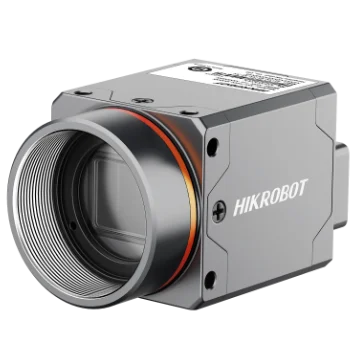

  • Hikrobot MV-CT3CA0050/G/C/NN 5MP Area Scan Camera, 3rd Gen., XoCLink, MINI, C-mount, color

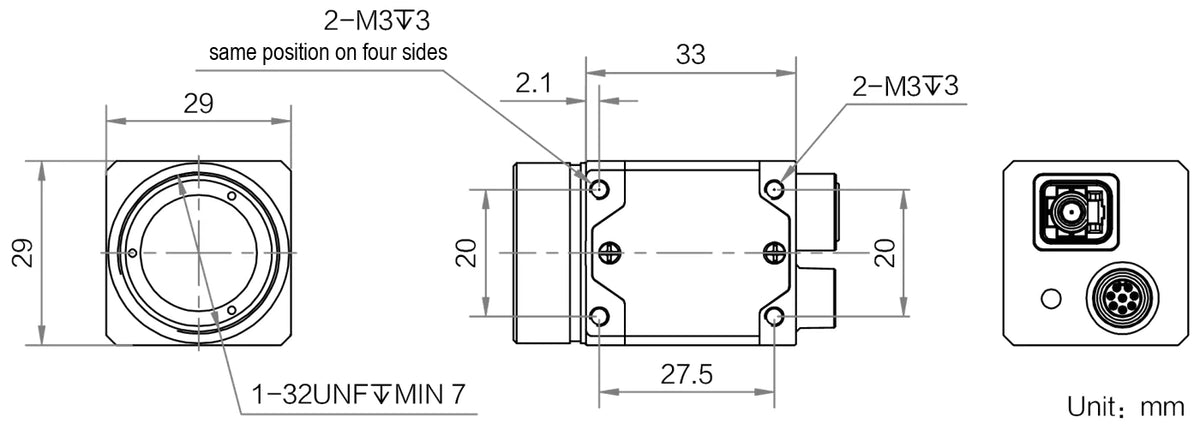

  • MV-CT050G-80AM01-MINI-C dimensions (mm)

Area scan cameras

Hikrobot MV-CT120G-36AC01-MINI-C 12 MP XoCLink area scan camera, Gen 3, Color

Model MV-CT120G-36AC01-MINI-CHikrobot

  • Resolution4096 × 3000
  • SensorCMOS, global shutter
  • InterfaceXoCLink
  • Speed36.6 fps@4096 × 3000 Bayer GB 8
  • Lens mountC-mount
  • Mono / colourColor
$1,129.00

Ships in 2-3 weeks

0.23 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CT120G-36AC01-MINI-C 12 MP XoCLink area scan camera, Gen 3, Color. Smaller, lighter and flexible to install, for high-speed camera motion applications Low-power design greatly reduces heat flux density at the camera for lower temperature drift

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-CT120G-36AC01-MINI-C
BrandHikrobot
CompatibilityGenlCam, XoCLink

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1.1”
Resolution4096 × 3000
Max. frame rate36.6 fps@4096 × 3000 Bayer GB 8
Dynamic range61.2 dB
SNR44.1 dB
Gain0 dB ~ 24 dB
Exposure time20 μs ~ 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8; Bayer GB 8/10/12; RGB8, BGR8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceXoCLink
Digital I/O8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 2 bi-directional configurable non-isolated I/O (Line 2/5)
Client softwareMVS

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureOperating temp.: -30 to 60 °C, Storage temp.: -30 to 80 °C
Humidity20% RH to 95% RH (no condensation)

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits

Electrical

Power supply9 ~ 24 VDC, PoC power supported
Power consumption2 W@12 VDC

Mechanical

Lens mountC-Mount
Dimension29 mm x 29 mm × 33 mm
WeightApprox. 90 g (0.2 lb.)
Shipping weight (estimated)0.23 kg
