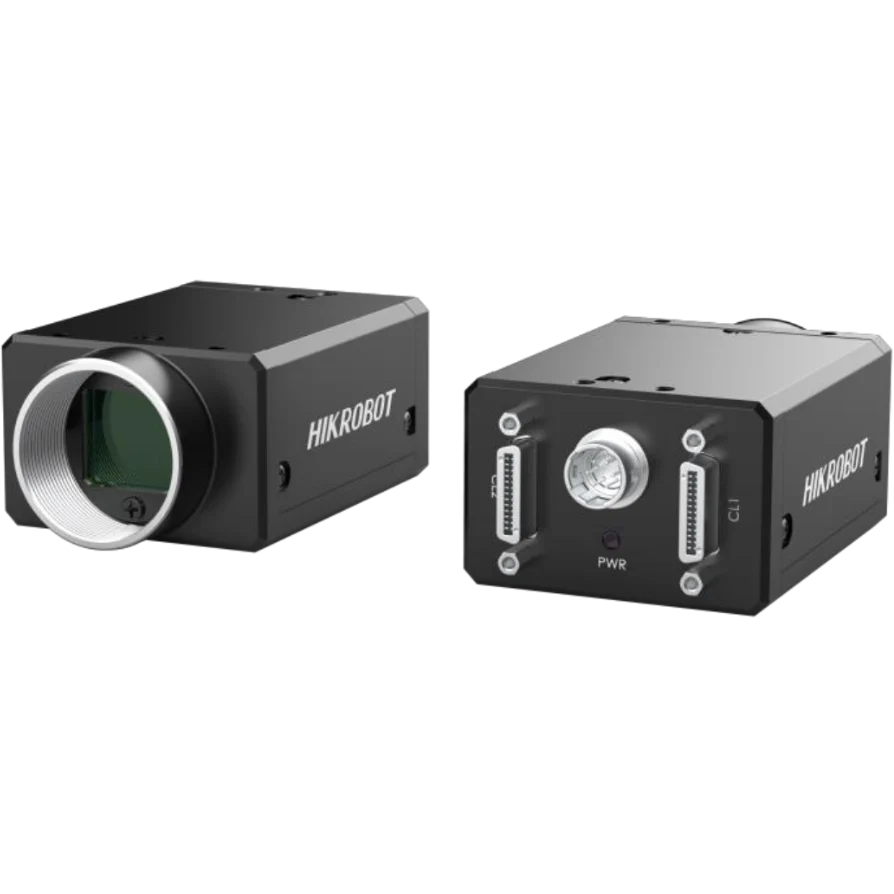

CH Series Camera Link Area Scan Cameras
- 10 models
- from $1,769.00
- Series HIK-CH-CL
The CH Series Camera Link Area Scan Cameras is a range of 10 area scan cameras from Hikrobot, from $1,769.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4.2 MP, 1", Camera Link, Mono, 5 MP, 2/3", Camera Link, Color, 5 MP, 2/3", Camera Link, Mono, 12.3 MP, 1.1", Camera Link, Color, 12.3 MP, 1.1", Camera Link, Mono, 26.2 MP, Camera Link, Mono, 101.8 MP, Camera Link, Color, 101.8 MP, Camera Link, Mono
- Interface
- Camera Link
- Resolution
- 5 MP, 12 MP, 29 MP +
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M58, M72, C-mount
- Sensor format
- 2/3", 1", 1.1" - 1.2", APS-H / Full frame, Medium / large
Features
- Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image.
- Resolution of 2432 × 2048 and pixel size of 3.45 μm × 3.45 μm.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
All 10 models in the CH Series Camera Link Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CH050-10CM | 5 MP, 2/3", Camera Link, Mono | 2432 × 2048 | Camera Link with SDR interface | 2/3" | $1,769.00 | View |
| MV-CH050-10CC | 5 MP, 2/3", Camera Link, Color | 2432 × 2048 | Camera Link with SDR interface | 2/3" | $1,769.00 | View |
| MV-CH040-A0CM | 4.2 MP, 1", Camera Link, Mono | 2048 × 2048 | Camera Link with SDR Connector | 1" | $2,229.00 | View |
| MV-CH120-10CM | 12.3 MP, 1.1", Camera Link, Mono | 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80- | Camera Link with SDR interface | 1.1" | $3,809.00quote | View |
| MV-CH120-10CC | 12.3 MP, 1.1", Camera Link, Color | 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80- | Camera Link with SDR interface | 1.1" | $3,809.00quote | View |
| MV-CH120-11CM | 12.3 MP, 1.1", Camera Link, Mono | 4096 × 3000 | Camera Link with SDR interface | 1.1" | $3,809.00quote | View |
| MV-CH250-20CM-M58S-NN | 26.2 MP, Camera Link, Mono | 5120 × 5120 | Camera Link with SDR interface | 23 mm × 23 mm | $5,559.00quote | View |
| MV-CH1010-10CM-M72-TF | 101.8 MP, Camera Link, Mono | 11648 × 8740 | Camera Link with SDR interface | 55 mm | $10,959.00quote | View |
| MV-CH1010-10CC-M72-TF | 101.8 MP, Camera Link, Color | 11648 × 8740 | Camera Link with SDR interface | 55 mm | $10,959.00quote | View |
| MV-CH1010-10CM-M72-NF | 101.8 MP, Camera Link, Mono | 11648 × 8740 | Camera Link with SDR interface | 55 mm | $23,329.00quote | View |
