Hikrobot MV-CH050-10CC 5MP Area Scan Camera, Camera Link, IMX250, Color
Model MV-CH050-10CCHikrobot
- Resolution2432 × 2048
- SensorCMOS, global shutter
- InterfaceCamera Link with SDR interface
- Speed140 fps @2432 × 2048
- Lens mountC-mount
- Mono / colourColor
$1,769.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH050-10CC 5MP Area Scan Camera, Camera Link, IMX250, Color. Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image. Resolution of 2432 × 2048 and pixel size of 3.45 μm × 3.45 μm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH050-10CC |
|---|---|
| Brand | Hikrobot |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Compatibility | Camera Link V2.0, GenlCam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Sony® IMX250 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 140 fps @2432 × 2048 |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 75.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 17 dB |
| Exposure time | 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/12, RGB 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Camera Link with SDR interface |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10 |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC |
|---|---|
| Power consumption | Typ. 3.41 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

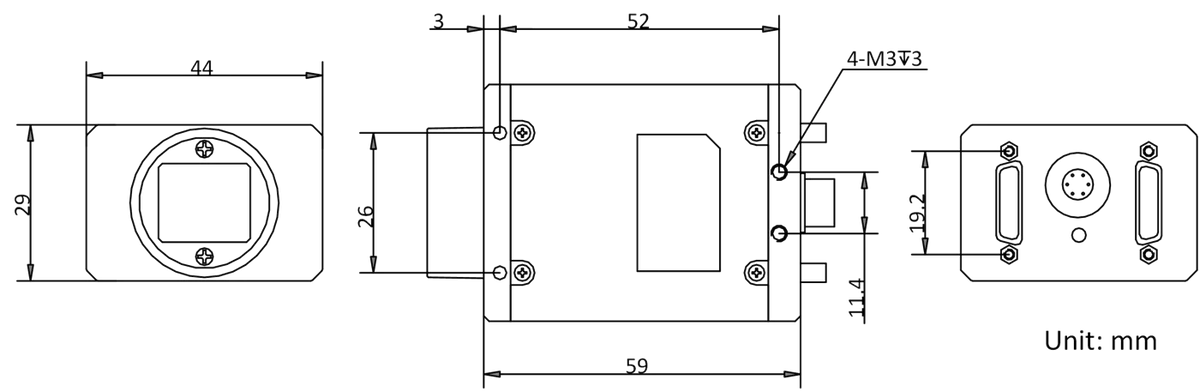

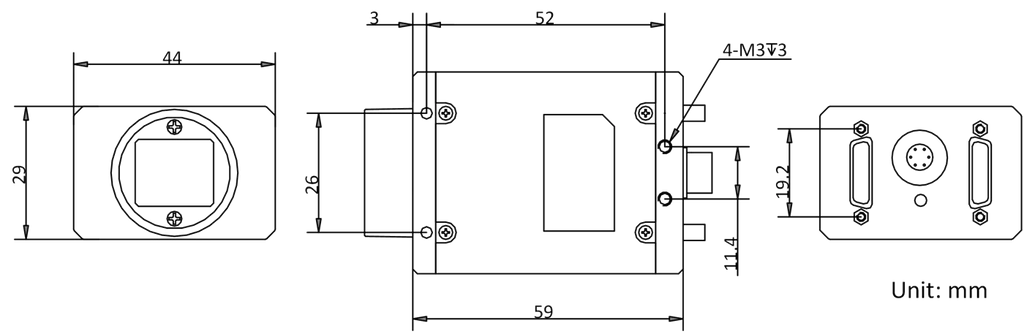

| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
