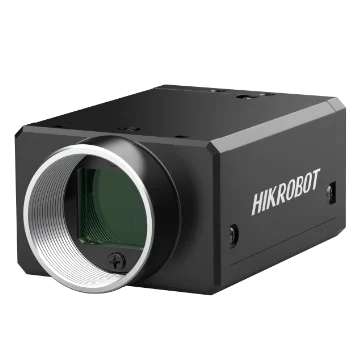

Hikrobot MV-CH120-10CM 12MP Area Scan Camera, Camera Link, IMX253, Mono

Model MV-CH120-10CMHikrobot

SensorCMOS, global shutter
InterfaceCamera Link with SDR interface
Lens mountC-mount
Mono / colourMono
Pixel size3.45 μm × 3.45 μm

$3,809.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps (LS-CMR-0080)$2,280.00

Hikrobot MV-CH120-10CM 12MP Area Scan Camera, Camera Link, IMX253, Mono. Supports auto or manual adjustment of gain exposure time, LUT and Gamma correction. Supports hardware trigger, software trigger and free run mode, and supports camera triggering via Camera Link frame grabber.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-10CM
Brand	Hikrobot
Configuration mode	Base, Medium, Full, 80-bit
Tap geometry	1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
Compatibility	Camera Link V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX253
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit)
Max. frame rate	50.9 fps @ 4096 × 3000 Mono 8 (Base/Medium/Full); 69.8 fps @ 3840 × 3000 Mono 8 (80-bit)
Pixel clock	60 MHz, 70 MHz, 85 MHz
Dynamic range	71.6 dB
SNR	39.7 dB
Gain	0 dB to 24 dB
Exposure time	1 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Not support
Decimation	Not support
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Camera Link with SDR interface
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or frame grabber software meeting with GenlCam Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Power supply	9 VDC to 24 VDC
Power consumption	Typ. 4.51 W @ 12 VDC

Mechanical

Lens mount	C-mount
Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports auto or manual adjustment of gain exposure time, LUT and Gamma correction.
Supports hardware trigger, software trigger and free run mode, and supports camera triggering via Camera Link frame grabber.
Supports customized ROI, and horizontal and vertical reverse image output.
Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
Compatible with Camera Link V2.0 Protocol, GenICam Standard, and the third-party software based on the protocol and standard.
