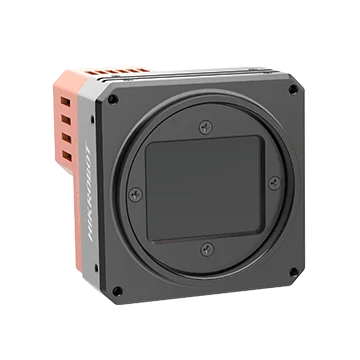

Hikrobot MV-CH1010-10CM-M72-TF 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC
  • Hikrobot MV-CH1010-10CM-M72-TF 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC

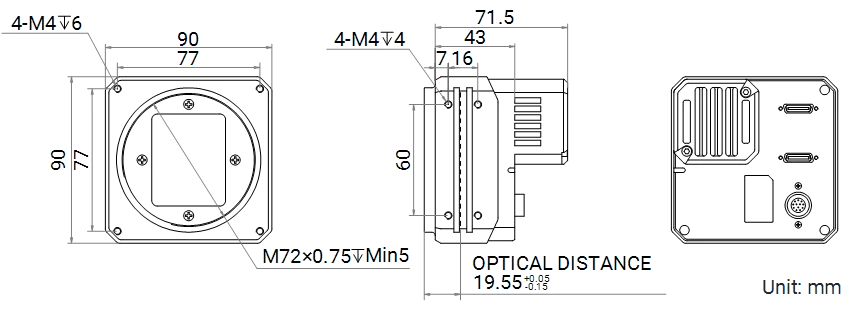

  • MV-CH1010-10CM-M72-TF dimensions (mm)

Area scan cameras

Hikrobot MV-CH1010-10CM-M72-TF 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC

Model MV-CH1010-10CM-M72-TFHikrobot

  • Resolution11648 × 8740
  • SensorCMOS, rolling shutter
  • InterfaceCamera Link with SDR interface
  • Speed8.1 fps @ 11648 × 8740 Mono 8
  • Lens mountM72
  • Mono / colourMono
  • Highest dynamic range of the 10 models in its series: 78 dB (shared with 2 other models)
$10,959.00
List price

Ships in 2-3 weeks

1.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CH1010-10CM-M72-TF: resolution 11648 x 8740; sensor type CMOS, rolling shutter; sensor size 55 mm; max. frame rate 8.1 fps @ 11648 x 8740 Mono 8.

Hikrobot MV-CH1010-10CM-M72-TF 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC. Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction. Supports FFC correction function.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH1010-10CM-M72-TF
BrandHikrobot
Configuration modeBase, Medium, Full, 80-bit
Tap geometry2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
CompatibilityCamera Link V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX461
Pixel size3.76 μm × 3.76 μm
Sensor size55 mm
Resolution11648 × 8740
Max. frame rate8.1 fps @ 11648 × 8740 Mono 8
Pixel clock40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range78 dB
SNR45 dB
Gain0 dB to 36 dB
Exposure time14 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset
Mono/colorMono
Pixel formatADC 12-bit mode: Mono 8/10/12; ADC 16-bit mode: Mono 8/10/12/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output

Interfaces and I/O

Data interfaceCamera Link with SDR interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.; Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Client softwareMVS or frame grabber software meeting with GenICam Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Power supplyCamera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
Power consumptionCamera with TEC non-cooling: Typ. 14 W @ 24 VDC; Camera with TEC cooling: Typ. 48 W @ 24 VDC

Mechanical

Lens mountM72*0.75, flange back length 19.55 mm
DimensionCamera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8"); Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
WeightCamera with fan: Approx. 790 g (1.7 lb.); Camera with TEC: Approx. 1.7 kg (3.7 lb.)
Shipping weight (estimated)1.21 kg

Engineering data

Field of view and resolution with the MV-CH1010-10CM-M72-TF

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area43.8 × 32.86 mmMedium format optical format
Lens image circle needed≥ Ø 54.8 mmM72
Pixel pitch3.76 µm11648 x 8740 px
Image data at max frame rate825 MB/sCalculated: 8.1 fps × 11648 × 8740 px at 8 bit
With a 60 mm lens at 500 mm365 × 274 mm0.031 mm per pixel
Dynamic range78 dB
SNR45 dB
ShutterRolling
Exposure range14 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
35 mm375 × 282 mm0.032 mm per pixel626 × 469 mm0.054 mm per pixel1251 × 939 mm0.107 mm per pixel
50 mm263 × 197 mm0.023 mm per pixel438 × 329 mm0.038 mm per pixel876 × 657 mm0.075 mm per pixel
60 mm219 × 164 mm0.019 mm per pixel365 × 274 mm0.031 mm per pixel730 × 548 mm0.063 mm per pixel
85 mm155 × 116 mm0.013 mm per pixel258 × 193 mm0.022 mm per pixel515 × 387 mm0.044 mm per pixel
100 mm131 × 98.6 mm0.011 mm per pixel219 × 164 mm0.019 mm per pixel438 × 329 mm0.038 mm per pixel
150 mm87.6 × 65.7 mm0.008 mm per pixel146 × 110 mm0.013 mm per pixel292 × 219 mm0.025 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this M72 camera

Covers up to 58 mm diagonal; this camera's sensor is 54.8 mm

Covers up to 58 mm diagonal; this camera's sensor is 54.8 mm

Covers up to 60 mm diagonal; this camera's sensor is 54.8 mm

Covers up to 60 mm diagonal; this camera's sensor is 54.8 mm

Covers up to 67 mm diagonal; this camera's sensor is 54.8 mm

Covers up to 67 mm diagonal; this camera's sensor is 54.8 mm

Cables and frame grabbers

Other models in the CH Series Camera Link Area Scan Cameras series

See all 10 models
  • Highest dynamic range of the 10 models in its series: 78 dB (shared with 2 other models)
  • Highest SNR of the 10 models in its series: 45 dB (shared with 2 other models)
ModelResolutionSensorInterfacePriceAvailabilityLink
MV-CH1010-10CM-M72-TFThis model11648 × 8740CMOS, rolling shutterCamera Link with SDR interface$10,959.00 Quote Ships in 2-3 weeks
MV-CH050-10CM2432 × 2048CMOS, global shutterCamera Link with SDR interface$1,769.00 Ships in 2-3 weeks View
MV-CH050-10CC2432 × 2048CMOS, global shutterCamera Link with SDR interface$1,769.00 Ships in 2-3 weeks View
MV-CH040-A0CM2048 × 2048CMOS, global shutterCamera Link with SDR Connector$2,229.00 Ships in 2-3 weeks View
MV-CH120-10CMCMOS, global shutterCamera Link with SDR interface$3,809.00 Quote Ships in 2-3 weeks View
MV-CH120-10CCCMOS, global shutterCamera Link with SDR interface$3,809.00 Quote Ships in 2-3 weeks View
MV-CH120-11CM4096 × 3000CMOS, global shutterCamera Link with SDR interface$3,809.00 Quote Ships in 2-3 weeks View
MV-CH250-20CM-M58S-NN5120 × 5120CMOS, global shutterCamera Link with SDR interface$5,559.00 Quote Ships in 2-3 weeks View
MV-CH1010-10CC-M72-TF11648 × 8740CMOS, rolling shutterCamera Link with SDR interface$10,959.00 Quote Ships in 2-3 weeks View
MV-CH1010-10CM-M72-NF11648 × 8740CMOS, rolling shutterCamera Link with SDR interface$23,329.00 Quote Ships in 2-3 weeks View
