Machine vision lenses

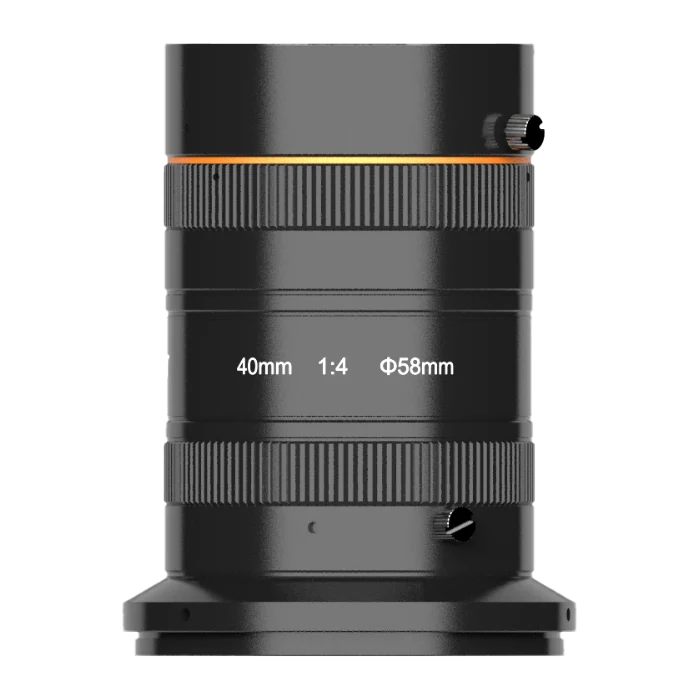

40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x, M72 Mount (LS-FFL-1430)
Model LS-FFL-1430
- Focal length40 mm
- Magnification0.21 x to 0.001 x
- MountM72
- SensorMedium format
- Working distance200 mm to inf mm (tolerance: ±5 mm)
- ApertureF4.0 to F22
$229.00
Ships in 2-3 weeks
0.98 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x, M72 Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent picture sharpness consistency, low distortion.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1430 |
|---|---|
| Conjugate distance range | 310 mm to inf mm (tolerance: ±9 mm) |
Optics
| Focal length | 40 mm |
|---|---|
| F-number | F4.0 to F22 |
| Image size | Φ58 mm |
| Optical distortion | –0.42% |
| Magnification range | 0.21 x to 0.001 x |
| Working distance range | 200 mm to inf mm (tolerance: ±5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M60 × P0.75 |
| Magnification at working distance (mm) | 200: -0.212; 250: -0.167; 300: -0.138; 350: -0.118; 400: -0.103; 450: -0.091; 500: -0.082; 550: -0.075; 600: -0.068; 650: -0.063; 700: -0.058; 750: -0.055; 800: -0.051; 850: -0.048; 900: -0.045; 950: -0.043; 1000: -0.041; 1100: -0.037; 1200: -0.034; 1300: -0.031; 1400: -0.029; 1500: -0.027 |
| Object-to-image distance at working distance (mm) | 200: 310; 250: 360; 300: 410; 350: 460; 400: 510; 450: 560; 500: 610; 550: 660; 600: 710; 650: 760; 700: 810; 750: 860; 800: 910; 850: 960; 900: 1010; 950: 1060; 1000: 1110; 1100: 1210; 1200: 1310; 1300: 1410; 1400: 1510; 1500: 1610 |
| Field of view H (mm) at working distance (mm), 8k 7 µm sensor | 200: 270.1; 250: 344.2; 300: 417.2; 350: 489.8; 400: 562.0; 450: 634.1; 500: 706.1; 550: 778.0; 600: 849.9; 650: 921.7; 700: 993.4; 750: 1065.2; 800: 1136.9; 850: 1208.6; 900: 1280.3; 950: 1351.9; 1000: 1423.6; 1100: 1566.9; 1200: 1710.2; 1300: 1853.5; 1400: 1996.7; 1500: 2140.0 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |

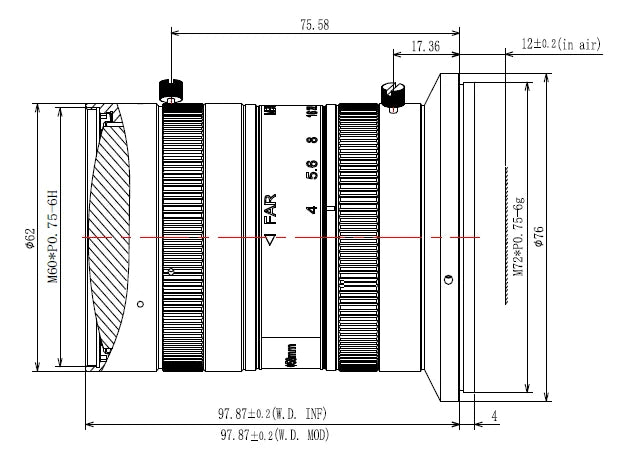

Mechanical
| Mount | M72 × P0.75 |
|---|---|
| Flange back length | 12 mm |
| Dimension | Φ76 mm × 97.9 mm (Φ3.0'' × 3.9") |
| Weight | 625 g (24.6 Ib.) |
| Shipping weight (estimated) | 0.98 kg |
