Machine vision lenses

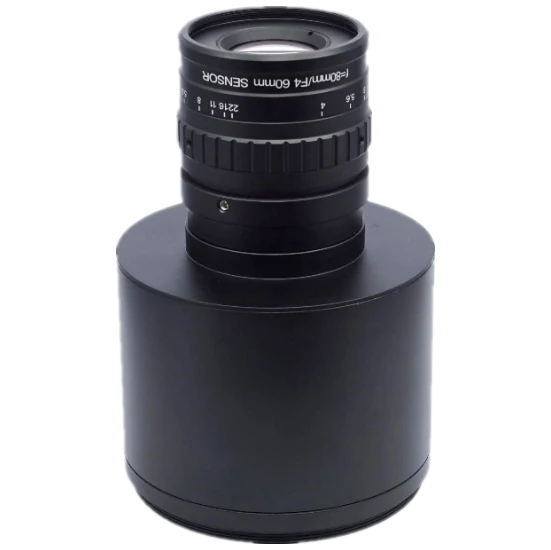

80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X, M72 Mount (LS-FFL-1434)
Model LS-FFL-1434
- Focal length80 mm
- Magnification0.12x to 0.21x to 0.31x
- MountM72
- SensorMedium format
- Working distance750 mm to 450 mm to 325 mm ± 9 mm
- ApertureF4.0 to F22
$969.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X, M72 Mount. High precision lens for 8K7U line array cameras Excellent picture sharpness consistency
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1434 |
|---|
Optics
| Focal length | 80 mm |
|---|---|
| F-number | F4.0 to F22 |
| Image size | Ø60 mm |
| Optical distortion | –0.11% |
| Magnification range | 0.12x to 0.21x to 0.31x |
| Working distance range | 750 mm to 450 mm to 325 mm ± 9 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × 0.5 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | M72 × P0.75 |
|---|---|
| Flange back length | 12 mm |

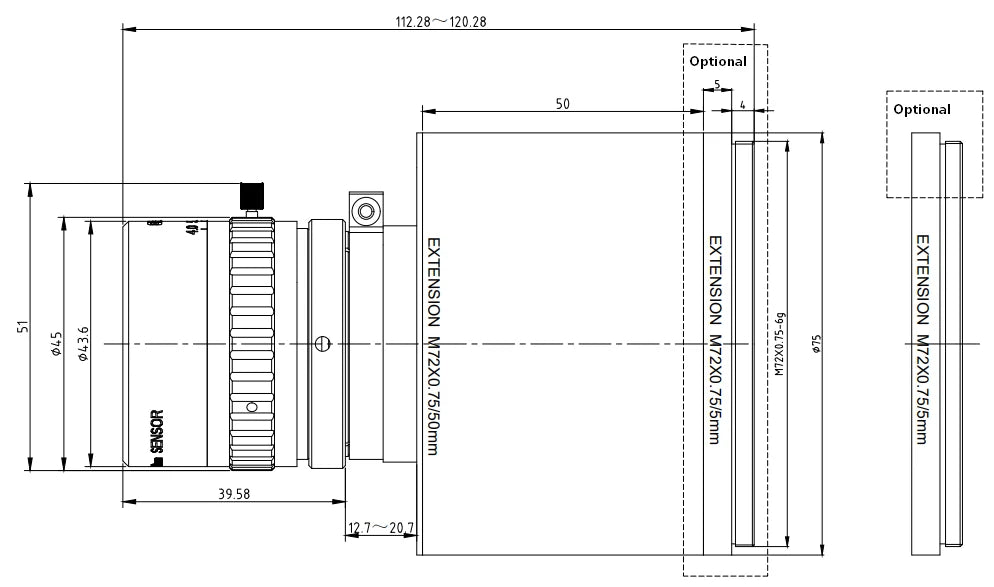

| Dimension | Ø45 mm × 108.28 mm to 116.28 mm (Ø1.77'' × 4.26'' to 4.58'') |
| Weight | 321.2 g (0.708 lb.) |
| Shipping weight (estimated) | 0.55 kg |
Other models in the LS-FFL-S129 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1429 | 30 mm · 0.145 x to 0.031 x | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-1430 | 40 mm · 0.21 x to 0.001 x | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-1433 | 60 mm · 0.067 x to 0.2 x | $839.00 | Ships in 2-3 weeks | View |
| LS-FFL-1431 | 60 mm · 0.37x ~ 0.13x ~ 0.07x ~ 0.001x | $839.00 | Ships in 2-3 weeks | View |
| LS-FFL-1432 | 60 mm · 0.33x ~ 0.167x ~ 0.117x | $839.00 | Ships in 2-3 weeks | View |
