Machine vision lenses

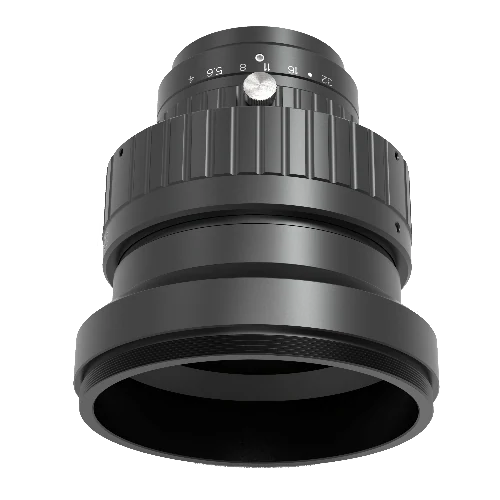

60mm, F4.0, Large image circle φ64 mm, Recommended magnification 0.117-0.33x, M72-mount lens (LS-FFL-1432)
Model LS-FFL-1432
- Focal length60 mm
- Magnification0.33x ~ 0.167x ~ 0.117x
- MountM72
- SensorMedium format
- Working distance219 ~ 404 ~ 563 ±5 mm
- ApertureF4.0 ~ F32
$839.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
60mm, F4.0, Large image circle φ64 mm, Recommended magnification 0.117-0.33x, M72-mount lens. High-precision lens for 8K7U line-scan cameras Excellent sharpness uniformity, large aperture, low distortion
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1432 |
|---|---|
| Conjugate distance range | 321 ~ 496 ~ 645 ±9 mm |
Optics
| Focal length | 60 mm |
|---|---|
| F-number | F4.0 ~ F32 |
| Image size | Φ64 mm |
| Optical distortion | 0.19% |
| Magnification range | 0.33x ~ 0.167x ~ 0.117x |
| Working distance range | 219 ~ 404 ~ 563 ±5 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M37 × P0.75 |
Interfaces and I/O
| Connector type | M72 × P0.75 |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 12 mm |
|---|---|
| Dimension | Φ74.8 × 97.9 mm |
| Shipping weight (estimated) | 0.31 kg |
Other models in the LS-FFL-S129 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1429 | 30 mm · 0.145 x to 0.031 x | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-1430 | 40 mm · 0.21 x to 0.001 x | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-1433 | 60 mm · 0.067 x to 0.2 x | $839.00 | Ships in 2-3 weeks | View |
| LS-FFL-1431 | 60 mm · 0.37x ~ 0.13x ~ 0.07x ~ 0.001x | $839.00 | Ships in 2-3 weeks | View |
| LS-FFL-1434 | 80 mm · 0.12x to 0.21x to 0.31x | $969.00 | Ships in 2-3 weeks | View |
