Machine vision lenses

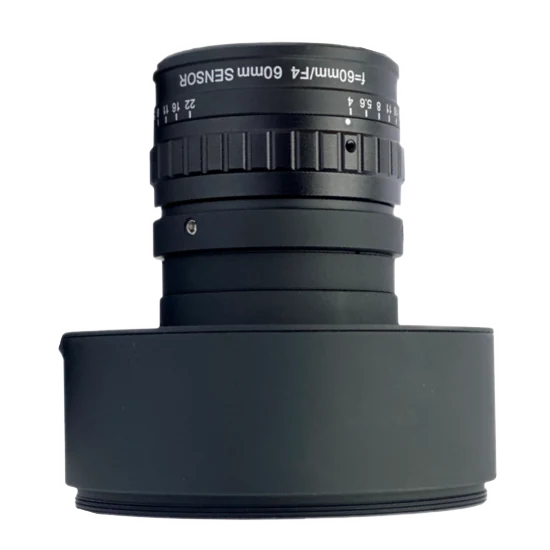

60mm, F4.0, Image Size φ64mm, Recommended Magnification 0.067~0.2X, M72 Mount (LS-FFL-1433)
Model LS-FFL-1433
- Focal length60 mm
- Magnification0.067 x to 0.2 x
- MountM72
- SensorMedium format
- Working distance945 mm to 345 mm (tolerance: ±5 mm)
- ApertureF4.0 to F22
$839.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
60mm, F4.0, Image Size φ64mm, Recommended Magnification 0.067~0.2X, M72 Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent picture sharpness consistency, large aperture, and low distortion.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1433 |
|---|---|
| Conjugate distance range | 1020 mm to 430 mm (tolerance: ±9 mm) |
Optics
| Focal length | 60 mm |
|---|---|
| F-number | F4.0 to F22 |
| Image size | Φ60 mm |
| Optical distortion | 0.14% |
| Magnification range | 0.067 x to 0.2 x |
| Working distance range | 945 mm to 345 mm (tolerance: ±5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × P0.5 |
| Magnification at working distance (mm) | 345: -0.199; 350: -0.195; 400: -0.168; 450: -0.147; 500: -0.131; 550: -0.118; 600: -0.107; 650: -0.098; 700: -0.091; 750: -0.084; 800: -0.079; 850: -0.074; 900: -0.069; 920: -0.068 |
| Object-to-image distance at working distance (mm) | 345: 427; 350: 432; 400: 480; 450: 529; 500: 578; 550: 627; 600: 677; 650: 726; 700: 776; 750: 825; 800: 875; 850: 925; 900: 974; 920: 994 |
| Field of view H (mm) at working distance (mm), 8k 7 µm sensor | 345: 289.2; 350: 294.0; 400: 342.2; 450: 390.4; 500: 438.6; 550: 486.8; 600: 534.9; 650: 583.1; 700: 631.2; 750: 679.5; 900: 823.9; 920: 843.2 |
Environment and compliance
| Temperature | –10 °C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | M72 × P0.75 |
|---|---|
| Flange back length | 12 mm |

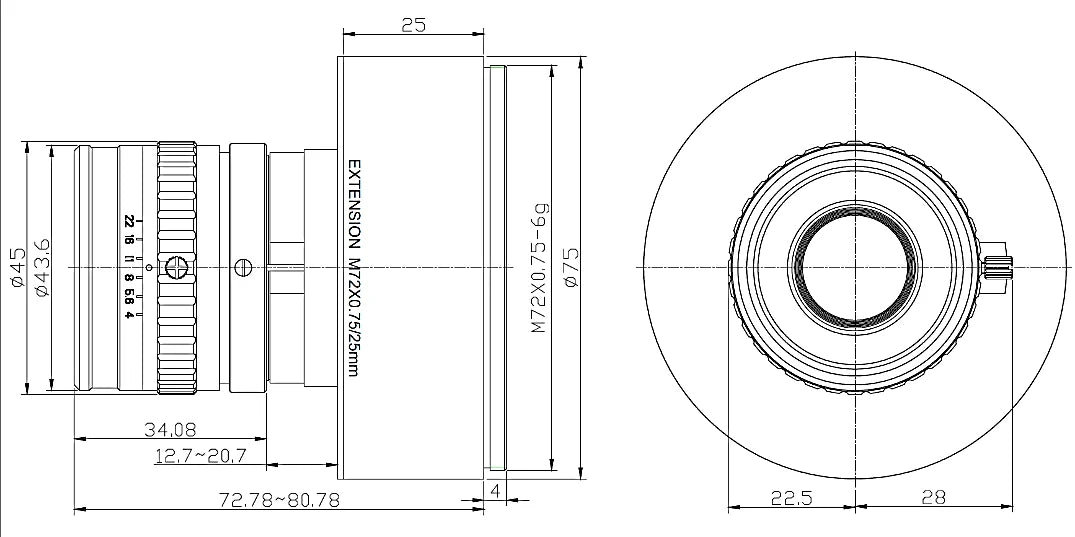

| Dimension | Φ75 mm × 72.8 mm to 80.8 mm (Φ3" × 2.9" to 3.2") |
| Shipping weight (estimated) | 0.31 kg |
