Hikrobot MV-CH040-A0CM 4MP Area Scan Camera, Camera Link
Model MV-CH040-A0CMHikrobot
- Resolution2048 × 2048
- SensorCMOS, global shutter
- InterfaceCamera Link with SDR Connector
- Speed180 fps @2040 × 2048 Mono 8
- Lens mountC-mount
- Mono / colourMono
$2,229.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH040-A0CM 4MP Area Scan Camera, Camera Link. Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc. Supports customized ROI and horizontal and vertical reverse image output.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH040-A0CM |
|---|---|
| Brand | Hikrobot |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Compatibility | Camera Link V2.0, GenlCam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Pixel size | 5.5 μm × 5.5 μm |
| Sensor size | 1" |
| Resolution | 2048 × 2048 |
| Max. frame rate | 180 fps @2040 × 2048 Mono 8 |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 59.7 dB |
| SNR | 39.6 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 28 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Camera Link with SDR Connector |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).; Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoCL |
|---|---|
| Power consumption | Typ. 3.6 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
Other models in the CH Series Camera Link Area Scan Cameras series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

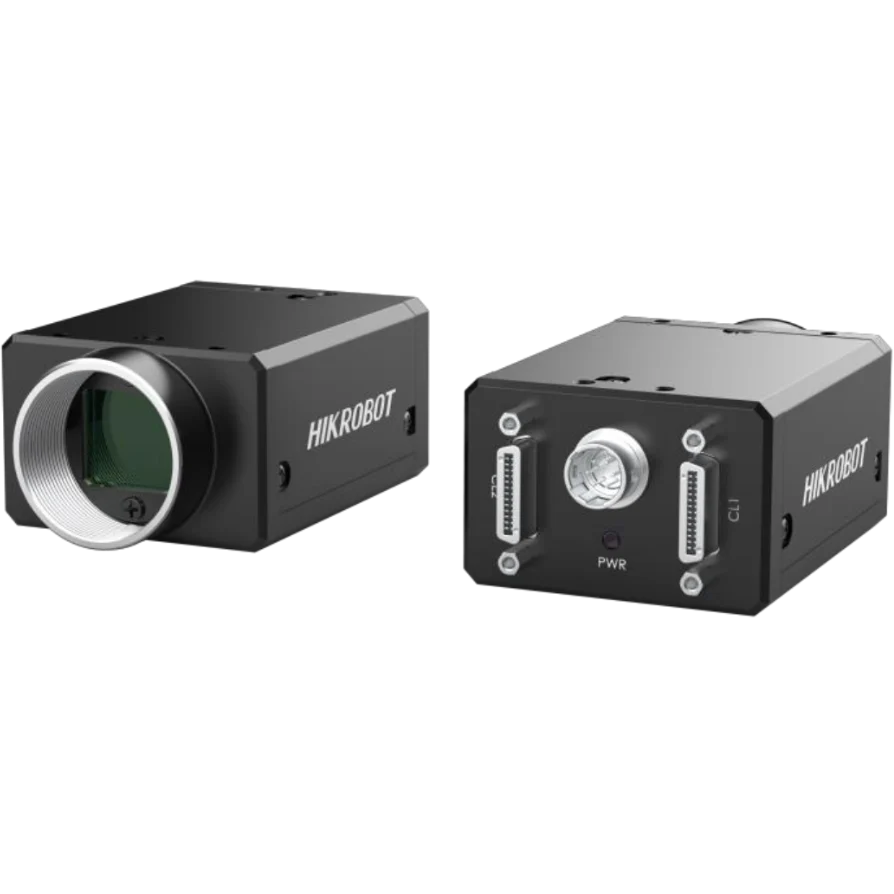

| MV-CH050-10CM | 5 MP, 2/3", Camera Link, Mono | $1,769.00 | 3 in stock | View |
