Area scan cameras

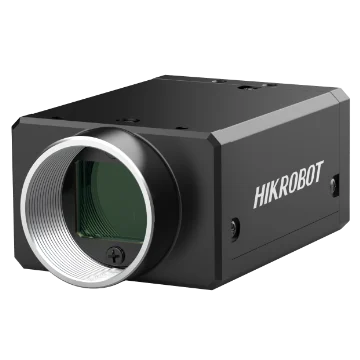

Hikrobot MV-CH120-11CM 12 MP Camera Link area scan camera, IMX304, Mono

Model MV-CH120-11CMHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
InterfaceCamera Link with SDR interface
Speed23.4 fps @4096 × 3000 Mono 8
Lens mountC-mount
Mono / colourMono

$3,809.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps (LS-CMR-0080)$2,280.00

Hikrobot MV-CH120-11CM 12 MP Camera Link area scan camera, IMX304, Mono. Auto or manual gain and exposure time; manual LUT and Gamma correction Custom ROI with horizontal and vertical mirroring

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-11CM
Brand	Hikrobot
Configuration mode	Base, Medium
Tap geometry	1X2_1Y, 1X4_1Y
Compatibility	Camera Link V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony IMX304
Pixel size	3.45 μm×3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	23.4 fps @4096 × 3000 Mono 8
Pixel clock	40 MHz, 66 MHz, 85 MHz
Dynamic range	72.2 dB
SNR	40.2 dB
Gain	0 dB ~ 24 dB
Exposure time	Ultra-short exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	1×1 supported, 1×2, 2×1, 2×2
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Camera Link with SDR interface
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).; Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Client software	MVS or frame grabber software meeting with GenlCam Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows XP/7/10/11(32/64bits)

Electrical

Channel	2/4 Taps
Power supply	9~24 VDC
Power consumption	3.48 W@12 VDC

Mechanical

Lens mount	C-Mount
Dimension	44 mm × 29 mm × 59 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Auto or manual gain and exposure time; manual LUT and Gamma correction
Custom ROI with horizontal and vertical mirroring
Hardware trigger, software trigger and free-run modes; the camera can be triggered via a Camera Link frame grabber
Base and Medium configuration modes
Compliant with the Camera Link protocol and GenICam standard for seamless connection to third-party software platforms

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
