12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps
  • 12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps
  • 12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps
  • 12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps

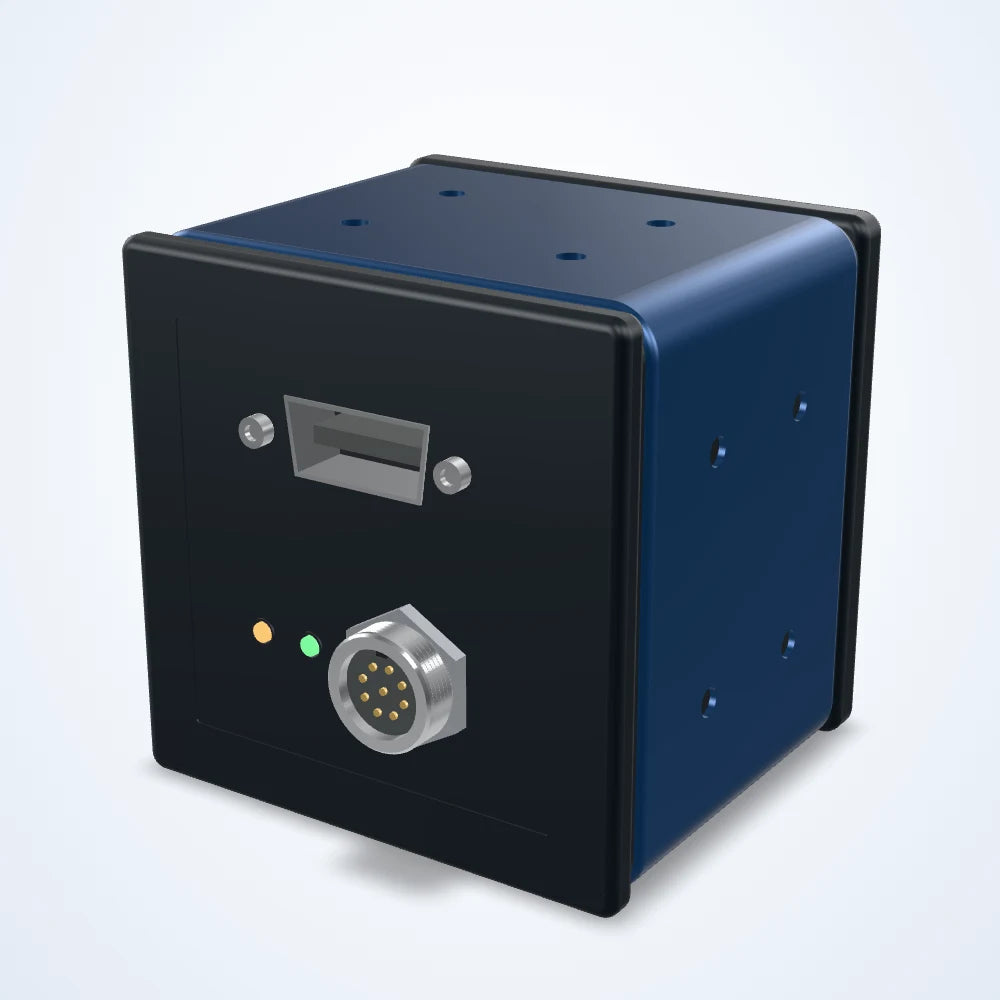

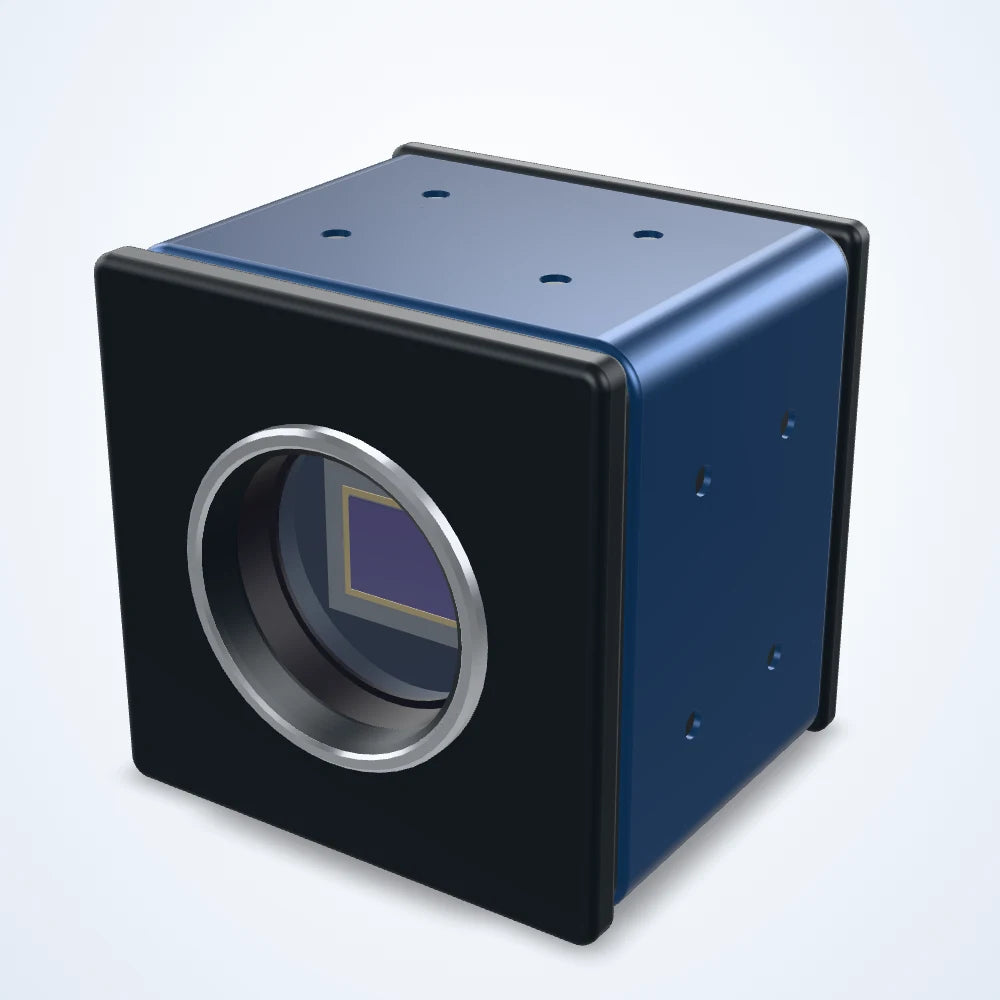

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps (LS-CMR-0080)

Model LS-CMR-0080

  • Resolution4096x3000
  • Sensor1.1"
  • InterfaceCameraLink
  • Speed20 fps
  • Lens mountC-mount
  • Pixel size3.45 μm
$2,280.00

Ships in 3-4 weeks

3.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12.3 MP Camera Link area scan camera, IMX304, 1.1" global shutter, 20 fps (LS-CMR-0080)LS-CMR-0080

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12.3 MP area scan camera for inspection, measurement and guidance on the production line. IMX304 sensor (1.1"); 4096 x 3000 pixels of 3.45 μm; up to 20 frames per second; global shutter; Camera Link interface; C-mount lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0080

Sensor and imaging

Resolution4096x3000
Max. frame rate20 fps
Sensor modelIMX304
Sensor size1.1"
Pixel size3.45 μm
ShutterGlobal Shutter
Pixel bit depth10-bit
Sensor makeSony
Sensor typeCMOS
Dynamic range70.0 dB
SNR41.0 dB

Interfaces and I/O

Data interfaceCameraLink
Digital I/OOpto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature-30~80 °C (Storage), -30~50°C (Working)
CertificationCameralink and GenICam

Computing

Operating systemWindows

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyPoCL, DC 6-24 V
Power consumption12 V@2.4 W

Mechanical

Lens mountC-Mount
Dimensions29.0 × 29.0 × 43.8 mm
Weight80g
Mounting holes4-M3; 5-M3; 4-M2
