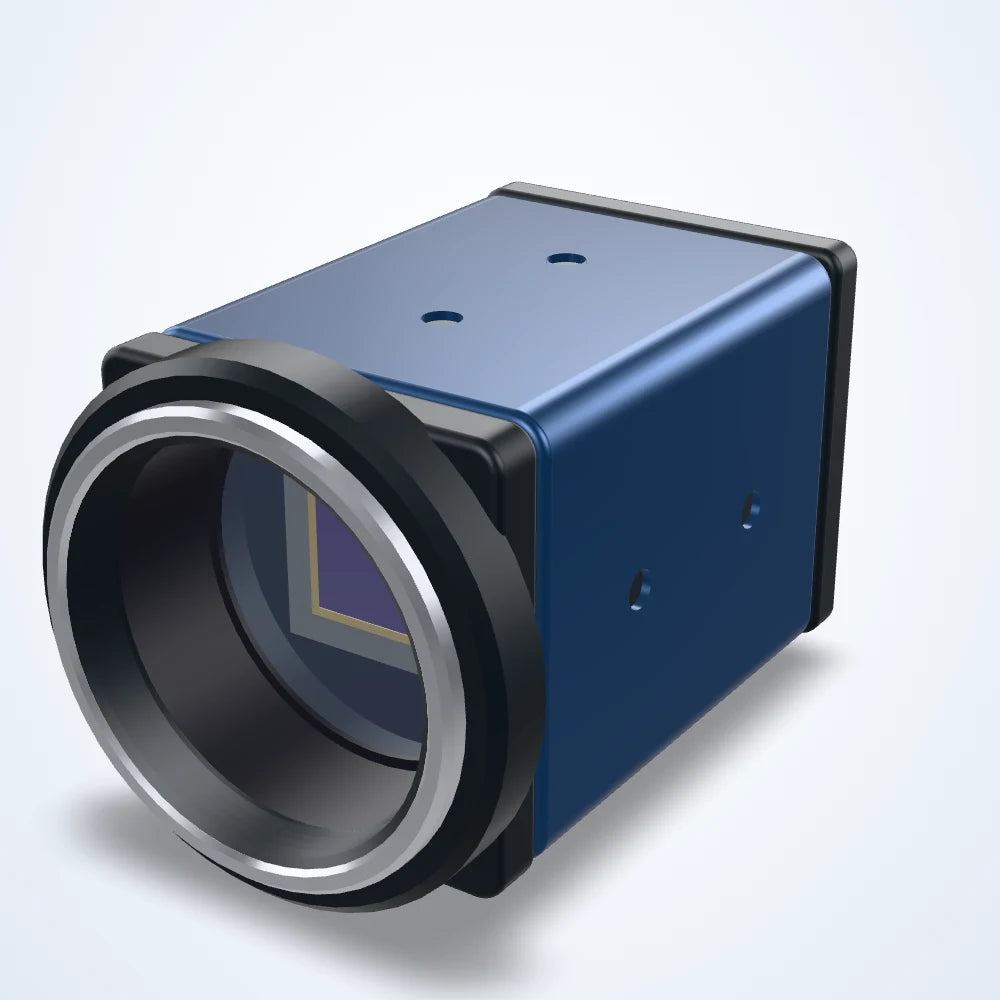

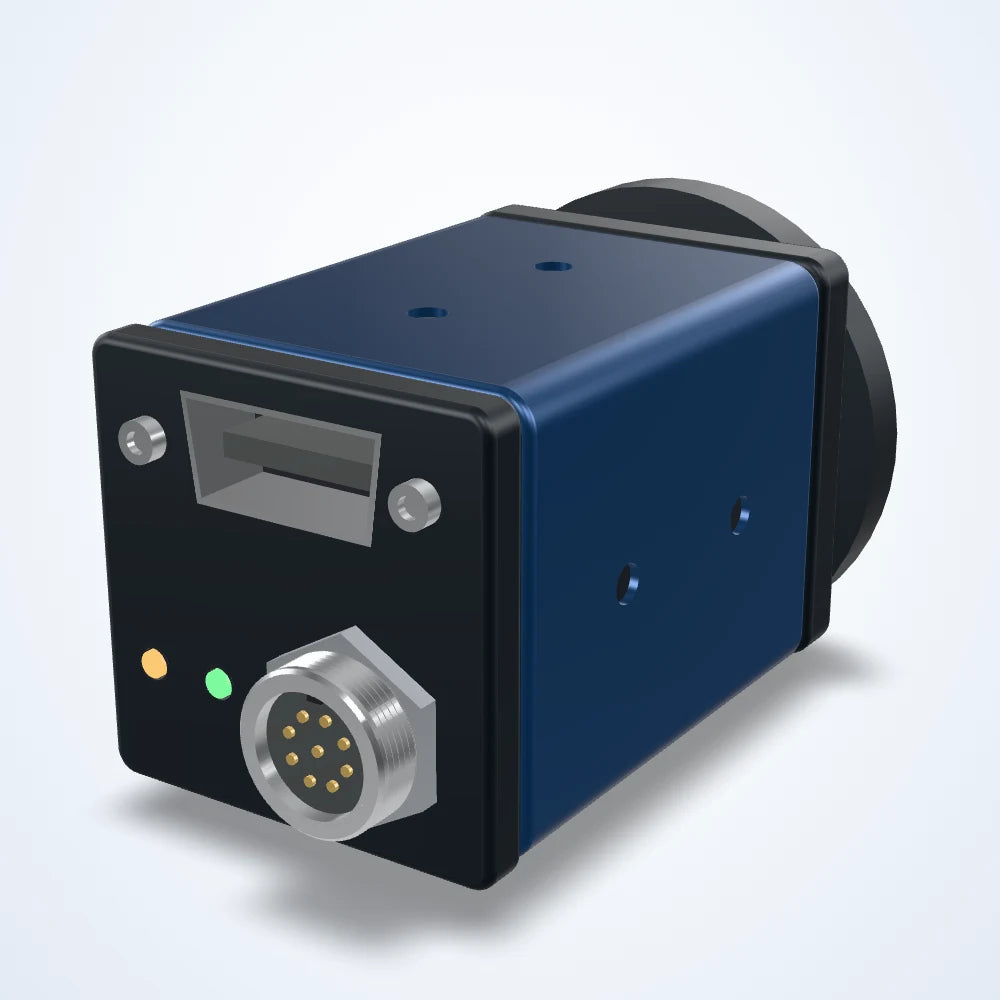

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
0.4 MP Camera Link area scan camera, IMX287, 1/2.9" global shutter, 350 fps (LS-CMR-0071)
Model LS-CMR-0071
- Resolution720 px x 540 px
- Sensor1/2.9"
- InterfaceCameralink
- Speed349 fps
- Lens mountC-mount
- Pixel size6.9 μm x 6.9 μm
$530.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.26 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.4 MP area scan camera for inspection, measurement and guidance on the production line. IMX287 CMOS sensor (1/2.9"); 720 x 540 pixels of 6.9 μm; up to 350 frames per second; global shutter; Camera Link interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0071 |
|---|
Sensor and imaging
| Resolution | 720 px x 540 px |
|---|---|
| Pixel size | 6.9 μm x 6.9 μm |
| Max. frame rate | 349 fps |
| Sensor make | Sony |
| Sensor model | IMX 287 |
| Shutter | Global Shutter |
| Sensor size | 1/2.9" |
| Sensor type | CMOS |
| Dynamic range | 70.0 dB |
| SNR | 41.0 dB |
| Pixel bit depth | 10 bits |
Interfaces and I/O
| Data interface | Cameralink |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -30~50°C (Working) |
|---|---|
| Certification | Cameralink and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run |
|---|---|
| Power supply | PoCL, DC 6-24 V |
Mechanical
| Dimensions | 29.0 × 29.0 × 43.8 mm |
|---|---|
| Lens mount | C-mount |
| Weight | 88g |
