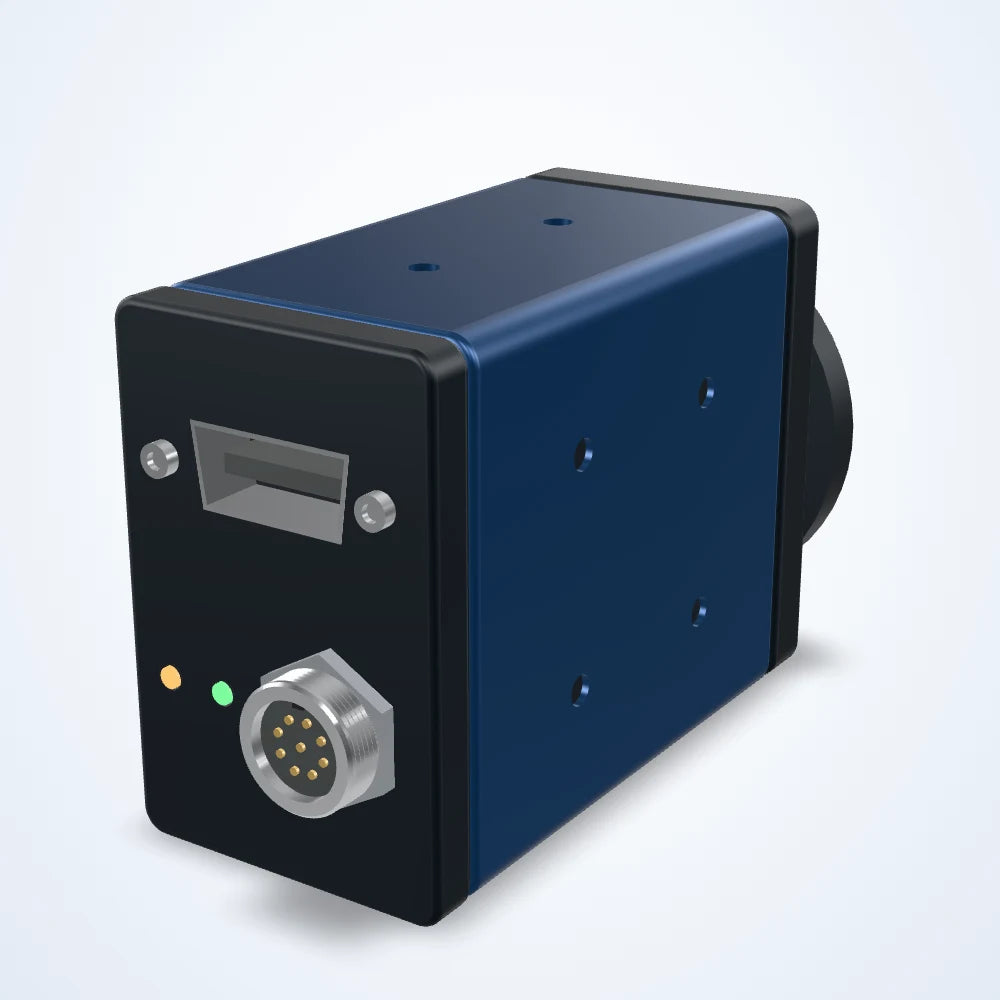

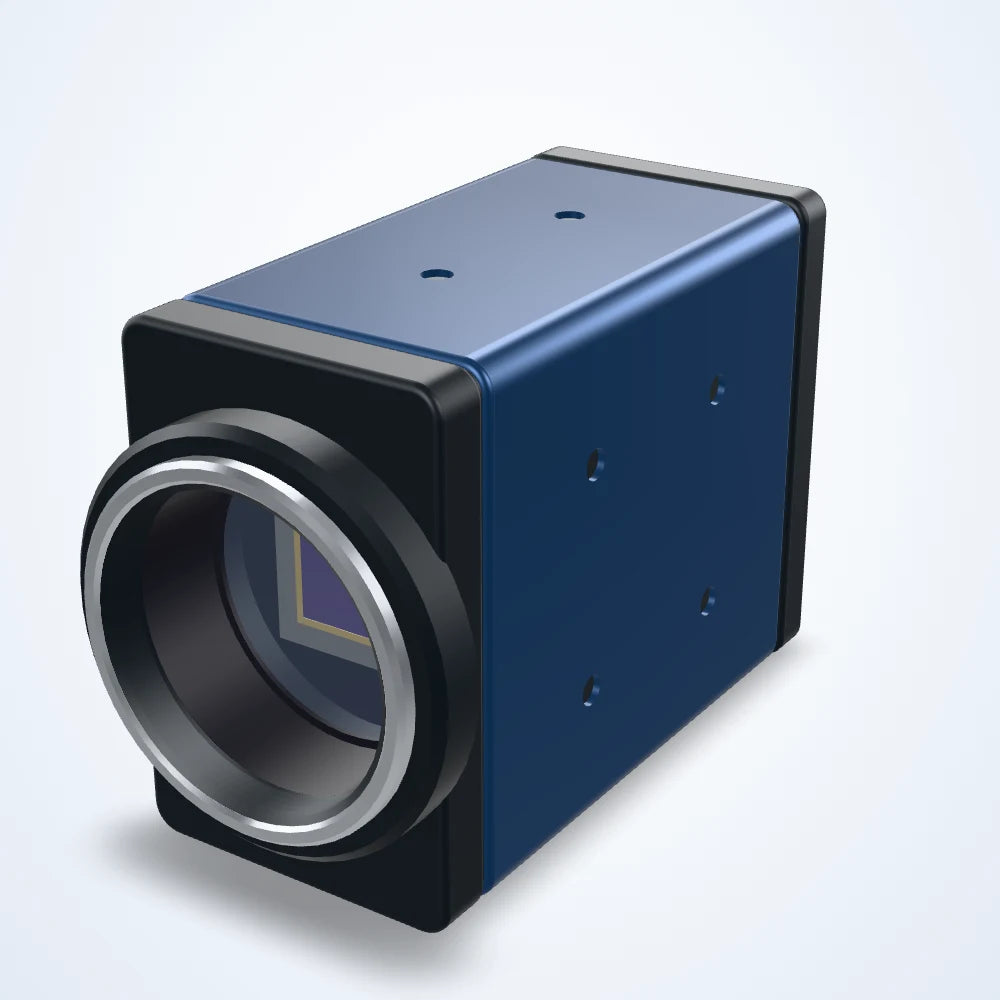

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
5 MP Camera Link area scan camera, IMX264, 2/3" global shutter, 37 fps (LS-CMR-0076)
Model LS-CMR-0076
- Resolution2448 px x 2048 px
- Sensor2/3"
- InterfaceCameralink
- Speed37.27 fps
- Lens mountC-mount
- Pixel size3.45 μm x 3.45 μm
$1,017.00
Ships in 3-4 weeks
0.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5 MP area scan camera for inspection, measurement and guidance on the production line. IMX264 CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 37 frames per second; global shutter; Camera Link interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0076 |
|---|
Sensor and imaging
| Resolution | 2448 px x 2048 px |
|---|---|
| Pixel size | 3.45 μm x 3.45 μm |
| Max. frame rate | 37.27 fps |
| Sensor make | Sony |
| Sensor model | IMX264 |
| Shutter | Global Shutter |
| Sensor size | 2/3" |
| Sensor type | CMOS |
| Dynamic range | 70.0 dB |
| SNR | 41.0 dB |
| Pixel bit depth | 8/10 bits |
Interfaces and I/O
| Data interface | Cameralink |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -30~50°C (Working) |
|---|---|
| Certification | Cameralink and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | ● Soft Trigger; ● Hardware Trigger; ● Free Run |
|---|---|
| Power supply | PoCL, DC 6-24 V |
Mechanical

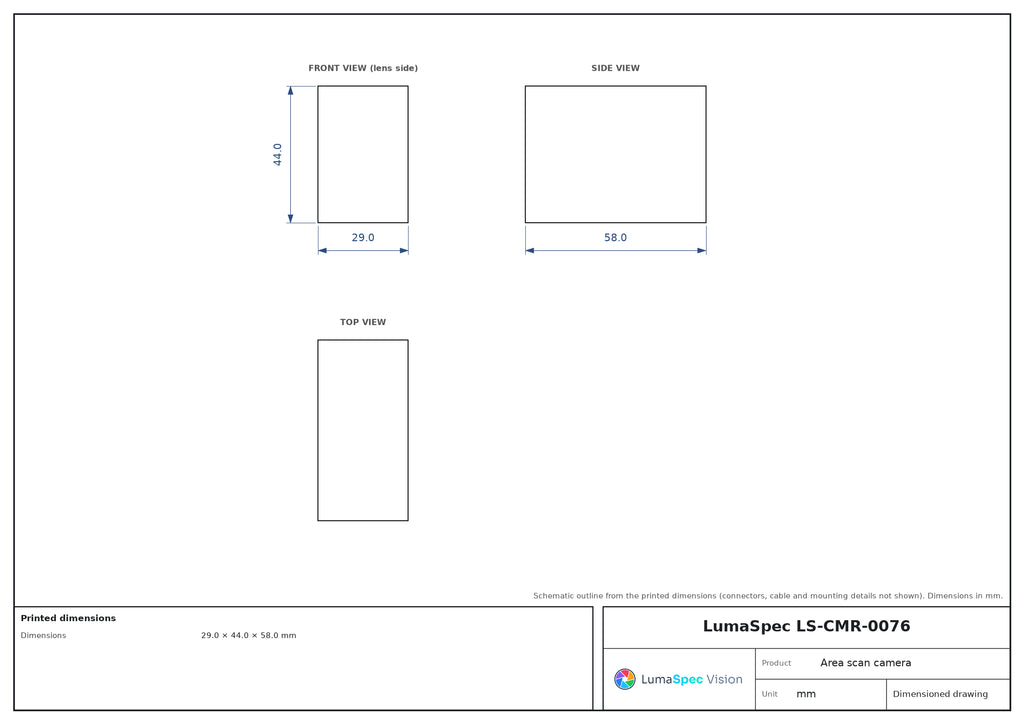

| Dimensions | 29.0 × 44.0 × 58.0 mm |
|---|---|
| Lens mount | C-mount (CS-Mount can be customized) |
| Weight | 100g |
