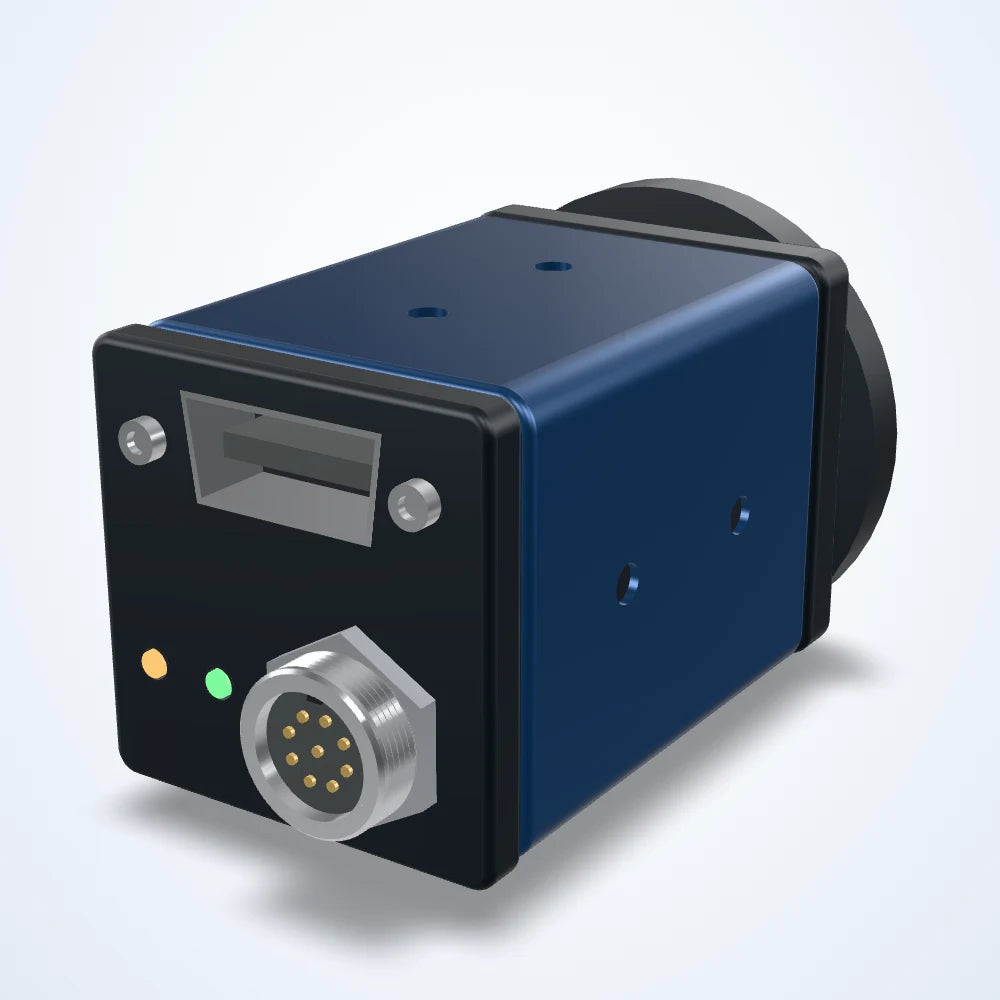

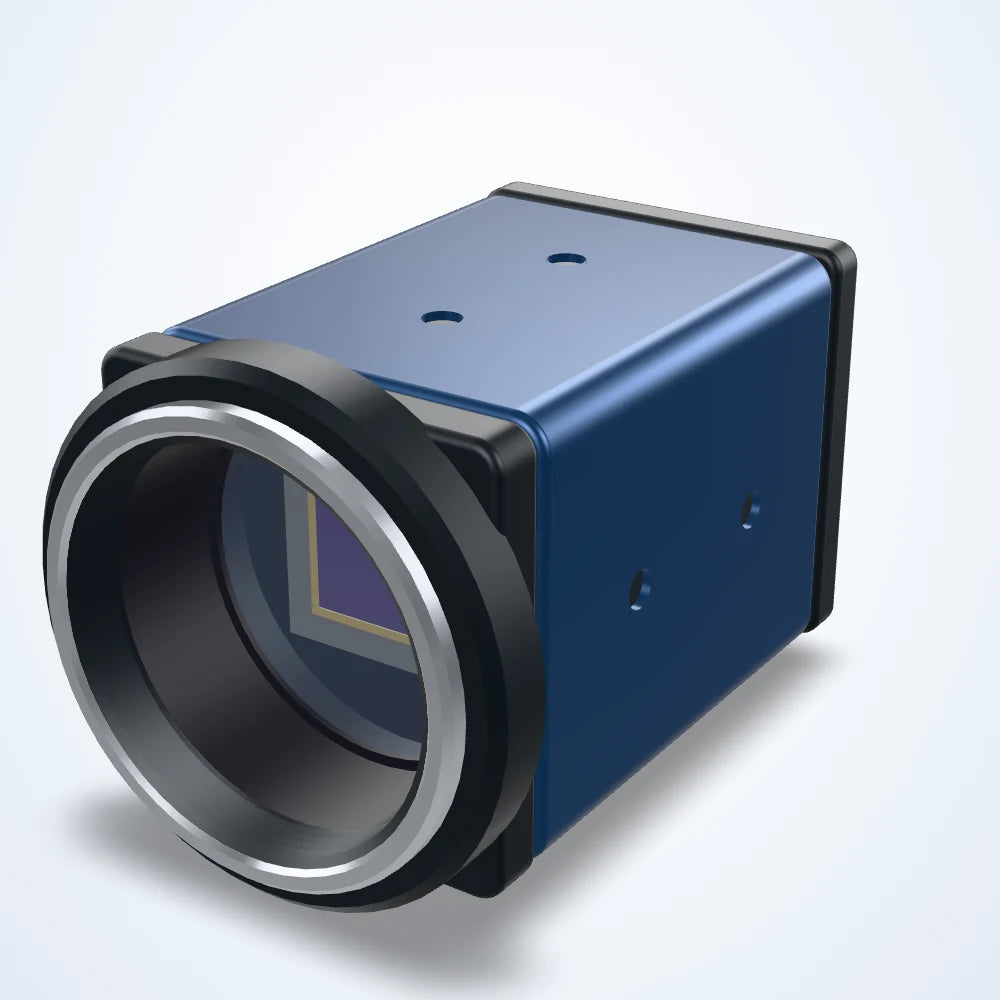

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
12.6 MP Camera Link area scan camera, XGS12000, 1" global shutter, 18 fps (LS-CMR-0081)
Model LS-CMR-0081
- Resolution4096 px x 3072 px
- Sensor1"
- InterfaceCameralink
- Speed18 fps
- Lens mountC-mount
- Pixel size3.2 μm x 3.2 μm
$1,440.00
Ships in 3-4 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12.6 MP area scan camera for inspection, measurement and guidance on the production line. XGS12000 CMOS sensor (1"); 4096 x 3072 pixels of 3.2 μm; up to 18 frames per second; global shutter; Camera Link interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0081 |
|---|
Sensor and imaging
| Resolution | 4096 px x 3072 px |
|---|---|
| Pixel size | 3.2 μm x 3.2 μm |
| Max. frame rate | 18 fps |
| Sensor make | ON Semiconductor |
| Sensor model | XGS12000 |
| Shutter | Global Shutter |
| Sensor size | 1" |
| Sensor type | CMOS |
| Dynamic range | 70.0 dB |
| SNR | >38.0 dB |
| Pixel bit depth | 10 bits |
Interfaces and I/O
| Data interface | Cameralink |
|---|---|
| Digital I/O | 1 input(opto-isolated), ; 1 output(opto-isolated),; 1 bi-directional custom non-isolated I/O |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | Cameralink and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | ● Soft Trigger; ● Hardware Trigger; ● Free Run |
|---|---|
| Power supply | PoCL, DC 6-24 V |
Mechanical
| Dimensions | 29.0 × 29.0 × 43.8 mm |
|---|---|
| Lens mount | C-mount |
| Weight | 80g |
Other models in the Camera Link area scan cameras (LS-CMR-S04) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0071 | 0.4 MP, 1/2.9", Camera Link, Mono/Color | $530.00 | Ships in 3-4 weeks | View |
| LS-CMR-0072 | 2.3 MP, 2/3", Camera Link, Mono/Color | $750.00 | Ships in 3-4 weeks | View |
| LS-CMR-0073 | 3.1 MP, 1/1.8", Camera Link, Mono | $880.00 | Ships in 3-4 weeks | View |
| LS-CMR-0075 | 5 MP, 2/3", Camera Link, Mono | $1,017.00 | Ships in 3-4 weeks | View |
| LS-CMR-0076 | 5 MP, 2/3", Camera Link, Mono | $1,017.00 | Ships in 3-4 weeks | View |
| LS-CMR-0078 | 5 MP, 2/3", Camera Link, Mono | $1,020.00 | Ships in 3-4 weeks | View |
| LS-CMR-0077 | 5 MP, 2/3", Camera Link, Color/Mono | $1,338.00 | Ships in 3-4 weeks | View |
| LS-CMR-0079 | 8.8 MP, 1", Camera Link, Color | $1,390.00 | Ships in 3-4 weeks | View |
| LS-CMR-0082 | 12.6 MP, 1", Camera Link, Mono | $1,450.00 | Ships in 3-4 weeks | View |
| LS-CMR-0084 | 26.2 MP, 1.1", Camera Link, Mono/Color | $1,980.00 | Ships in 3-4 weeks | View |
| LS-CMR-0083 | 26.2 MP, 1.1", Camera Link, Mono | $2,049.00 | Ships in 3-4 weeks | View |
| LS-CMR-0080 | 12.3 MP, 1.1", Camera Link, Mono/Color | $2,280.00 | Ships in 3-4 weeks | View |
| LS-CMR-0085 | 31.4 MP, Camera Link, Mono/Color | $6,089.00 | Ships in 3-4 weeks | View |
| LS-CMR-0074 | 4.2 MP, 1.2", Camera Link | $6,250.00 | Ships in 3-4 weeks | View |
| LS-CMR-0086 | 64.9 MP, Camera Link, Mono/Color | from $6,475.00 | Ships in 3-4 weeks | View |
| LS-CMR-0088 | 150.7 MP, Camera Link, Mono | $16,100.00 Quote | Ships in 3-4 weeks | View |
| LS-CMR-0087 | 150.7 MP, Camera Link, Mono | $17,549.00 Quote | Ships in 3-4 weeks | View |
