Area scan cameras

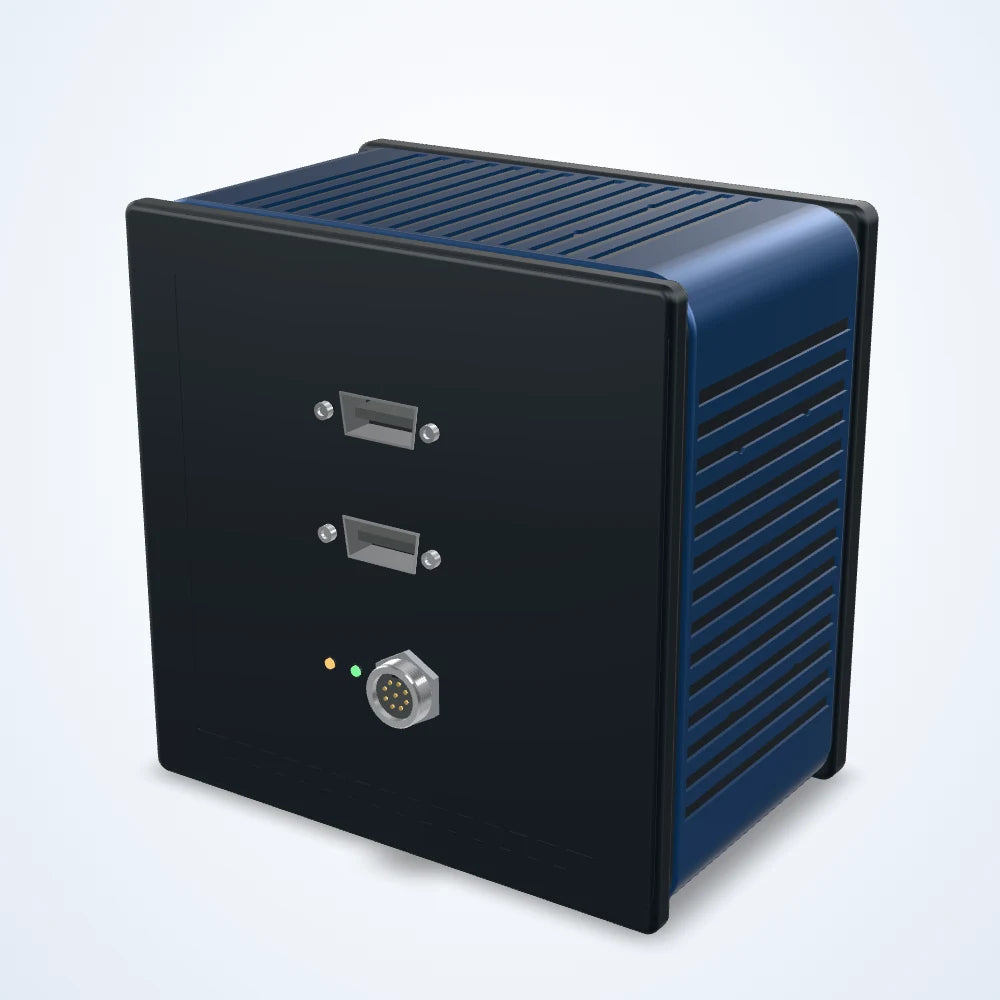

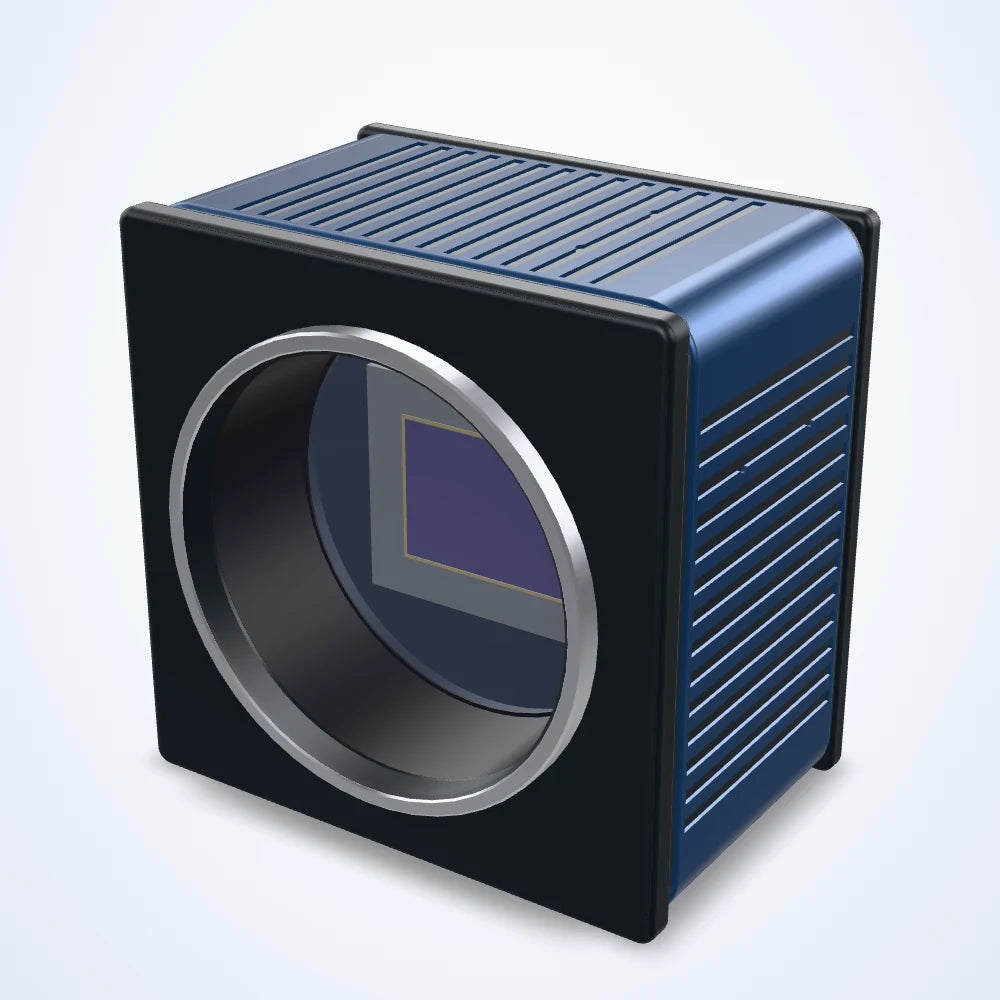

150.7 MP Camera Link area scan camera, IMX411, rolling shutter, 5.1 fps, M72 (LS-CMR-0088)
Model LS-CMR-0088
- Resolution14160 px x 10640 px
- Sensor66.7 mm
- InterfaceCameralink
- Speed5.1 fps
- Lens mountM72
- Pixel size3.76 μm x 3.76 μm
$16,100.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
1.31 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
150.7 MP area scan camera for inspection, measurement and guidance on the production line. IMX411 CMOS sensor; 14160 x 10640 pixels of 3.76 μm; up to 5.1 frames per second; rolling shutter; Camera Link interface; M72 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0088 |
|---|
Sensor and imaging
| Resolution | 14160 px x 10640 px |
|---|---|
| Pixel size | 3.76 μm x 3.76 μm |
| Max. frame rate | 5.1 fps |
| Sensor make | Sony |
| Sensor model | IMX411 |
| Shutter | Rolling Shutter |
| Sensor size | 66.7 mm |
| Sensor type | CMOS |
| Dynamic range | 90 dB |
| Pixel bit depth | 12 bits |
| SNR | 46.4 dB |
Interfaces and I/O
| Data interface | Cameralink |
|---|---|
| Digital I/O | Opto-isolated input x 3, opto-isolated output x 3, RS232 x 1 |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -30~50°C (Working) |
|---|---|
| Certification | Cameralink, GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run |
|---|---|
| Power supply | DC 24 V |
| Power consumption | 24 V@18 W |
Mechanical

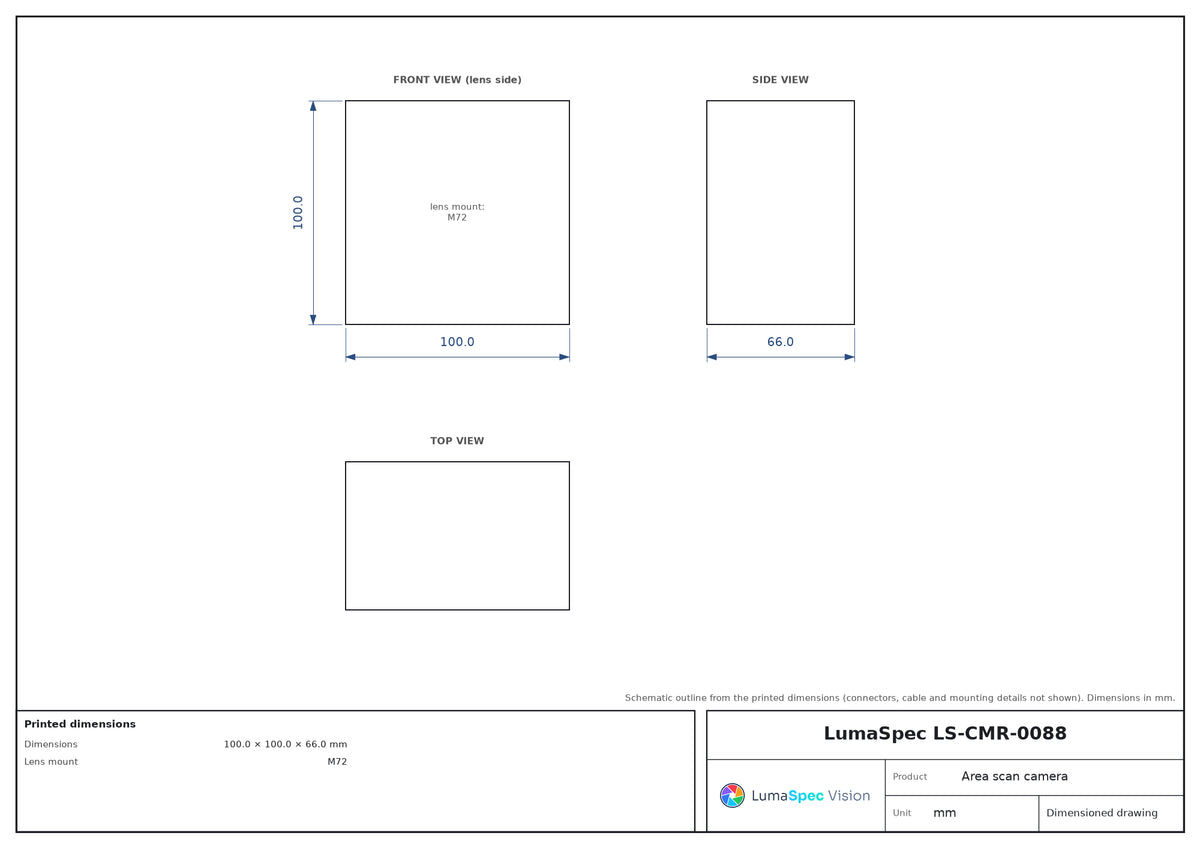

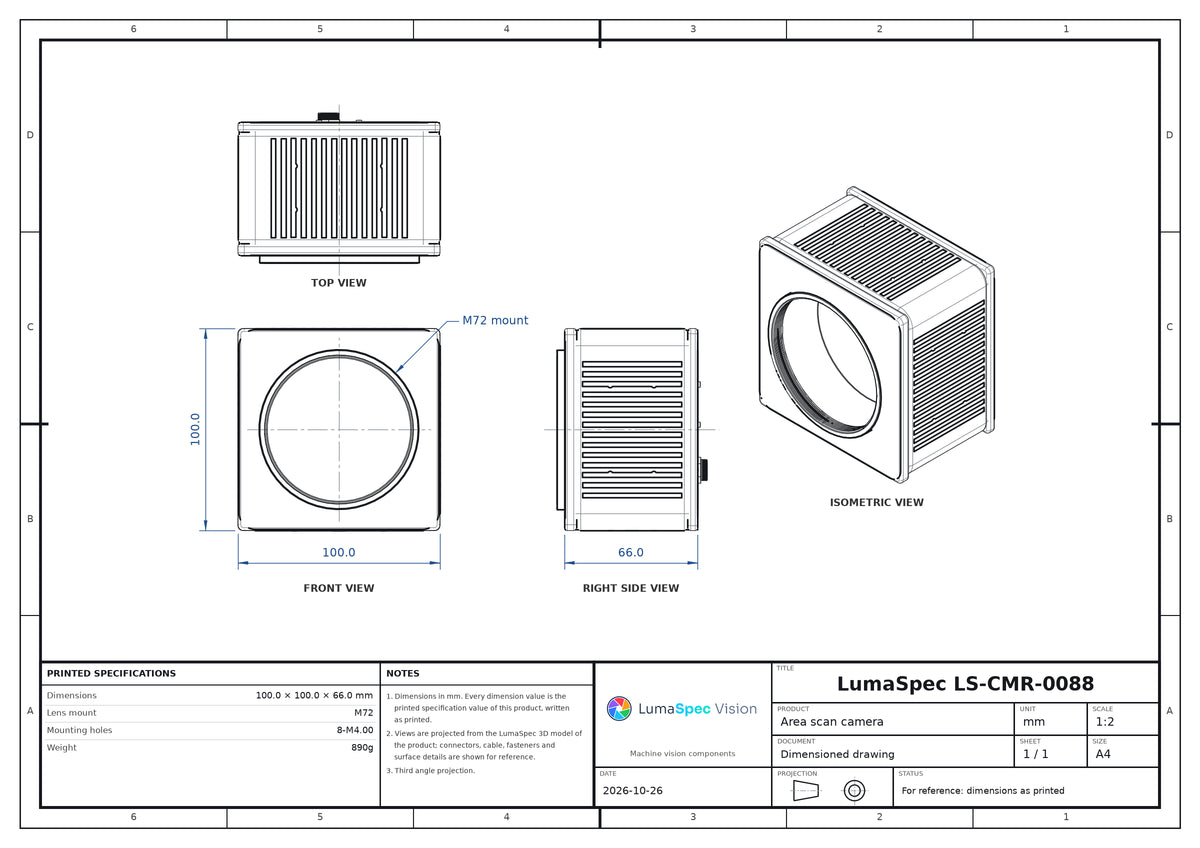

| Dimensions | 100.0 × 100.0 × 66.0 mm |
|---|---|
| Lens mount | M72 |
| Weight | 890g |
| Mounting holes | 8-M4.00 |
Other models in the Camera Link area scan cameras (LS-CMR-S04) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0071 | 0.4 MP, 1/2.9", Camera Link, Mono/Color | $530.00 | Ships in 3-4 weeks | View |
| LS-CMR-0072 | 2.3 MP, 2/3", Camera Link, Mono/Color | $750.00 | Ships in 3-4 weeks | View |
| LS-CMR-0073 | 3.1 MP, 1/1.8", Camera Link, Mono | $880.00 | Ships in 3-4 weeks | View |
| LS-CMR-0075 | 5 MP, 2/3", Camera Link, Mono | $1,017.00 | Ships in 3-4 weeks | View |
| LS-CMR-0076 | 5 MP, 2/3", Camera Link, Mono | $1,017.00 | Ships in 3-4 weeks | View |
| LS-CMR-0078 | 5 MP, 2/3", Camera Link, Mono | $1,020.00 | Ships in 3-4 weeks | View |
| LS-CMR-0077 | 5 MP, 2/3", Camera Link, Color/Mono | $1,338.00 | Ships in 3-4 weeks | View |
| LS-CMR-0079 | 8.8 MP, 1", Camera Link, Color | $1,390.00 | Ships in 3-4 weeks | View |
| LS-CMR-0081 | 12.6 MP, 1", Camera Link, Mono | $1,440.00 | Ships in 3-4 weeks | View |
| LS-CMR-0082 | 12.6 MP, 1", Camera Link, Mono | $1,450.00 | Ships in 3-4 weeks | View |
| LS-CMR-0084 | 26.2 MP, 1.1", Camera Link, Mono/Color | $1,980.00 | Ships in 3-4 weeks | View |
| LS-CMR-0083 | 26.2 MP, 1.1", Camera Link, Mono | $2,049.00 | Ships in 3-4 weeks | View |
| LS-CMR-0080 | 12.3 MP, 1.1", Camera Link, Mono/Color | $2,280.00 | Ships in 3-4 weeks | View |
| LS-CMR-0085 | 31.4 MP, Camera Link, Mono/Color | $6,089.00 | Ships in 3-4 weeks | View |
| LS-CMR-0074 | 4.2 MP, 1.2", Camera Link | $6,250.00 | Ships in 3-4 weeks | View |
| LS-CMR-0086 | 64.9 MP, Camera Link, Mono/Color | from $6,475.00 | Ships in 3-4 weeks | View |
| LS-CMR-0087 | 150.7 MP, Camera Link, Mono | $17,549.00 Quote | Ships in 3-4 weeks | View |
