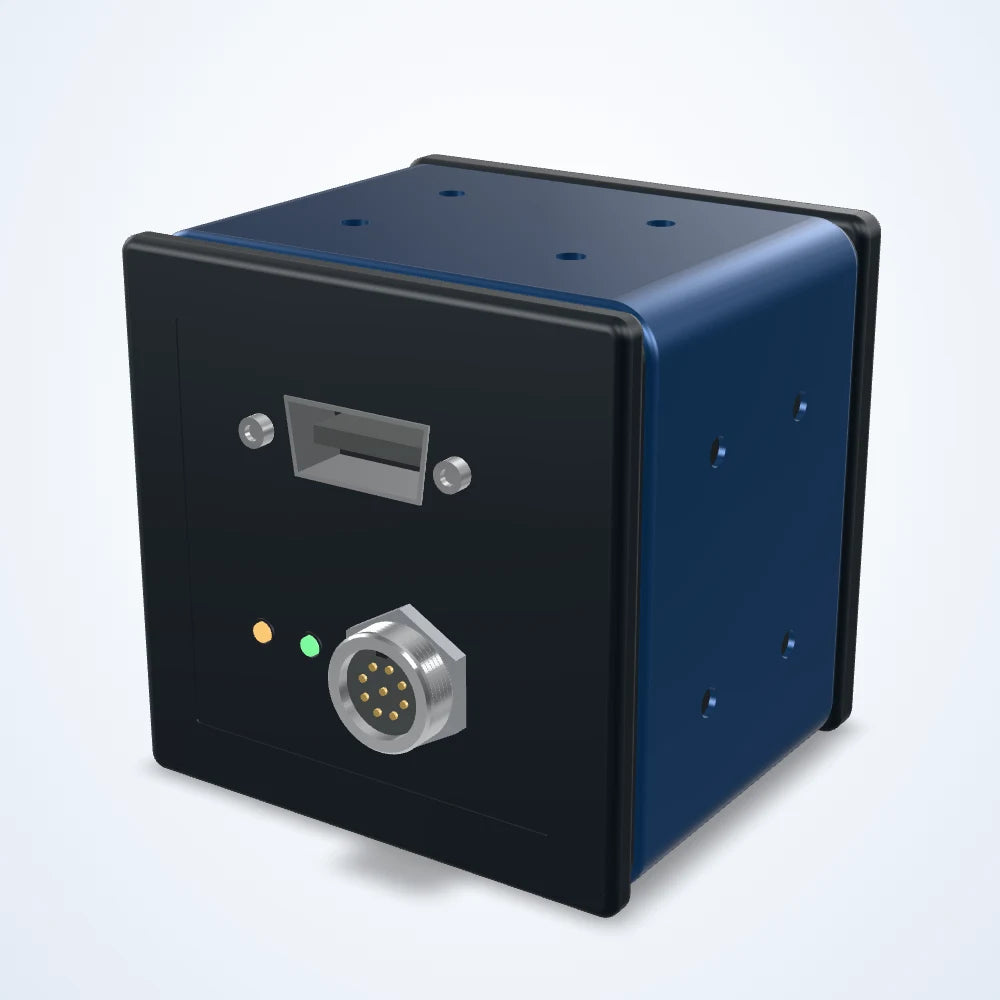

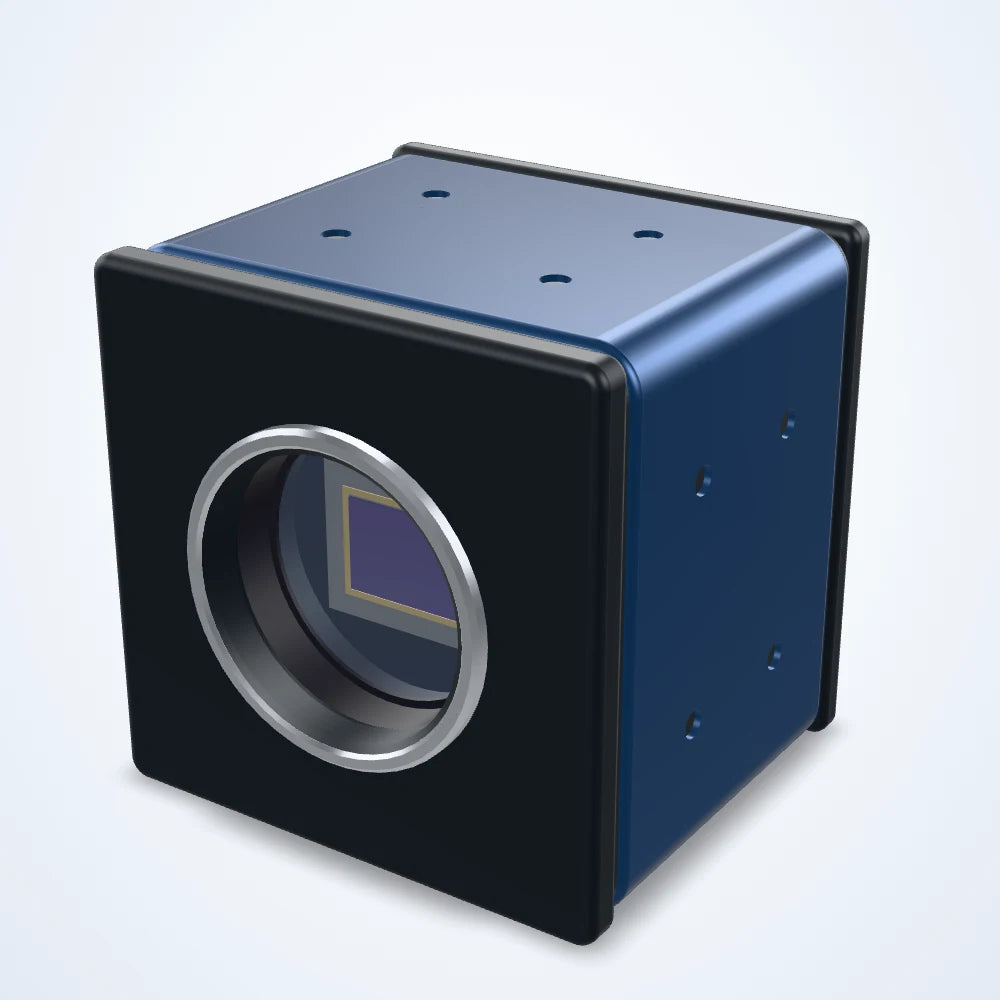

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
26.2 MP Camera Link area scan camera, GMAX0505, 1.1" global shutter, 30 fps (LS-CMR-0083)
Model LS-CMR-0083
- Resolution5120 × 5120 (25MP)
- Sensor1.1"
- InterfaceCameraLink
- Speed30 fps
- Lens mountC-mount
- Pixel size2.5 μm
$2,049.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 30 frames per second; global shutter; Camera Link interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0083 |
|---|
Sensor and imaging
| Sensor model | Gpixel GMAX0505 |
|---|---|
| Resolution | 5120 × 5120 (25MP) |
| Max. frame rate | 30 fps |
| Pixel size | 2.5 μm |
| Sensor size | 1.1" |
| Shutter | Global |
| Pixel bit depth | 10-bit |
| Sensor make | Sony |
| Sensor type | CMOS |
| Dynamic range | 70.0 dB |
| SNR | 41.0 dB |
Interfaces and I/O
| Data interface | CameraLink |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -30~50°C (Working) |
|---|---|
| Certification | Cameralink and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Output | Mono |
|---|---|
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
| Power supply | PoCL, DC 6-24 V |
| Power consumption | 12 V@2.4 W |
Mechanical

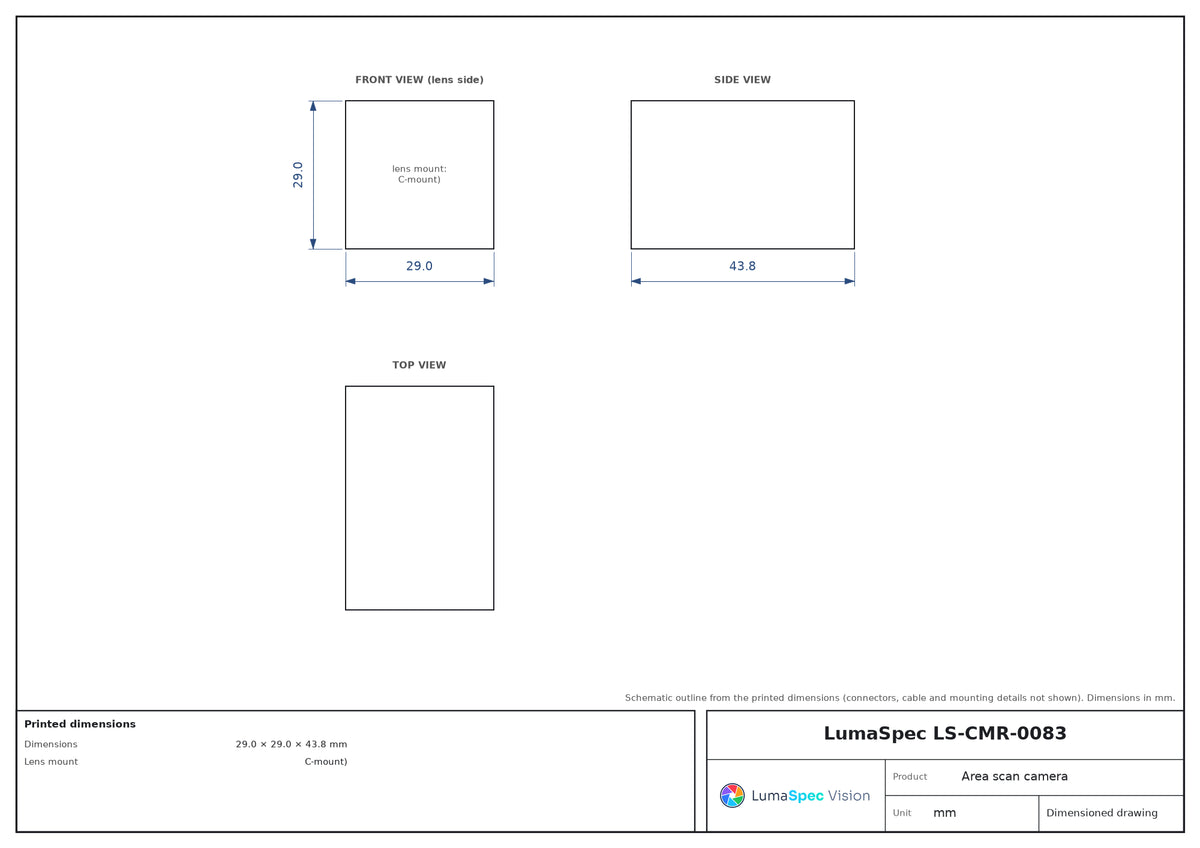

| Dimensions | 29.0 × 29.0 × 43.8 mm |
|---|---|
| Lens mount | C-mount) |
| Weight | 80g |
| Mounting holes | 4-M3; 5-M3; 4-M2 |
