Area scan cameras

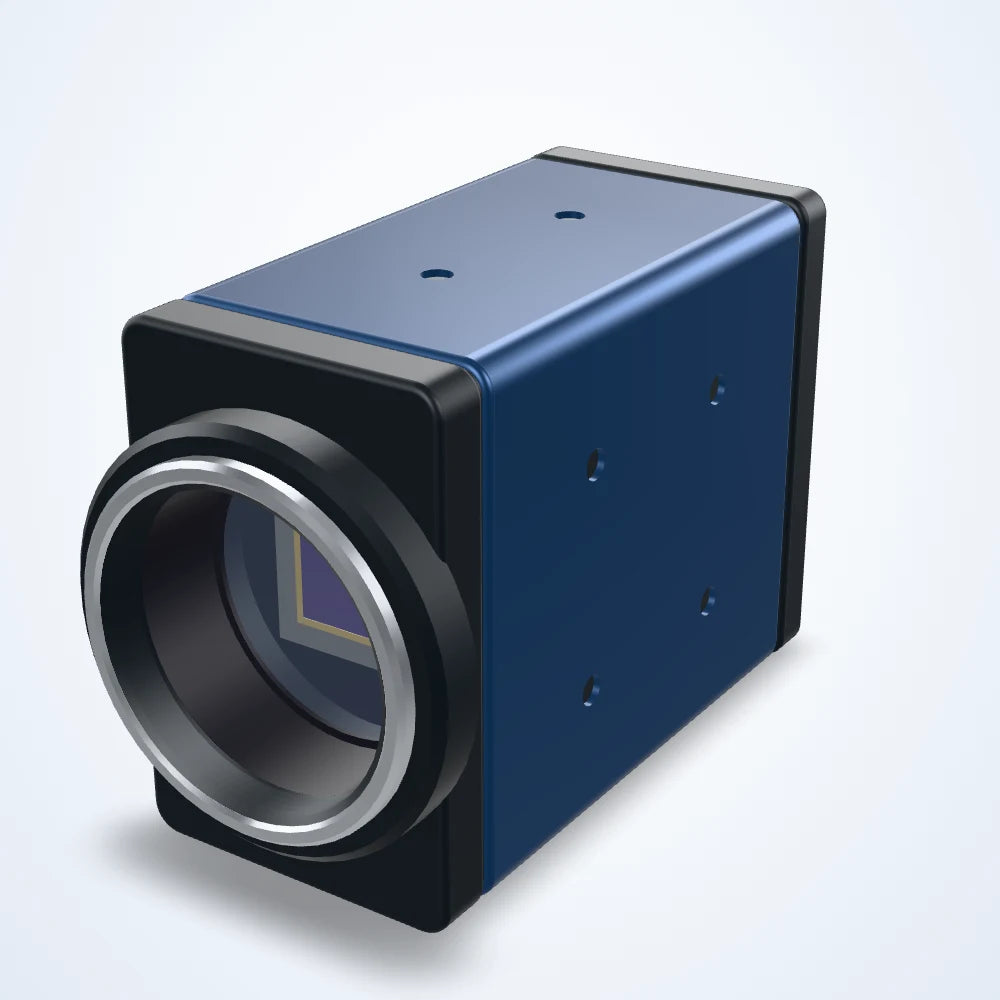

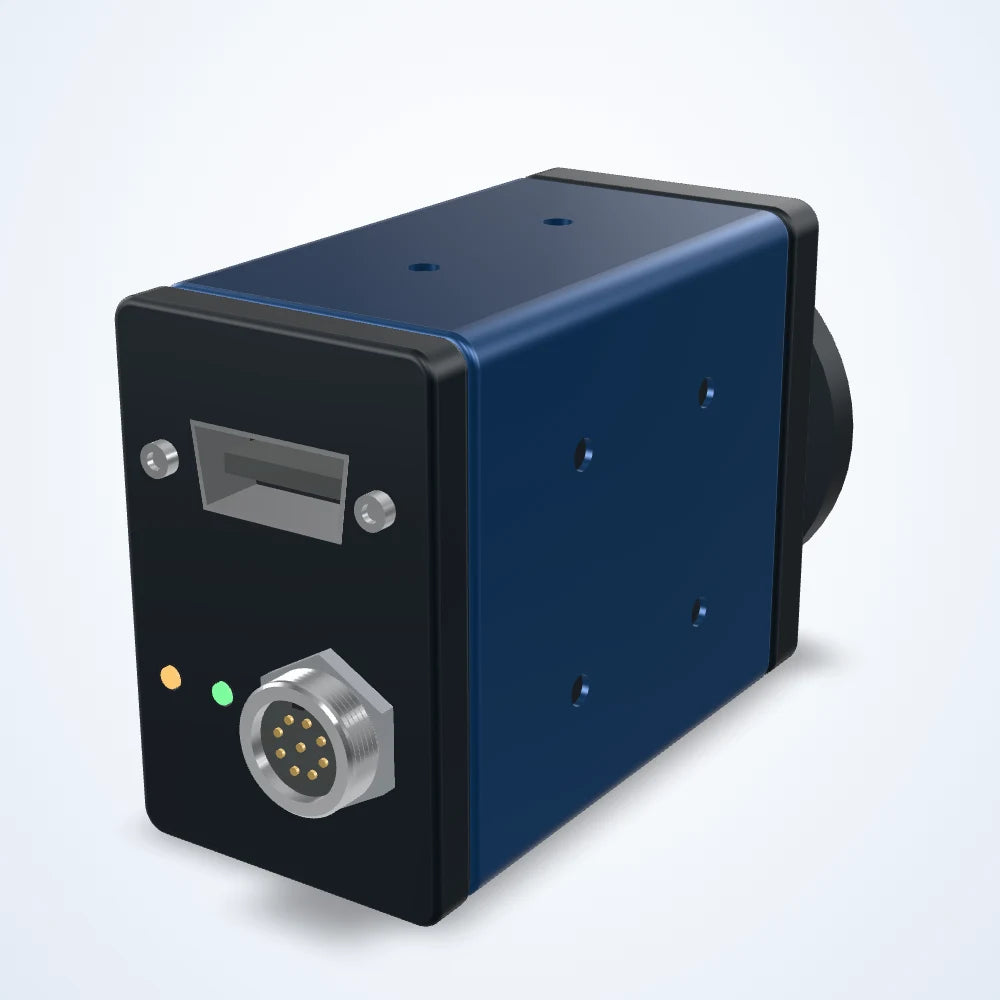

3.1 MP Camera Link area scan camera, IMX252, 1/1.8" global shutter, 188 fps (LS-CMR-0073)
Model LS-CMR-0073
- Resolution2048 px x 1536 px
- Sensor1/1.8"
- InterfaceCameralink
- Speed188 fps
- Lens mountC-mount
- Pixel size3.45 μm x 3.45 μm
$880.00
Ships in 3-4 weeks
0.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.1 MP area scan camera for inspection, measurement and guidance on the production line. IMX252 CMOS sensor (1/1.8"); 2048 x 1536 pixels of 3.45 μm; up to 188 frames per second; global shutter; Camera Link interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0073 |
|---|
Sensor and imaging
| Resolution | 2048 px x 1536 px |
|---|---|
| Pixel size | 3.45 μm x 3.45 μm |
| Max. frame rate | 188 fps |
| Sensor make | Sony |
| Sensor model | IMX 252 |
| Shutter | Global Shutter |
| Sensor size | 1/1.8" |
| Sensor type | CMOS |
| SNR | 41.0 dB |
| Pixel bit depth | 10 bits |
| Dynamic range | 70.0 dB |
Interfaces and I/O
| Data interface | Cameralink |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Environment and compliance
| Certification | Cameralink and GenICam |
|---|---|
| Operating temperature | -30~80 °C (Storage), -30~50°C (Working) |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | ● Soft Trigger; ● Hardware Trigger; ● Free Run |
|---|---|
| Power supply | PoCL, DC 6-24 V |
| Power consumption | 12 V@3.0 W |
Mechanical

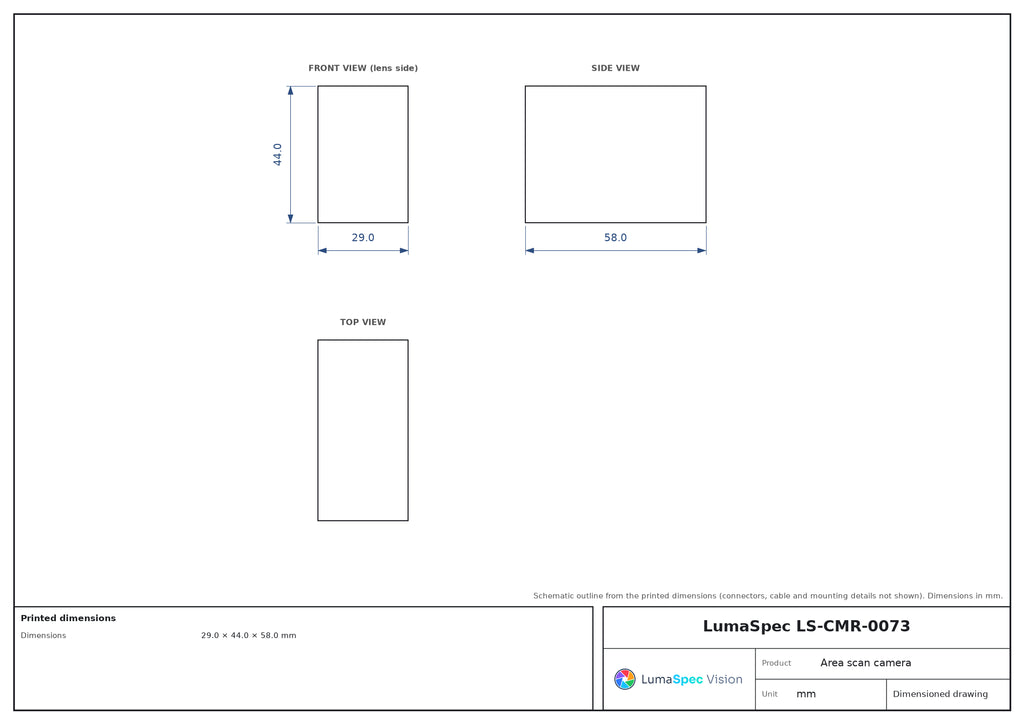

| Dimensions | 29.0 × 44.0 × 58.0 mm |
|---|---|
| Lens mount | C-mount (CS-Mount can be customized) |
| Weight | 100g |
| Mounting holes | 2-M3 |
