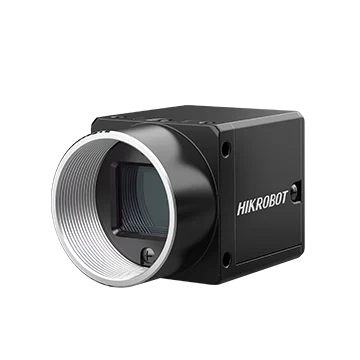

CH Series USB3.0 Area Scan Cameras

Area scan cameras

CH Series USB3.0 Area Scan Cameras

  • 44 models
  • from $859.00
  • Series HIK-CH-USB

The CH Series USB3.0 Area Scan Cameras is a range of 44 area scan cameras from Hikrobot, from $859.00. It comes in 25 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 44 models Series datasheet (PDF)

The series at a glance

Sizes / versions
5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 5 MP, USB3, 5 MP, USB3, Color, 5 MP, USB3, Mono, 8.8 MP, 1", USB3, Color, 8.8 MP, 1", USB3, Mono, 10.1 MP, 1", USB3, Color, 10.1 MP, 1", USB3, Mono, 12.3 MP, 1.1", USB3, Color, 12.3 MP, 1.1", USB3, Mono, 12.3 MP, 1/1.1", USB3, Color, 12.3 MP, 1/1.1", USB3, Mono, 12.3 MP, USB3, Color, 12.3 MP, USB3, Mono, 12.6 MP, 1.1", USB3, Color and 9 more
Interface
USB3
Resolution
5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
Shutter
Global
Lens mount
C-mount
Sensor format
2/3", 1", 1.1" - 1.2"
Colour
Color, Mono

Features

  • Compact design with four-side mounting
  • LSC lens shading correction, Sequencer and Super Palette functions
  • Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
  • Supports hardware trigger, software trigger and free-run modes
  • Custom ROI with horizontal and vertical mirroring
  • Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
  • New-generation housing design with four-side mounting
  • Sequencer, SuperPalette and SuperBayer functions for excellent image quality

All 44 models in the CH Series USB3.0 Area Scan Cameras

Link
MVGL-AC245G-74UP5 MP, USB32448 × 204874.1 fps@2448 × 2048Mono 82/3”$859.00View
HIK-C050-C5 MP, USB3, Color2448 × 204879 fps@2448 × 2048 Bayer GR 82/3”$859.00View
HIK-C120-C12.3 MP, 1.1", USB3, Color4096 × 300023.1 fps@4096 × 3000 Bayer RG 81.1"$1,349.00View
MV-CH050-60UM5 MP, 2/3", USB3, Mono2448 × 204879 fps @ 2448 × 2048 Mono 82/3"$1,489.00View
MV-CH050-60UC5 MP, 2/3", USB3, Color2448 × 204879 fps @ 2448 × 2048 Bayer GR 82/3"$1,489.00View
MV-CH050-10UP5 MP, USB32448 × 204874.1 fps@2448 × 2048 Mono 82/3”$1,489.00View
MV-CH050-10UM(EoL)5 MP, USB3, Mono2448 × 204874 fps@2448 × 2048 Mono 82/3”$1,489.00quoteView
MV-CH050-10UM5 MP, 2/3", USB3, Mono2448 × 204874.1 fps @ 2448 × 2048 Mono 82/3"$1,619.00View
MV-CH050-10UC5 MP, 2/3", USB3, Color2448 × 204874.1 fps @ 2448 × 2048 Bayer RG 82/3"$1,619.00View
MVGL-AC512G-14UN26.2 MP, USB35120 × 512014 fps @5120 × 5120 Mono 81.1”$1,629.00View
MV-CH089-10UM8.8 MP, 1", USB3, Mono4096 × 216032 fps @ 4096 × 2160 Mono 8; 32 fps @ 4096 × 2161"$1,979.00quoteView
MV-CH089-10UC8.8 MP, 1", USB3, Color4096 × 216032 fps @ 4096 × 2160 Mono 8; 32 fps @ 4096 × 2161"$1,979.00quoteView
MV-CH100-60UM10.1 MP, 1", USB3, Mono4096 × 246036 fps @ 4096 × 2460 Mono 81"$2,119.00View
MV-CH100-60UC10.1 MP, 1", USB3, Color4096 × 246036 fps @ 4096 × 2460 Bayer GR 81"$2,119.00View
MV-CH120-10UM(EoL)12.3 MP, 1.1", USB3, Mono4096 × 300023.1 fps @ 4096 × 30001.1"$2,339.00quoteView
MV-CH120-10UC(EoL)12.3 MP, 1.1", USB3, Color4096 × 300023.1 fps @ 4096 × 30001.1"$2,339.00quoteView
MV-CH120-10UM12.3 MP, USB3, Mono4096 × 300030.5 fps @ 4096 × 3000 Mono 81.1”$2,339.00View
MV-CH120-10UC12.3 MP, USB3, Color4096 × 300030.5 fps @ 4096 × 3000 Bayer RG 81.1”$2,339.00View
MV-CH120-10UM V512.3 MP, USB3, Mono4096 × 300030 fps @ 4096 × 3000 Mono 81.1”$2,339.00View
MV-CH120-10UC V512.3 MP, USB3, Color4096 × 300030 fps @ 4096 × 3000 Bayer RG 81.1”$2,339.00View
MV-CH120-10UM(TK)12.3 MP, USB3, Mono4096 × 300023.1 fps @4096 × 30001.1”$2,339.00View
MV-CH120-11UM12.3 MP, 1.1", USB3, Mono4096 × 300030.3 fps @ 4096 × 3000 Mono 81.1"$2,339.00quoteView
MV-CH120-11UC12.3 MP, 1.1", USB3, Color4096 × 300030.3 fps @ 4096 × 3000 Bayer RG 81.1"$2,339.00quoteView
MV-CH120-60UM12.3 MP, 1.1", USB3, Mono4096 × 300030.7 fps @ 4096 × 3000 Mono 81.1"$2,339.00quoteView
MV-CH120-60UC12.3 MP, 1.1", USB3, Color4096 × 300030.7 fps @ 4096 × 3000 Bayer GB 81.1"$2,339.00quoteView
MV-CH120-60UM V512.3 MP, 1.1", USB3, Mono4096 × 300031.3 fps @ 4096 × 3000 Mono 81.1"$2,339.00View
MV-CH120-60UC V512.3 MP, 1.1", USB3, Color4096 × 300031.3 fps @ 4096 × 3000 Bayer GB 81.1"$2,339.00View
MV-CH120-60VM12.3 MP, 1.1", USB3, Mono4096 × 300060.2 fps @ 4096 × 3000 Mono 81.1"$2,339.00View
MV-CH120-60VC12.3 MP, 1.1", USB3, Color4096 × 300060.2 fps @ 4096 × 3000 Bayer GB 81.1"$2,339.00View
MV-CH123-10UM12.3 MP, 1/1.1", USB3, Mono4096 × 300031.5 fps @ 4096 × 3000 Mono 81/1.1"$2,339.00View
MV-CH123-10UC12.3 MP, 1/1.1", USB3, Color4096 × 300031.5 fps @ 4096 × 3000 Bayer RG 81/1.1"$2,339.00View
MV-CH120-20UM12.6 MP, USB3, Mono4096 × 307228 fps @ 4096 × 3072 Mono 81”$2,359.00View
MV-CH120-20UC12.6 MP, USB3, Color4096 × 307228 fps @ 4096 × 3072 Bayer RG 81”$2,359.00View
MV-CH120-90UM V512.6 MP, 1.1", USB3, Mono4096 × 307230 fps @ 4096 × 3072 Mono 81.1"$2,359.00View
MV-CH120-90UC V512.6 MP, 1.1", USB3, Color4096 × 307230 fps @ 4096 × 3072 Bayer GB 81.1"$2,359.00View
MV-CH140-60UM13.3 MP, 1", USB3, Mono4708 × 282427 fps @ 4708 × 2824 Mono 81"$2,429.00View
MV-CH250-90UM V426.2 MP, 1.1", USB3, Mono5120 × 512014 fps @5120 × 5120 Mono 81.1"$2,949.00quoteView
MV-CH250-90UC V426.2 MP, 1.1", USB3, Color5120 × 512014 fps @5120 × 5120 Bayer BG 81.1"$2,949.00quoteView
MV-CH250-90UM26.2 MP, USB3, Mono5120 × 512014 fps @5120 × 5120 Mono 81.1”$2,949.00quoteView
MV-CH250-90UC26.2 MP, USB3, Color5120 × 512014 fps @5120 × 5120 Bayer BG 81.1”$2,949.00quoteView
MV-CH250-90UN V426.2 MP, 1.1", USB3, Mono5120 × 512014 fps @5120 × 5120 Mono 81.1"$3,409.00quoteView
MV-CH250-90VM26.2 MP, 1.1", USB3, Mono5120 × 512030 fps @5120 × 5120 Mono 81.1"$3,409.00quoteView
MV-CH250-90VC26.2 MP, 1.1", USB3, Color5120 × 512030 fps @5120 × 5120 Bayer BG 81.1"$3,409.00quoteView
MV-CH250-90UN26.2 MP, USB35120 × 512014 fps @5120 × 5120 Mono 81.1”$3,409.00quoteView
