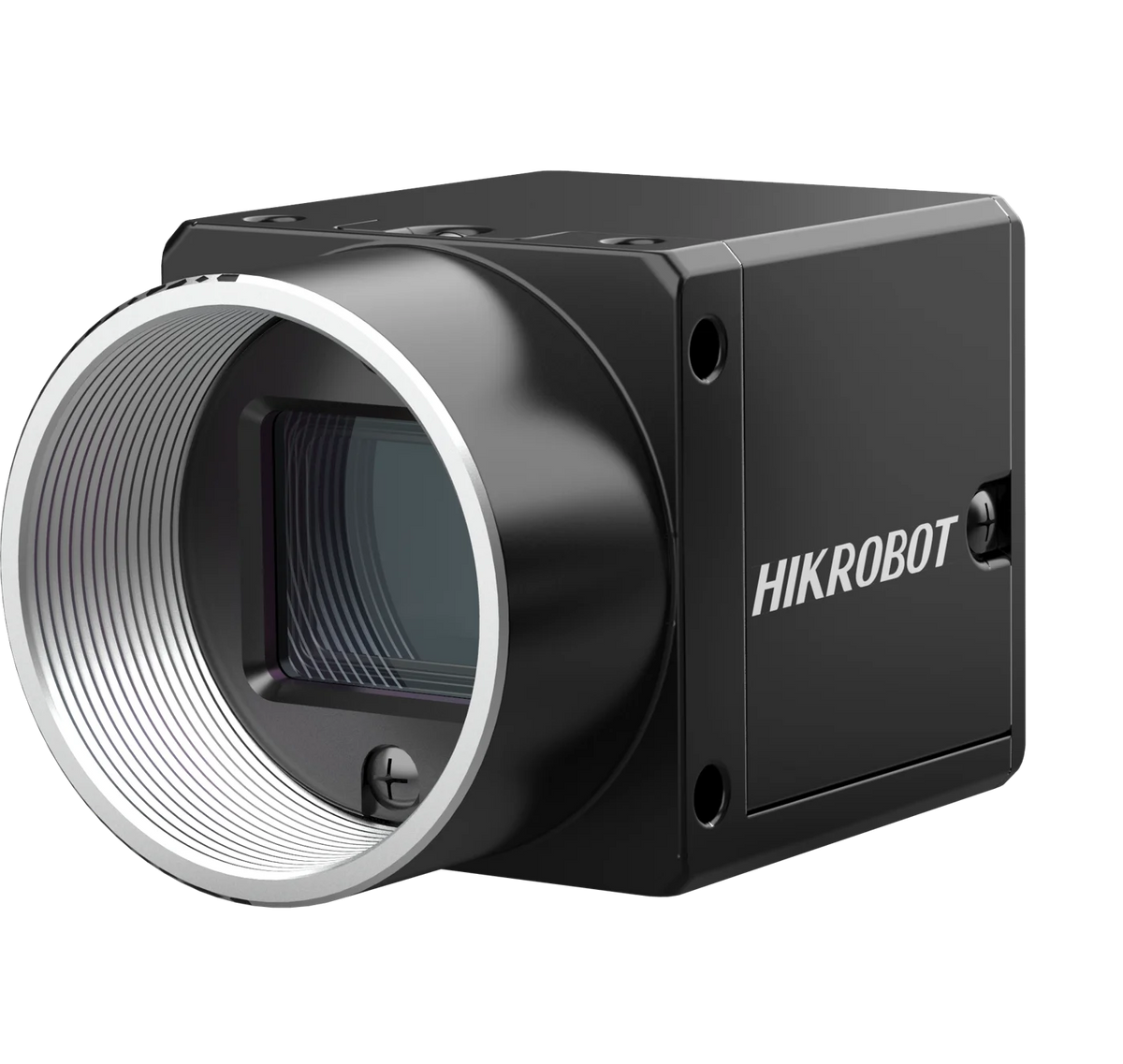

Hikrobot MV-CH123-10UM 12.3MP Area Scan Camera, USB3, IMX545, Mono

Model MV-CH123-10UMHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed31.5 fps @ 4096 × 3000 Mono 8
Lens mountC-mount
Mono / colourMono

$2,339.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH123-10UM 12.3MP Area Scan Camera, USB3, IMX545, Mono. Supports LSC, sequencer, passive transfer function, etc. Color camera supports interpolation, white balance, CCM, super palette, super bayer, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH123-10UM
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX545
Pixel size	2.74 μm × 2.74 μm
Sensor size	1/1.1"
Resolution	4096 × 3000
Max. frame rate	31.5 fps @ 4096 × 3000 Mono 8
Dynamic range	69.4 dB
SNR	39.4 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 2 μs; Standard exposure mode: 3 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 2.1 W @ 5 VDC; (USB 3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Supports LSC, sequencer, passive transfer function, etc.
Color camera supports interpolation, white balance, CCM, super palette, super bayer, etc.
Adopts brand new design and supports four-side installation.
Adopts compact design for small spatial installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
