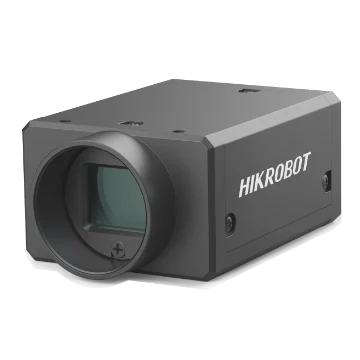

Hikrobot MV-CH120-11UC 12MP Area Scan Camera, USB3, IMX304, High-speed version, Color

Model MV-CH120-11UCHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed30.3 fps @ 4096 × 3000 Bayer RG 8
Lens mountC-mount
Mono / colourColor

$2,339.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-11UC 12MP Area Scan Camera, USB3, IMX304, High-speed version, Color. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc. Supports hardware triggering, software triggering and free run mode.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-11UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX304
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	30.3 fps @ 4096 × 3000 Bayer RG 8
Dynamic range	72.2 dB
SNR	40.2 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB power supply
Power consumption	Typ. 4.7 W @ 5 VDC (USB 3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
Supports hardware triggering, software triggering and free run mode.
Supports customized ROI, and horizontal and vertical reverse image output.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
