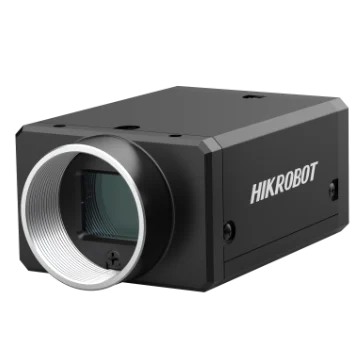

Hikrobot MV-CH120-10UM(EoL) 12MP Area Scan Camera, USB3, IMX304, Mono

Model MV-CH120-10UM(EoL)Hikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed23.1 fps @ 4096 × 3000
Lens mountC-mount
Mono / colourMono

$2,339.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-10UM(EoL) 12MP Area Scan Camera, USB3, IMX304, Mono. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-10UM(EoL)
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX304
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	23.1 fps @ 4096 × 3000
Dynamic range	72.2 dB
SNR	40.2 dB
Gain	0 dB to 20 dB
Exposure time	UltraShort exposure mode: 2 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB 3.0 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.

Electrical

Power supply	12 VDC, supports USB3.0 power supply
Power consumption	Typ. 3.5 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
Supports hardware triggering, software triggering and free run mode.
Adopts M2 screw holes for securing cable that connects USB3.0 interface.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
