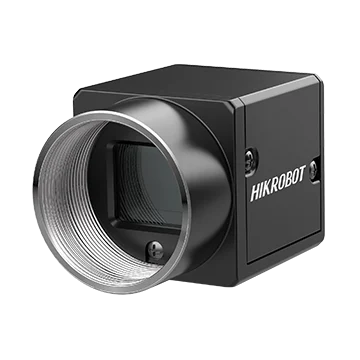

Hikrobot MV-CH050-10UM(EoL) 5 MP USB 3.0 area scan camera, IMX250, Mono

Model MV-CH050-10UM(EoL)Hikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed74 fps@2448 × 2048 Mono 8
Lens mountC-mount
Mono / colourMono

$1,489.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH050-10UM(EoL) 5 MP USB 3.0 area scan camera, IMX250, Mono. Auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT and more Supports hardware trigger, software trigger and free-run modes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH050-10UM(EoL)
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony IMX250
Pixel size	3.45 μm × 3.45 μm
Sensor size	2/3”
Resolution	2448 × 2048
Max. frame rate	74 fps@2448 × 2048 Mono 8
Dynamic range	75.4 dB
SNR	40 dB
Gain	0 dB ~ 17 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	3.5 W @ 5 VDC (USB-powered)

Mechanical

Lens mount	C-Mount
Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT and more
Supports hardware trigger, software trigger and free-run modes
Custom ROI with horizontal and vertical mirroring
Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
