Hikrobot MV-CH050-60UC 5MP Area Scan Camera, USB3, Color

Area scan cameras

Hikrobot HIK-C050-C 5 MP 2/3" CMOS USB3.0 industrial area scan camera

Model HIK-C050-CHikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed79 fps@2448 × 2048 Bayer GR 8
Lens mountC-mount
Mono / colourColor

$859.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot HIK-C050-C 5 MP 2/3" CMOS USB3.0 industrial area scan camera. New-generation housing design with four-side mounting Sequencer, SuperPalette and SuperBayer functions for excellent image quality

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	HIK-C050-C
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	3.45 μm × 3.45 μm
Sensor size	2/3”
Resolution	2448 × 2048
Max. frame rate	79 fps@2448 × 2048 Bayer GR 8
Dynamic range	73.9 dB
SNR	42.4 dB
Gain	High full-well mode: 0 dB to 13 dB; High sensitivity mode: 0 dB to 24 dB
Exposure time	High full-well mode: 30 μs to 10 sec; High-sensitivity mode: 5 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer GR 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (–14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 2.2 W @ 5 VDC (USB 3.0 provides power supply)

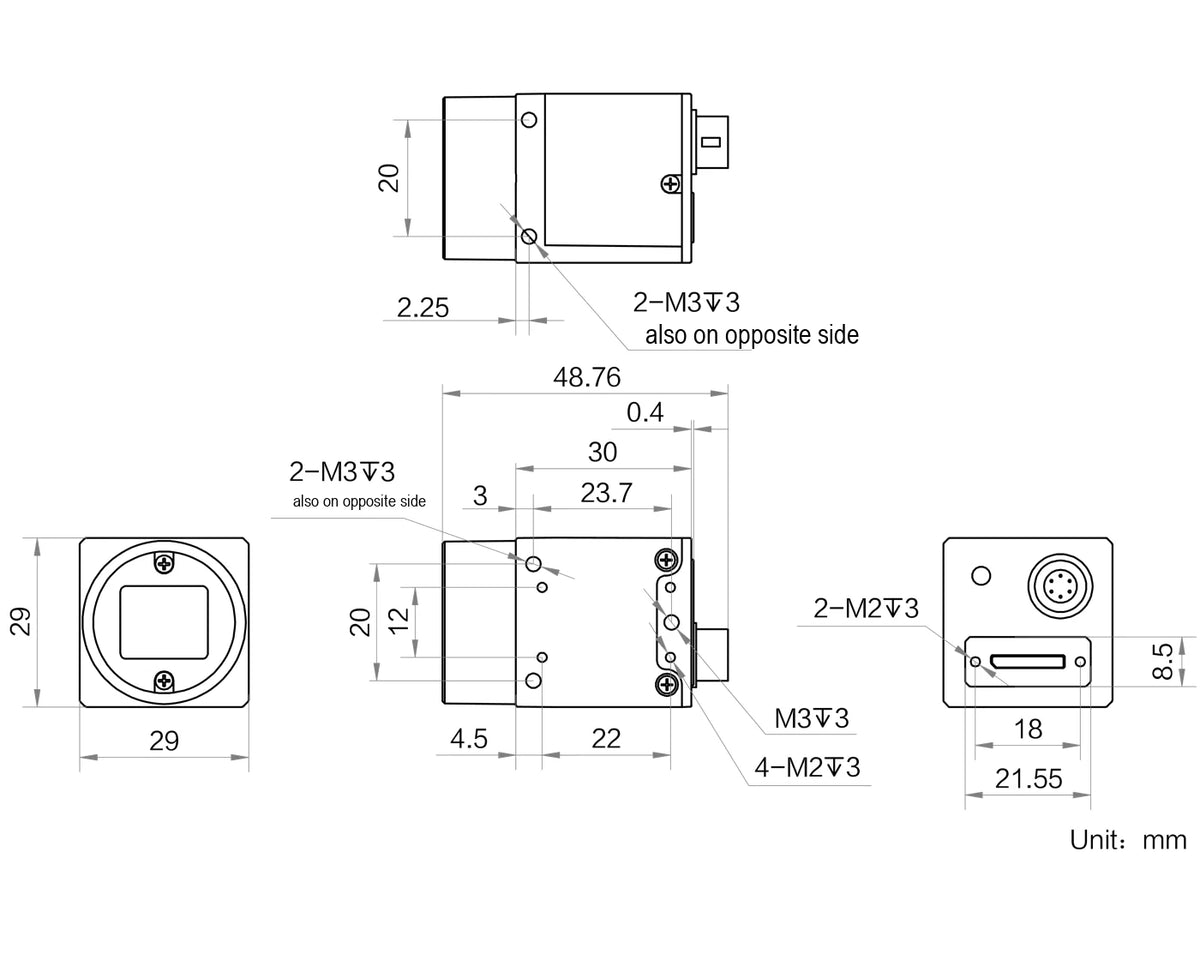

Mechanical

Lens mount	C-Mount
Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Datasheet (PDF, Chinese)HIK-C050-C · 659 KB

Features

New-generation housing design with four-side mounting
Sequencer, SuperPalette and SuperBayer functions for excellent image quality
Auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT and more
Supports hardware trigger, software trigger and free-run modes
Custom ROI with horizontal and vertical mirroring
Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
