Area scan cameras

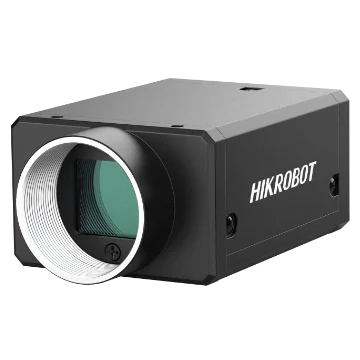

Hikrobot MV-CH120-60VM 12MP Area Scan Camera, Dual USB3.0, Mono

Model MV-CH120-60VMHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed60.2 fps @ 4096 × 3000 Mono 8
Lens mountC-mount
Mono / colourMono

$2,339.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-60VM 12MP Area Scan Camera, Dual USB3.0, Mono. Adopts dual USB 3.0 interfaces to transmit data. Adopts new hardware platform to optimize logical resource and reduce power consumption.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-60VM
Brand	Hikrobot
Compatibility	USB 3.0 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	60.2 fps @ 4096 × 3000 Mono 8
Dynamic range	75.7 dB
SNR	42.1 dB
Gain	High full well capacity: 0 dB to 21.5 dB; High sensitivity: 0 dB to 24 dB
Exposure time	20 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Mono/color	Mono

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB 3.0 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 3.5 W @ 5 VDC; (dual USB 3.0 interfaces provide power supply)

Mechanical

Lens mount	C-mount

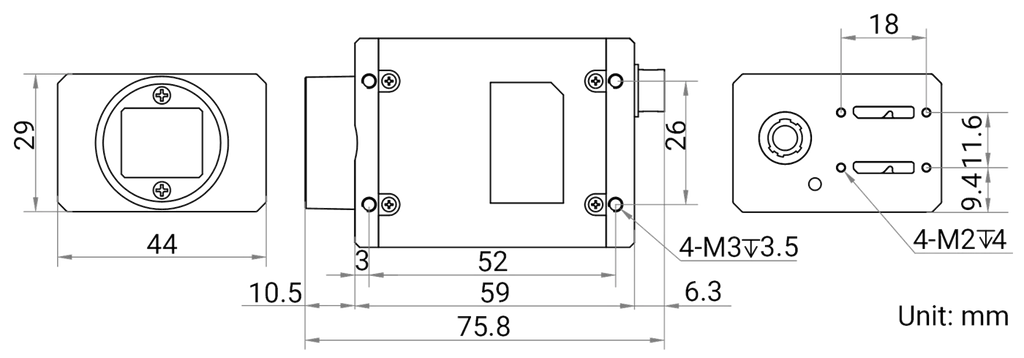

Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Adopts dual USB 3.0 interfaces to transmit data.
Adopts new hardware platform to optimize logical resource and reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, and Sequencer, etc.
Supports flexible installation with mounting holes on both top and bottom panels.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and the standard.
