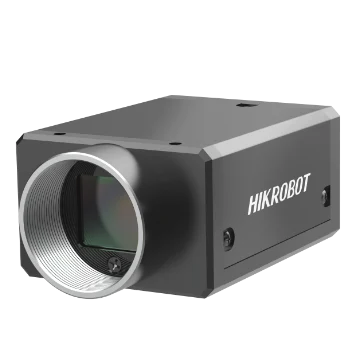

Hikrobot MV-CH250-90UC 25 MP USB 3.0 area scan camera, GMAX0505, Color, V4

Model MV-CH250-90UCHikrobot

Resolution5120 × 5120
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed14 fps @5120 × 5120 Bayer BG 8
Lens mountC-mount
Mono / colourColor

$2,949.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH250-90UC 25 MP USB 3.0 area scan camera, GMAX0505, Color, V4. Manual adjustment of gain, gamma correction, LUT and more Supports hardware trigger, software trigger and free-run modes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH250-90UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX0505
Pixel size	2.5 μm × 2.5 μm
Sensor size	1.1”
Resolution	5120 × 5120
Max. frame rate	14 fps @5120 × 5120 Bayer BG 8
Dynamic range	63 dB
SNR	36 dB
Gain	2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x
Exposure time	12 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer BG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10/11 32/64bits, Linux 32/64bits

Electrical

Power supply	12~24 VDC, USB power supported
Power consumption	3.6 W @ 5 VDC (USB 3.0 powered)

Mechanical

Lens mount	C-mount
Dimension	29 mm x 44 mm × 59 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Manual adjustment of gain, gamma correction, LUT and more
Supports hardware trigger, software trigger and free-run modes
Flexible mounting: holes on the top and bottom panels to choose from as needed
Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
