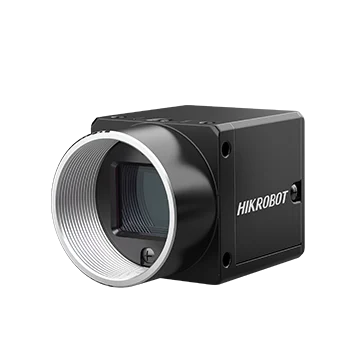

Hikrobot MV-CH120-20UC 12MP Area Scan Camera, USB3, XGS12000, Color, V4

Model MV-CH120-20UCHikrobot

Resolution4096 × 3072
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed28 fps @ 4096 × 3072 Bayer RG 8
Lens mountC-mount
Mono / colourColor

$2,359.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-20UC 12MP Area Scan Camera, USB3, XGS12000, Color, V4. Supports auto or manual adjustment for gain, exposure time, LUT and Gamma correction. Supports customized ROI, and horizontal and vertical reverse image output.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-20UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	OnSemi XGS12000
Pixel size	3.2 μm × 3.2 μm
Sensor size	1”
Resolution	4096 × 3072
Max. frame rate	28 fps @ 4096 × 3072 Bayer RG 8
Dynamic range	68 dB
SNR	40 dB
Gain	0 dB to 18 dB
Exposure time	UltraShort exposure mode: 52 μs to 161 μs; Standard exposure mode: 162 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB power supply
Power consumption	Typ. 3.2 W @ 5 VDC (USB 3.0 provides power supply)

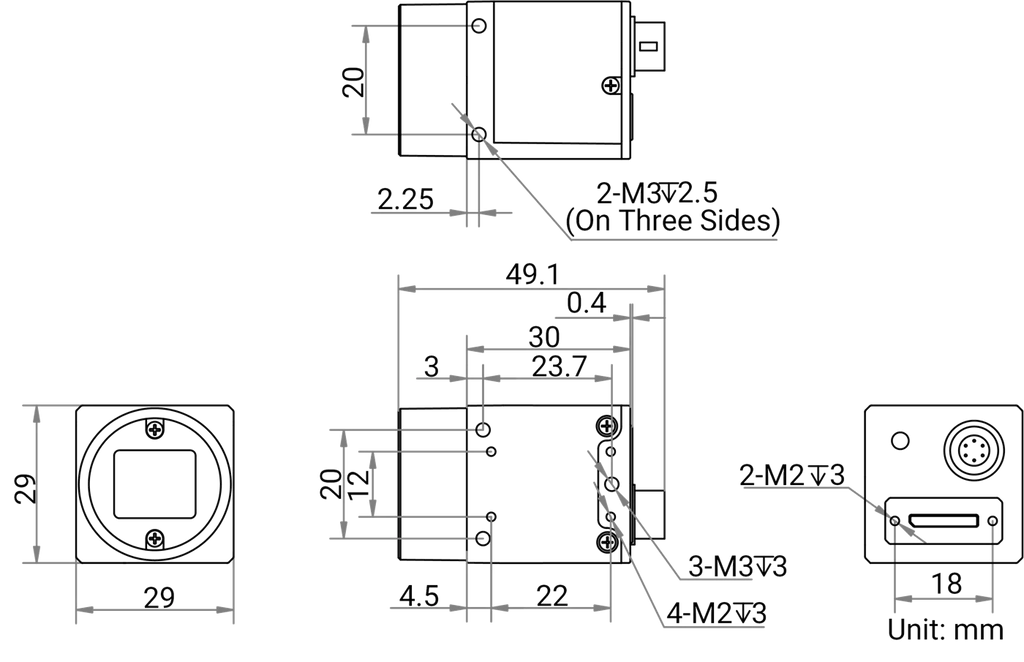

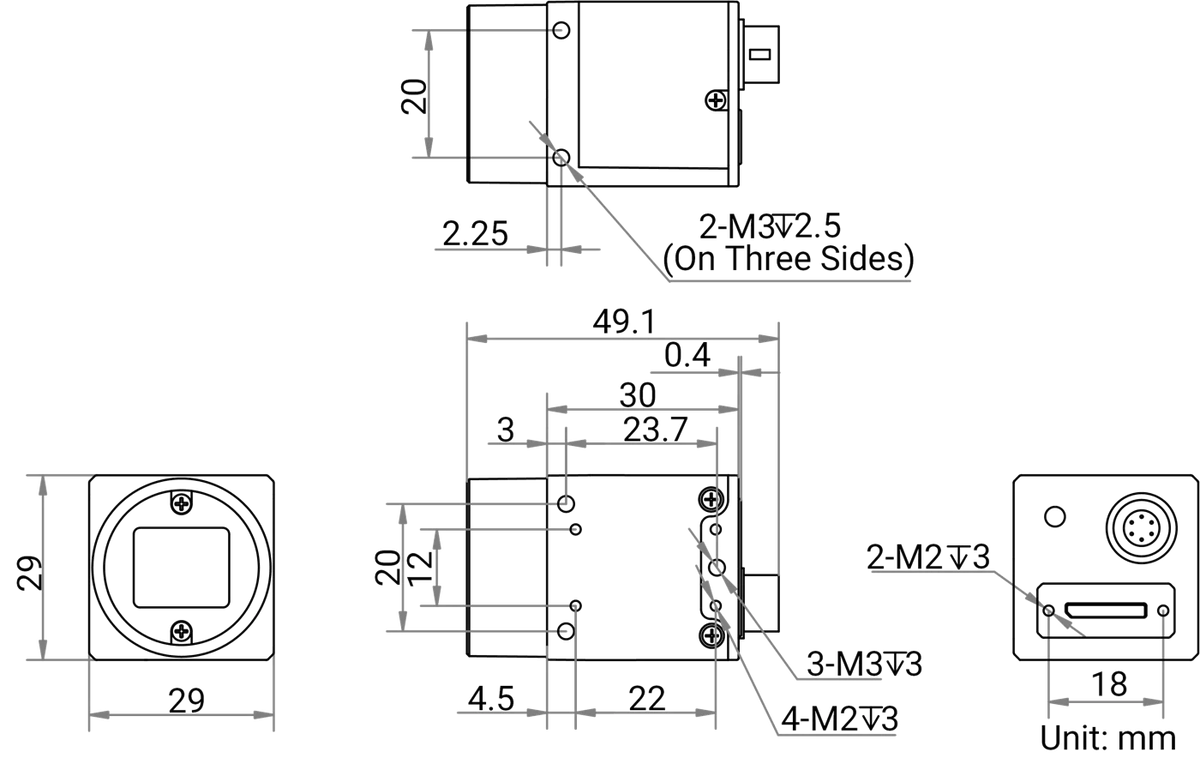

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Supports auto or manual adjustment for gain, exposure time, LUT and Gamma correction.
Supports customized ROI, and horizontal and vertical reverse image output.
Supports hardware trigger, software trigger and free run mode.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocols and standards.
