Area scan cameras

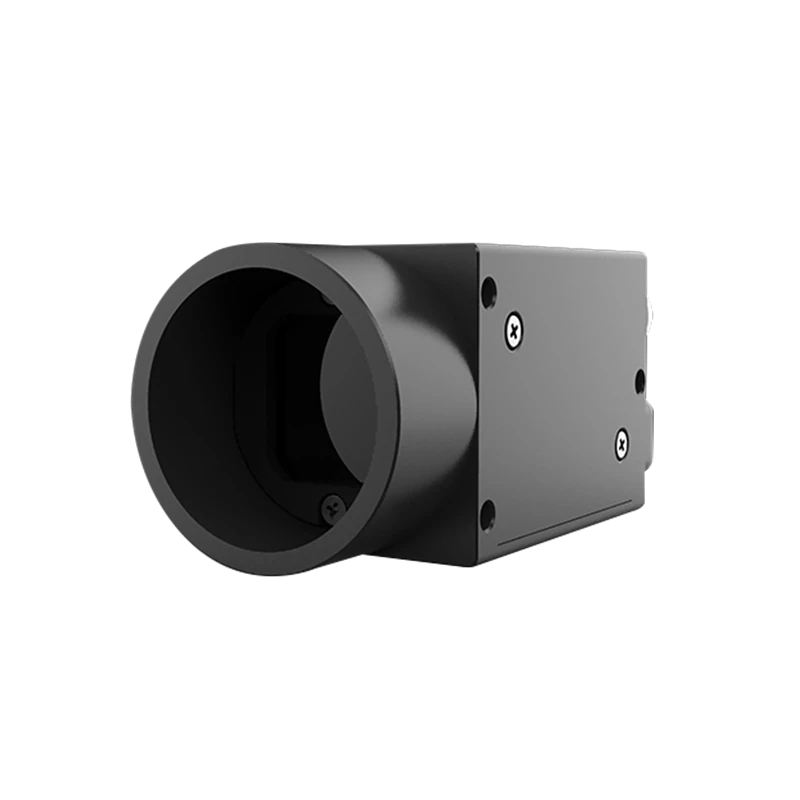

GigE area scan camera, LS-CMR-S25 series with CCD sensor
- 6 models
- from $209.00
- Series LS-CMR-S25
The GigE area scan camera, LS-CMR-S25 series with CCD sensor is a range of 6 area scan cameras from LumaSpec Vision, from $209.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, GigE, Color/Mono, 1.2 MP, GigE, Color/Mono, 1.9 MP, GigE, Color/Mono, 5.0 MP, GigE, Color/Mono
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3"
Features
- Unique packet retransmission technology to ensure reliable data transmission
- Built-in hardware accelerates image processing and reduces CPU utilization on the host side
- Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
- Pixels from 0.3MP to 65MP, CCD and CMOS are optional
- Excellent SDK design, as simple as using a USB camera, plug and play
- Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
- Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
- Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
Typical uses
- Electronic semiconductors
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
All 6 models in the GigE area scan camera, LS-CMR-S25 series with CCD sensor
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0366 | 1.9 MP, GigE, Color/Mono | 1600X1200@27FPS | 27.5 | 4.4X4.4μm | $209.00 | View |
| LS-CMR-0367 | 1.9 MP, GigE, Color/Mono | 27.5 | 4.4μm | $209.00 | View | |
| LS-CMR-0363 | 0.3 MP, GigE, Color/Mono | 640 x 480@164.75FPS | 164.75 | 7.4μm | $299.00 | View |
| LS-CMR-0365 | 1.2 MP, GigE, Color/Mono | 1280 x 960@43.5FPS | 43.5 | 3.75μm | $299.00 | View |
| LS-CMR-0364 | 0.3 MP, GigE, Color/Mono | 164.75 | 7.4μm | $299.00 | View | |
| LS-CMR-0368 | 5.0 MP, GigE, Color/Mono | 2448 x 2048@9.25FPS | 9.25 | 3.45μm | $509.00 | View |
