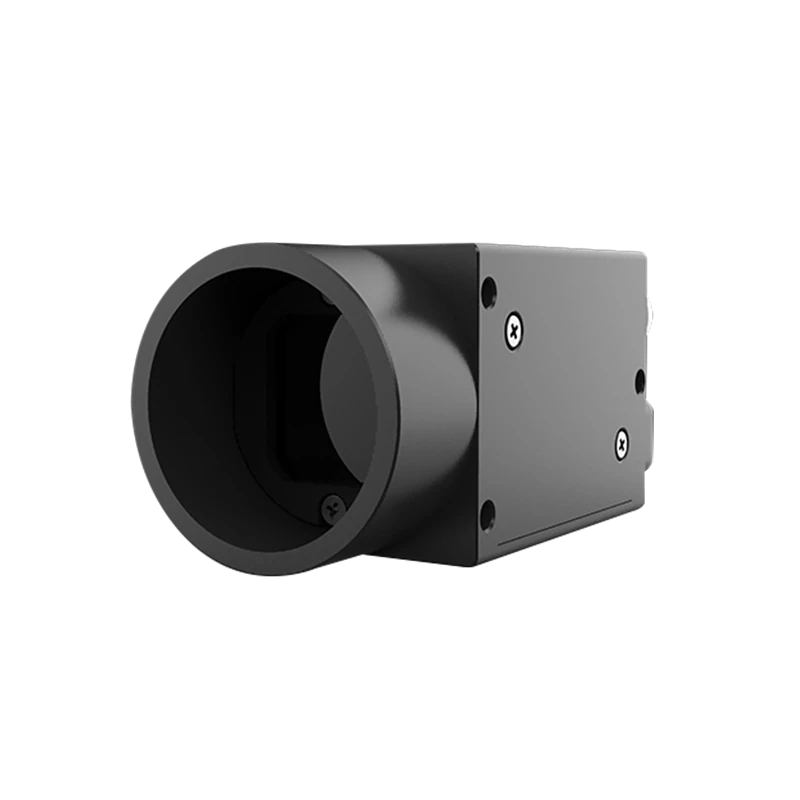

GigE area scan camera, LS-CMR-S25 series with CCD sensor, 1.9 MP, GigE, Color/Mono, 4.4X4.4μm pixels (LS-CMR-0366)
  • GigE area scan camera, LS-CMR-S25 series with CCD sensor, 1.9 MP, GigE, Color/Mono, 4.4X4.4μm pixels (LS-CMR-0366)
  • LS-CMR-0366 dimensions (mm)

Area scan cameras

GigE area scan camera, LS-CMR-S25 series with CCD sensor, 1.9 MP, GigE, Color/Mono, 4.4X4.4μm pixels (LS-CMR-0366)

Model LS-CMR-0366

  • Resolution1600 x 1200
  • SensorCCD
  • InterfaceGigE (RJ45 Gigabit Ethernet)
  • Speed1600X1200@27FPS
  • Lens mountC-mount
  • Pixel size4.4X4.4μm
$209.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

GigE area scan camera, LS-CMR-S25 series with CCD sensor, 1.9 MP, GigE, Color/Mono, 4.4X4.4μm pixels (LS-CMR-0366)LS-CMR-0366

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0366
Acquisition modeContinuous/soft trigger/hard trigger
User-defined data area2K Bytes
Vision standardGigE Vision V1.2, Genlcam
DriverDirectshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language packC/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functionsSupport any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Frame buffer128M Bytes
Suffix optionsOrder suffix (connector / PoE / lens mount): -T-CL threaded aviation connector, C-mount (recommended); -T-L threaded, CS-mount (made to order); -TPO-CL PoE, dual extended IO, threaded, C-mount (made to order); -T1-C push-fit aviation connector, C-mount (recommended); -T1P-C PoE, push-fit, C-mount (made to order); -T, -TPO, -TPO-C (being discontinued).
Sensitivity1100mV 1/30s,1650mV 1/30s
SynchronizationContinuous / software trigger / hardware trigger
FilterStandard 650nm Infrared Cut-off Filter/Standard double-sided AR-enhanced film
Camera custom data2K Bytes
Visual Standard ProtocoGigE Vision V1.2, GenICam
Support SystemWINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
DriversDirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Pregramming LanguageC / C++ / C# / VB6 / VB.NET / Delphi / BCB / Python
Programmable ControlImage size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color.trigger mode, frame rate control

Sensor and imaging

Sensor1/1.8" CCD , SHARP
ShutterGlobal
Pixel size4.4X4.4μm
Effective pixels2MP(1600X1200)
Resolution @ frame rate1600X1200@27FPS
Pixel bit depth12bit
Maximum gain32
Exposure time (ms)0.0002~36923
Sensor typeCCD
Shutter methodGlobal
Max resolution1600 x 1200
Frame rate (FPS)27.5
Min exposure0.0001ms
Sensor modelSHARP
Resolution@frame rateColor: 1600 x 1200@15.25FPS; Mono: 1600 x 1200@27.5FPS
Maximum gain (multiple)32
Exposure time range (ms)Color: 0.0001~48000; Mono: 0.001~24000

Interfaces and I/O

InterfaceGigE (RJ45 Gigabit Ethernet)
Data interfaceRJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
I/O port1 optical input, 1 optical output; 3 input 4 output
Video output formatBayer8/Bayer12,Mono8/Mono12
GPIO1 optical isolation input, 1 optical isolation output; optional 3 inputs and 4 outputs

Light

ColorColor/Mono
Mono / colourColor/Mono

Environment and compliance

Working temperature @ humidity0~50°C @ 20%~80% (no condensation)
Storage temperature @ humidity-30~60°C @ 20%~95% (no condensation)
Working temperature0 ~ 5 0 ° C
Working humidity20-80% (Non-condensing)
Storage temperature-30-60 ° C
Storage humidity20-95% (Non-condensing)

Computing

Operating systemWIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

Electrical

Power supply12~24V/POE, 48~57V (POE is optional)
Power<2.5W
Power Requirements9~24V(POE is optional)
Power consumption< 2 . 5 W
Voltage12~24V/POE, 48~57V (POE is optional)

Mechanical

Lens mountC/CS-Mount, Adapter Ring Provided
Dimensions29 x 29 x 40 mm (without lens mount and rear shell interface)
Weight<75g
Target size1/1.8"
