Area scan cameras

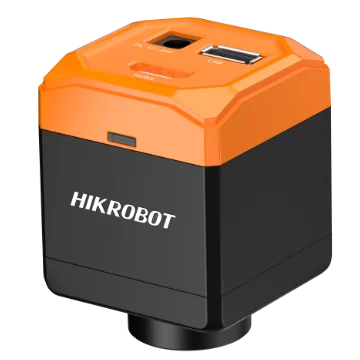

HDMI Microscope Cameras
- 4 models
- from $659.00
- Series HIK-HDMI-MICROSCOPE-CAMERAS
The HDMI Microscope Cameras is a range of 4 area scan cameras from Hikrobot, from $659.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2.1 MP, 1/2", HDMI, Color, 3.7 MP, 1/1.88", HDMI, Color, 12.4 MP, 1/1.56", HDMI, Color
- Interface
- HDMI
- Resolution
- Up to 3 MP, 5 MP, 12 MP
- Shutter
- Rolling
- Colour
- Color
- Lens mount
- C-mount
- Sensor format
- 1/2", 1/1.8" - 1/1.56"
Features
- Supports 2 MP high-quality image and 60 fps frame rate.
- Provides HDMI interface to connect to a monitor directly.
- Provides USB 2.0 interface to connect to a mouse.
- Supports cross line on the image, and horizontal and vertical reverse image output.
- Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.
- Supports 4 MP high-quality image and 30 fps frame rate.
- Provides USB interface to connect to a mouse or a USB flash disk.
- Provides USB 3.0 interface to connect to the PC for operation on the client software.
All 4 models in the HDMI Microscope Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CM2020C-0H | 2.1 MP, 1/2", HDMI, Color | 1920 × 1080 | 60 fps | 1/2" | $659.00 | View |
| MV-CM3040C-1H | 3.7 MP, 1/1.88", HDMI, Color | 2560 × 1440 | 30 fps | 1/1.88" | $879.00 | View |
| MV-CM3040C-1H(MSD) | 3.7 MP, 1/1.88", HDMI, Color | 2560 × 1440 | 30 fps | 1/1.88" | $879.00 | View |
| MV-CM3120C-1H | 12.4 MP, 1/1.56", HDMI, Color | 4096 × 3024 | 30 fps | 1/1.56" | $1,609.00 | View |
