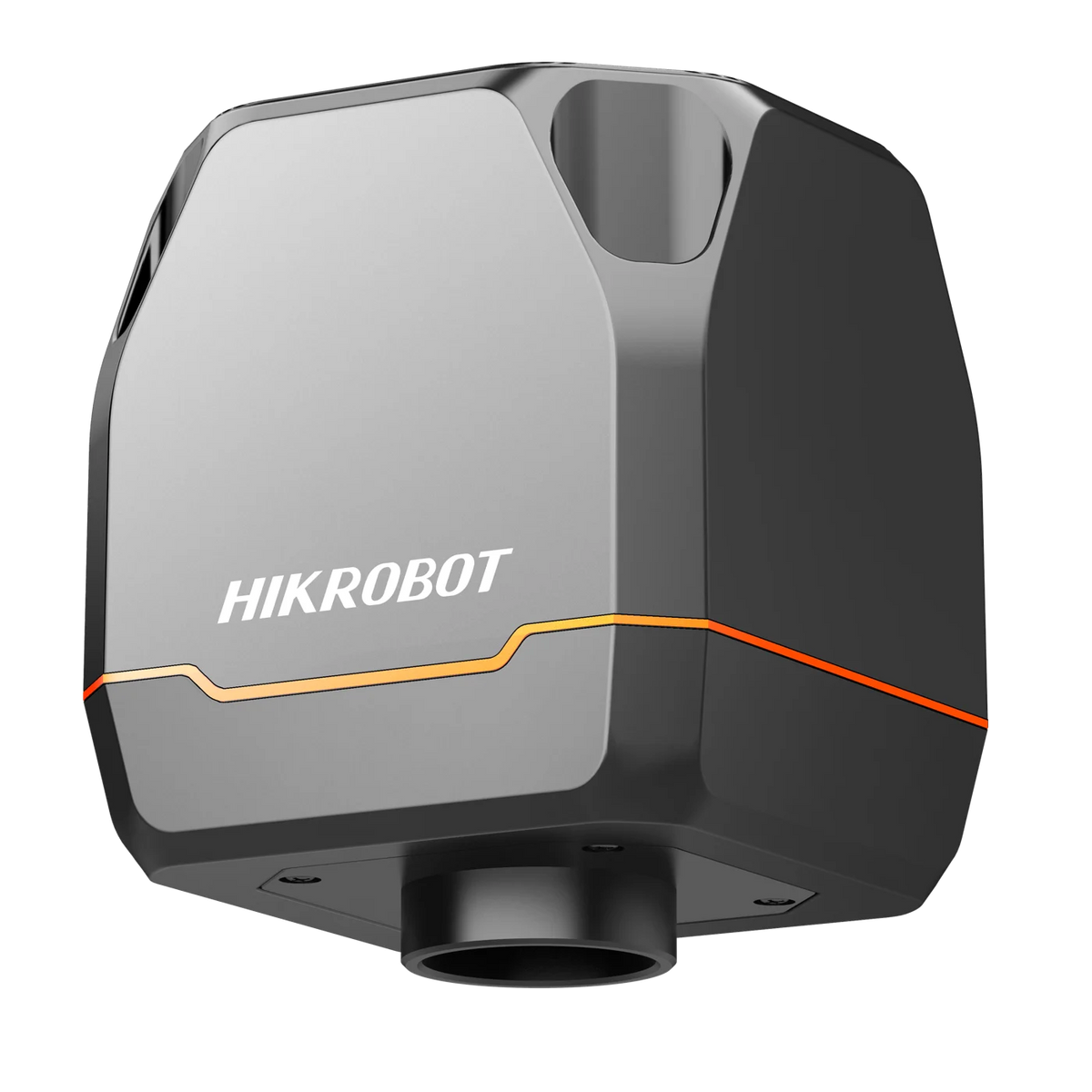

Hikrobot MV-CM3040C-1H 4MP HDMI Camera with Measurement
Model MV-CM3040C-1HHikrobot
- Resolution2560 × 1440
- SensorCMOS, rolling shutter
- Speed30 fps
- Lens mountC-mount
- Mono / colourColor
- Pixel size2.9 μm × 2.9 μm
$879.00
Ships in 2-3 weeks
0.7 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CM3040C-1H 4MP HDMI Camera with Measurement. Supports 4 MP high-quality image and 30 fps frame rate. Provides HDMI interface to connect to a monitor directly.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CM3040C-1H |
|---|---|
| Brand | Hikrobot |
| Vision tool | Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction.; Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage.; Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement. |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Pixel size | 2.9 μm × 2.9 μm |
| Sensor size | 1/1.88" |
| Resolution | 2560 × 1440 |
| Max. frame rate | 30 fps |
| Gain | 0 dB to 18 dB |
| Exposure time | 300 μs to 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
Interfaces and I/O
| Transmission interface | HDMI |
|---|---|
| Control interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Console interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
Electrical
| Power supply | 12 VDC to 24 VDC, independent power supply required |
|---|---|
| Power consumption | Typ. 3.6 W @ 12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

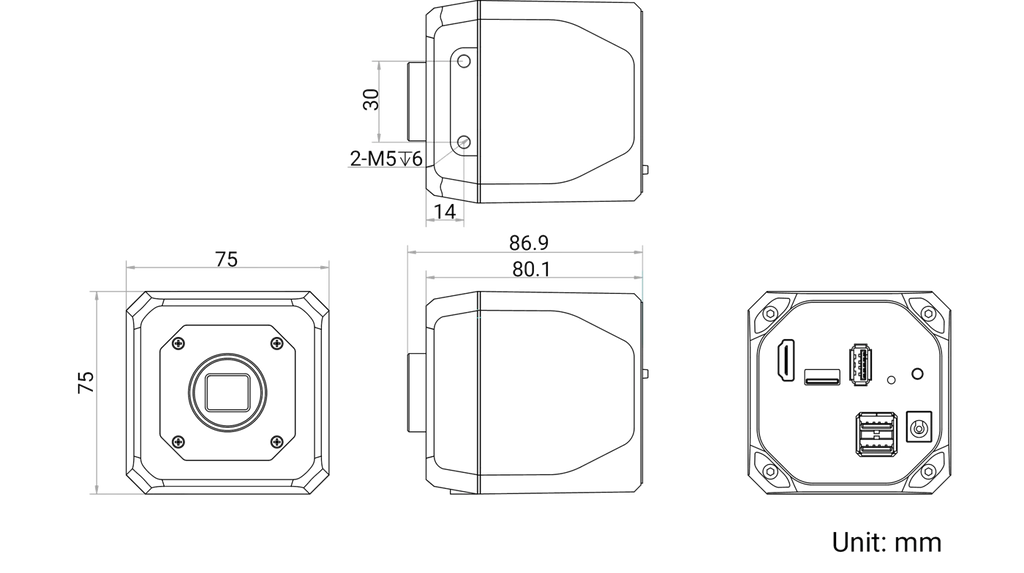

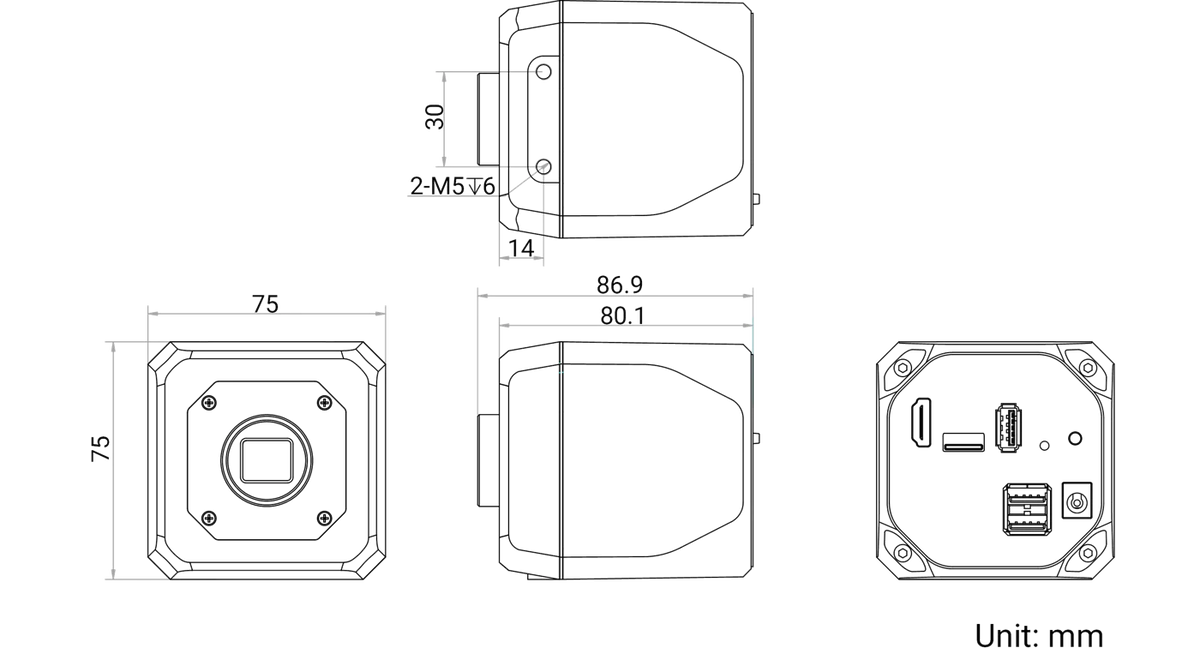

| Dimension | 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") |
| Weight | Approx. 430 g (0.9 lb.) |
| Shipping weight (estimated) | 0.70 kg |
