Area scan cameras

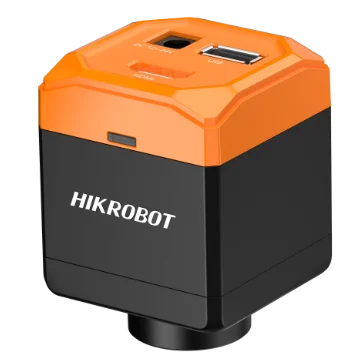

Hikrobot MV-CM2020C-0H 2MP HDMI Camera

Model MV-CM2020C-0HHikrobot

Resolution1920 × 1080
SensorCMOS, rolling shutter
Speed60 fps
Lens mountC-mount
Mono / colourColor
Pixel size3.75 μm × 3.75 μm

$659.00

Ships in 2-3 weeks

0.41 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CM2020C-0H 2MP HDMI Camera. Supports 2 MP high-quality image and 60 fps frame rate. Provides HDMI interface to connect to a monitor directly.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CM2020C-0H
Brand	Hikrobot

Sensor and imaging

Sensor type	CMOS, rolling shutter
Pixel size	3.75 μm × 3.75 μm
Sensor size	1/2"
Resolution	1920 × 1080
Max. frame rate	60 fps
Gain	0 dB to 42 dB
Exposure time	300 μs to 100 ms
Mono/color	Color
Exposure mode	Auto/manual
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Transmission interface	HDMI
Control interface	USB 2.0
Console interface	USB 2.0

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS

Electrical

Power supply	12 VDC to 24 VDC, independent power supply required
Power	Typ. 1.9 W @ 12 VDC
Power consumption	Typ. 1.9 W @ 12 VDC

Mechanical

Lens mount	C-mount

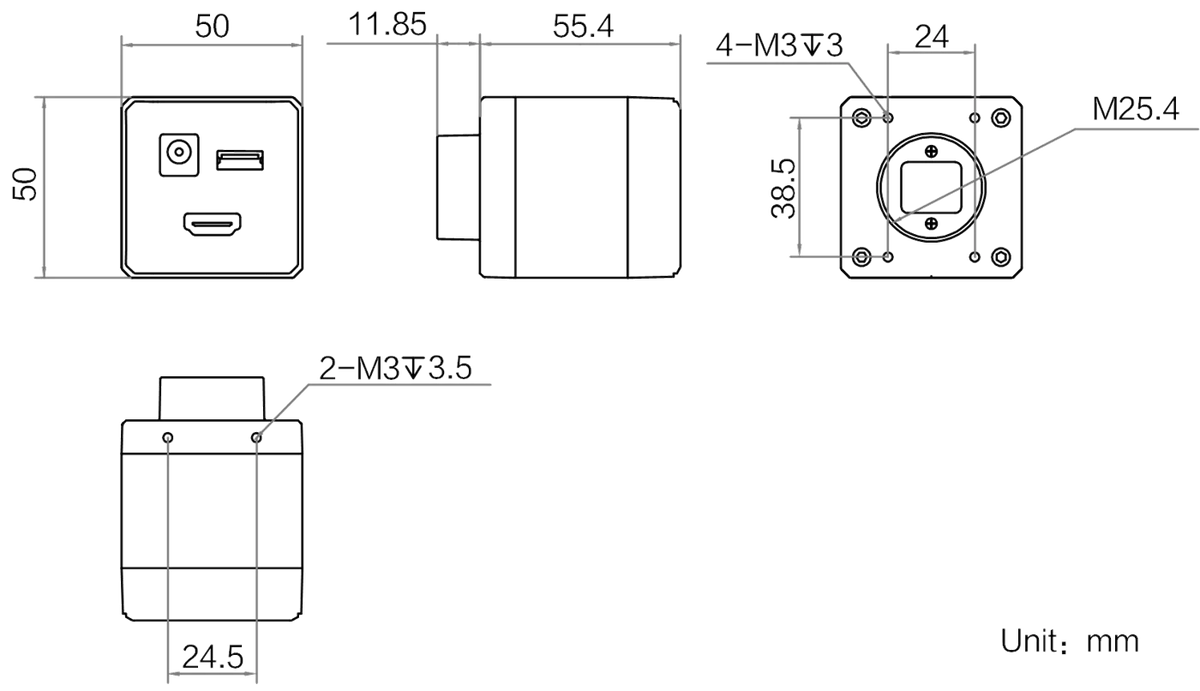

Dimension	50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2")
Weight	220 g (0.5 lb.)
Shipping weight (estimated)	0.41 kg

Downloads

Features

Supports 2 MP high-quality image and 60 fps frame rate.
Provides HDMI interface to connect to a monitor directly.
Provides USB 2.0 interface to connect to a mouse.
Supports cross line on the image, and horizontal and vertical reverse image output.
Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.
