Area scan cameras

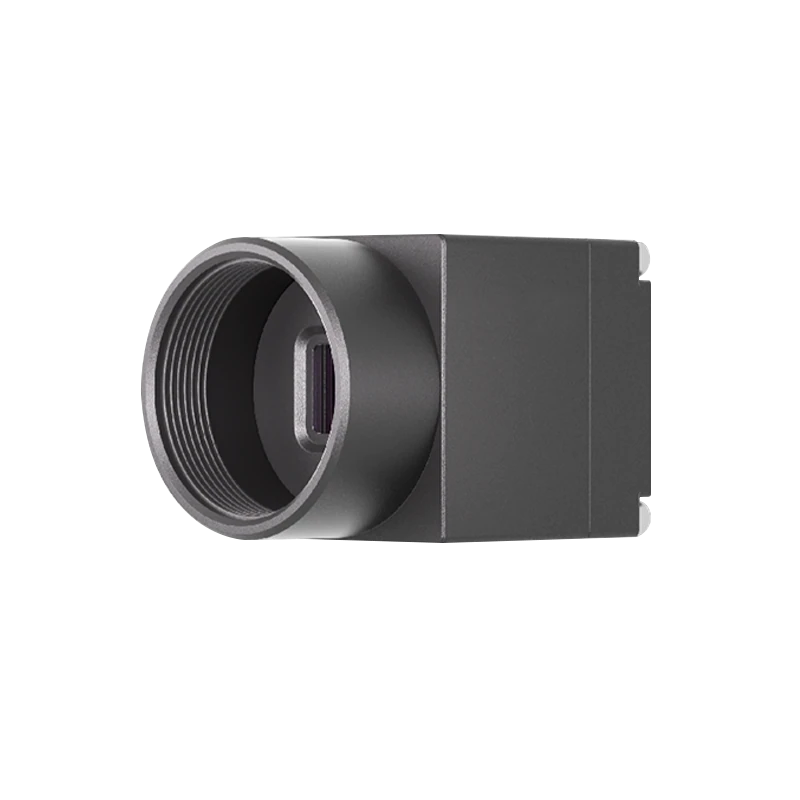

USB3.0 area scan camera (LS-CMR-S36)
- 17 models
- from $179.00
- Series LS-CMR-S36
The USB3.0 area scan camera (LS-CMR-S36) is a range of 17 area scan cameras from LumaSpec Vision, from $179.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, USB3, Color, 0.3 MP, USB3, Color/Mono, 0.3 MP, USB3, Mono, 1.3 MP, USB3, Color/Mono, 1.6 MP, USB3, Color/Mono, 2.3 MP, USB3, Color/Mono, 2.5 MP, USB3, Color/Mono, 5.0 MP, USB3, Color/Mono, 5.0 MP, USB3, Mono, 6.3 MP, USB3, Color/Mono, 8.3 MP, USB3, Color, 12 MP, USB3, Color/Mono, 13 MP, USB3, Color, 13 MP, USB3, Color/Mono, 13 MP, USB3, Mono, 20 MP, USB3, Color/Mono
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1/1.2", 1", 1.1" - 1.2"
- Colour
- Color, Mono
Features
- Ultra-small size,industry-universal fixing holes.
- Low power consumption,strong stability.
- Built-in large-capacity image cache to ensure reliable and real-time transmission.
- Third party visual development software,based on USB3.0 Vision,GenICam development.
- Camera hardware graphics accelerator implements image preprocessing.
- Dimensions: 29mm×29mm×29mm.
All 17 models in the USB3.0 area scan camera (LS-CMR-S36)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0475 | 2.5 MP, USB3, Color/Mono | 2048*1200 | 170FPS | 4.0 μm | $179.00 | View |
| LS-CMR-0469 | 0.3 MP, USB3, Color/Mono | 640*480 | 721FPS | 4.0 μm | $219.00 | View |
| LS-CMR-0470 | 0.3 MP, USB3, Mono | 640*480 | 721FPS | 4.0 μm | $219.00 | View |
| LS-CMR-0468 | 0.3 MP, USB3, Color | 640 × 480 | 4.0 μm×4.0 μm | $219.00 | View | |
| LS-CMR-0476 | 5.0 MP, USB3, Mono | 2592*1944 | 31FPS | 2.2 μm | $239.00 | View |
| LS-CMR-0478 | 6.3 MP, USB3, Color/Mono | 3072*2048 | 71FPS | 2.4 μm | $269.00 | View |
| LS-CMR-0479 | 8.3 MP, USB3, Color | 3840*2160 | 50.6FPS | 2.0 μm | $269.00 | View |
| LS-CMR-0471 | 1.3 MP, USB3, Color/Mono | 1280*1024 | 213FPS | 4.0 μm | $359.00 | View |
| LS-CMR-0472 | 1.3 MP, USB3, Color/Mono | 1280*1024 | 257FPS | 4.0 μm | $359.00 | View |
| LS-CMR-0480 | 12 MP, USB3, Color/Mono | 4000*3000 | 35.9FPS | 1.85 μm | $379.00 | View |
| LS-CMR-0473 | 1.6 MP, USB3, Color/Mono | 1480*1092 | 240FPS | 4.0 μm | $389.00 | View |
| LS-CMR-0474 | 2.3 MP, USB3, Color/Mono | 1920*1200 | 40FPS | 5.86 μm | $469.00 | View |
| LS-CMR-0484 | 20 MP, USB3, Color/Mono | 5480*3648 | 22FPS | 2.4 μm | $569.00 | View |
| LS-CMR-0477 | 5.0 MP, USB3, Color/Mono | 2448*2048 | 85FPS | 3.4 μm | $689.00 | View |
| LS-CMR-0481 | 13 MP, USB3, Color/Mono | 4096*3072 | 31FPS | 3.2 μm | $1,769.00 | View |
| LS-CMR-0482 | 13 MP, USB3, Color | 4096*3072 | 31.9FPS | 3.4 μm | $1,769.00 | View |
| LS-CMR-0483 | 13 MP, USB3, Mono | 4096*3072 | 31.9FPS | 3.4 μm | $1,769.00 | View |
